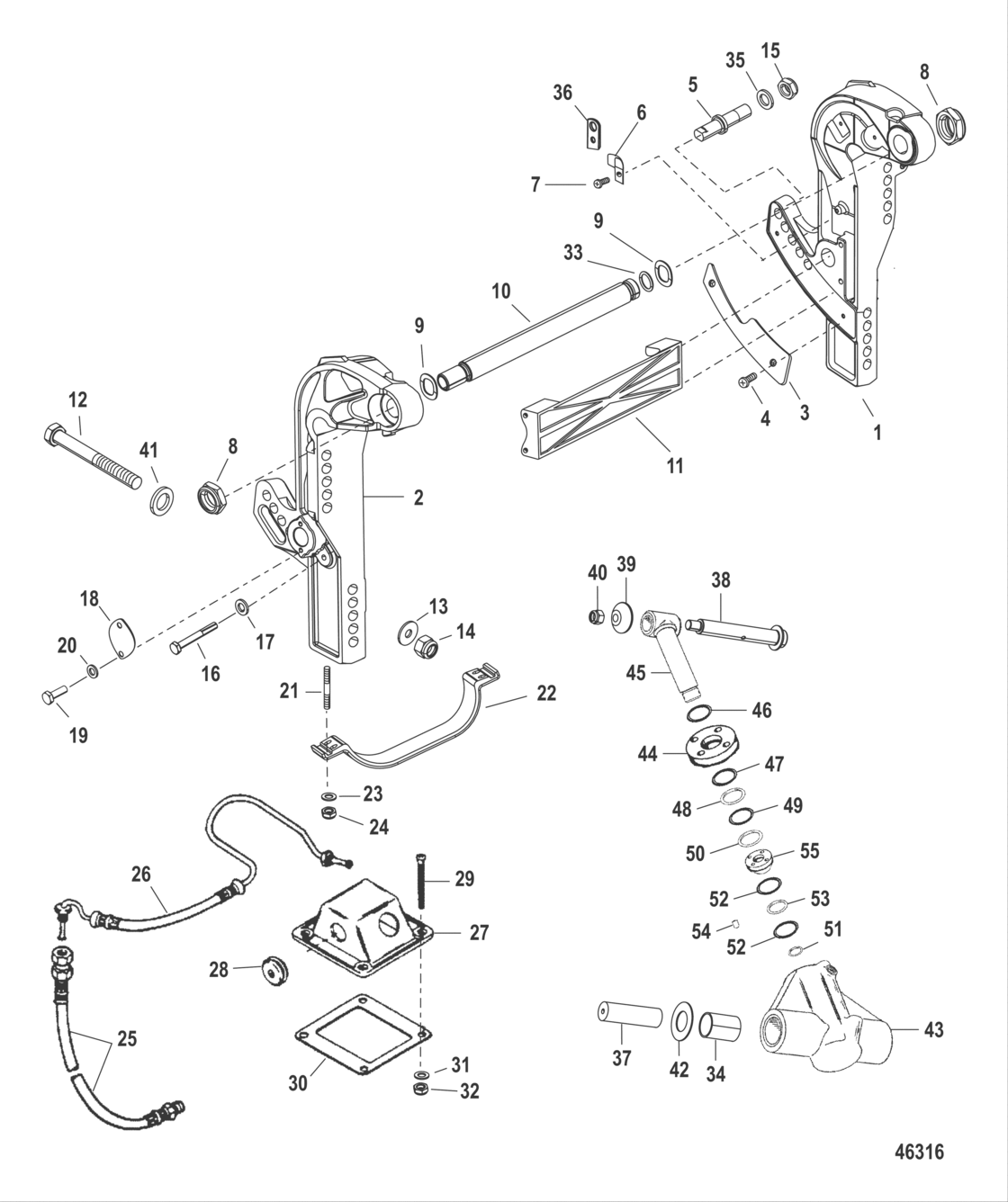

Transom Brackets (Short) Diagram Mercury-Mercruiser D200 OptiMax
- Engine Capacity
- 2.5
- Power
- 200
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 1E050852 & Up
- Серия
- XS ROS
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
847800A03 Bracket assembly, transom - port |
847800A03 |
US $1,726.78 |
||
|
2
|
2
847801A03 Bracket assembly, transom - starboard |
847801A03 |
US $1,861.36 |
||
|
3
|
3
847798A02 New Genuine Part |
847798A02 |
US $218 |
||
|
4
|
4
86843 Scxrew |
86843 |
US $0.82 |
||
|
5
|
5
8M0034469 Stud |
8M0034469 |
US $33.90 |
||
|
6
|
6
88512 Clamp |
88512 |
US $6.50 |
||
|
7
|
7
88829 Screw |
88829 |
US $3.01 |
||
|
8
|
8
858869 Nut |
858869 |
US $5.10 |
||
|
8
|
8
NLA
No Longer Available Old Design
|
NLA |
— | ||
|
9
|
9
88750 Wave washer, tilt tube |
88750 |
US $5.92 |
||
|
10
|
10
826125A1 New Genuine Part |
826125A1 |
US $289.78 |
||
|
11
|
11
85035T New Genuine Part |
85035T |
US $226.34 |
||
|
12
|
12
677551 Screw |
677551 |
US $15.89 |
||
|
12
|
12
677552 Screw |
677552 |
US $29.92 |
||
|
13
|
13
28421 Washer, stainless steel, transom plate screw |
28421 |
US $4.03 |
||
|
14
|
14
82671117 Nut |
82671117 |
US $7.78 |
||
|
15
|
15
826709117 Nut, stainless steel |
826709117 |
US $9.39 |
||
|
16
|
16
70732 Screw, crankcase to cylinder block |
70732 |
US $3.36 |
||
|
17
|
17
29245 Washer, stainless steel, water pump body stud |
29245 |
US $1.28 |
||
|
18
|
18
85026T New Genuine Part |
85026T |
US $50.22 |
||
|
19
|
19
28636 Scerw, cover |
28636 |
US $2.09 |
||
|
20
|
20
29245 Washer, stainless steel, water pump body stud |
29245 |
US $1.28 |
||
|
21
|
21
54343 Stud, carburetor mounting |
54343 |
US $44 |
||
| replacement | |||||
|
21
|
21
8M0034451 STUD |
8M0034451 |
US $44 |
||
|
22
|
22
89949A1 New Genuine Part |
89949A1 |
US $91.66 |
||
|
23
|
23
843108 Washer |
843108 |
US $0.82 |
||
|
24
|
24
82670911 Nut, stainless steel |
82670911 |
US $4.40 |
||
|
25
|
25
89024 Hydraulic hose |
89024 |
US $173.66 |
||
|
25
|
25
89023 Hydraulic hose |
89023 |
US $173.66 |
||
|
26
|
26
96993 Hydraulic hose |
96993 |
US $284.56 |
||
|
26
|
26
96994 Hydraulic hose |
96994 |
US $318.56 |
||
|
27
|
27
87871T New Genuine Part |
87871T |
US $33.44 |
||
|
28
|
28
45507 Grommet, rubber - inlet cover |
45507 |
US $3.94 |
||
|
29
|
29
32866 Screw, inlet cover to boat |
32866 |
US $2.78 |
||
|
30
|
30
87775 Gasket, inlet cover |
87775 |
US $9.39 |
||
|
31
|
31
20878 Washer, oil pressure switch |
20878 |
US $1.28 |
||
|
32
|
32
826709106 Nut, stainless steel |
826709106 |
US $4.06 |
||
|
33
|
33
45711 O-ring, , valve cover |
45711 |
US $1.62 |
||
|
34
|
34
847724 Bushing |
847724 |
US $39.65 |
||
|
35
|
35
54012 Washer, bell housing stud |
54012 |
US $3.01 |
||
|
36
|
36
75275 Clamp |
75275 |
US $18.08 |
||
|
37
|
37
85020T Pin Pivot |
85020T |
US $68.45 |
||
|
38
|
38
847796 New Genuine Part |
847796 |
US $212.18 |
||
|
39
|
39
847797 New Genuine Part |
847797 |
US $64.56 |
||
|
40
|
40
82671317 Nut |
82671317 |
US $3.36 |
||
|
41
|
41
54012 Washer, bell housing stud |
54012 |
US $3.01 |
||
|
42
|
42
85022 Washer |
85022 |
US $5.57 |
||
|
43
|
43
8M0050911 Trim Cylinder Assembly |
8M0050911 |
US $2,145.42 |
||
|
44
|
44
44123 New Genuine Part |
44123 |
US $103.90 |
||
|
45
|
45
8185163 New Genuine Part |
8185163 |
US $771.73 |
||
|
46
|
46
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
47
|
47
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
48
|
48
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
49
|
49
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
50
|
50
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
51
|
51
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
52
|
52
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
53
|
53
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
54
|
54
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
55
|
55
44125 New Genuine Part |
44125 |
US $305.33 |
||
|
NI
|
NI
11163A1 Repair Kit Trim Cylinder |
11163A1 |
US $43.98 |
||
