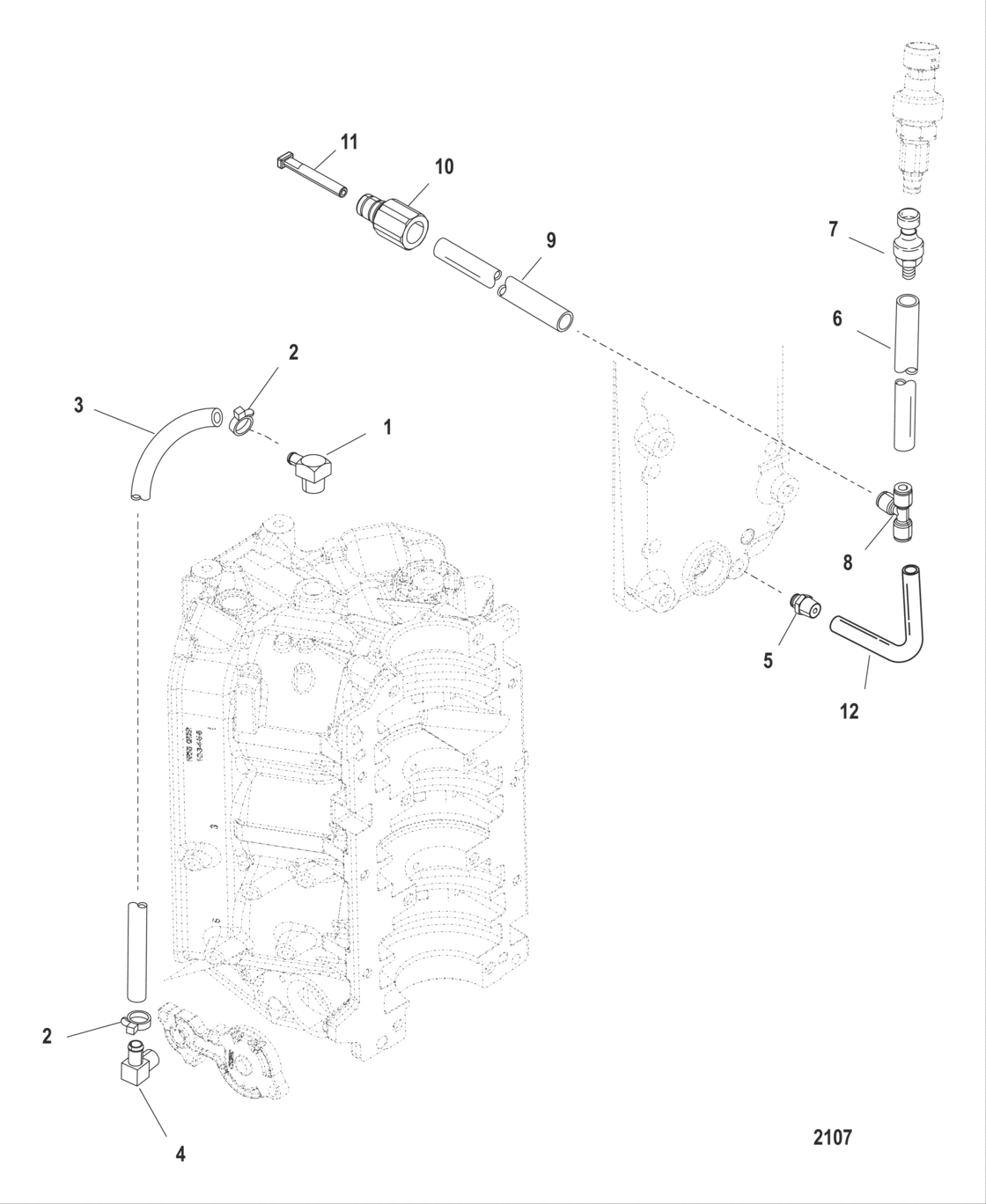

Water Hoses Diagram Mercury-Mercruiser E150
- Engine Capacity
- 2.5
- Power
- 150
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0T409000 THRU 0T800999
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
850805 Fitting |
850805 |
US $17.04 |
||
|
2
|
2
816311T Tie Strap (8.00 Inches) |
816311T |
US $0.51 |
||
|
3
|
3
77653101 Hose |
77653101 |
US $63.44 |
||
|
4
|
4
687271 Fitting, 90 degree - brass |
687271 |
US $41.70 |
||
|
5
|
5
859432 Fitting |
859432 |
US $6.72 |
||
| replacement | |||||
|
5
|
5
881866 Fitting |
881866 |
US $6.72 |
||
|
6
|
6
85978568 Tubing, |
85978568 |
US $53.68 |
||
| replacement | |||||
|
6
|
6
85978571 Tubing, |
85978571 |
US $53.68 |
||
|
7
|
7
859431 Fitting |
859431 |
US $16.46 |
||
| replacement | |||||
|
7
|
7
892403 Fitting |
892403 |
US $16.46 |
||
|
8
|
8
875207 Tee, fitting |
875207 |
US $13.46 |
||
|
9
|
9
85978568 Tubing, |
85978568 |
US $53.68 |
||
| replacement | |||||
|
9
|
9
85978571 Tubing, |
85978571 |
US $53.68 |
||
|
10
|
10
859747 Coupler |
859747 |
US $10.21 |
||
|
11
|
11
859732 Plug |
859732 |
US $1.50 |
||
|
12
|
12
85978568 Tubing, |
85978568 |
US $53.68 |
||
| replacement | |||||
|
12
|
12
85978571 Tubing, |
85978571 |
US $53.68 |
||
|
NI
|
NI
883511T02 New Genuine Part(150) |
883511T02 |
US $10,331.42 |
||
| replacement | |||||
|
NI
|
NI
883511T04 New Genuine Part(150) |
883511T04 |
US $10,331.42 |
||
|
NI
|
NI
883600T02 New Genuine Part(175/200) |
883600T02 |
US $10,400 |
||
| replacement | |||||
|
NI
|
NI
883600T04 New Genuine Part(175/200) |
883600T04 |
US $10,400 |
||
