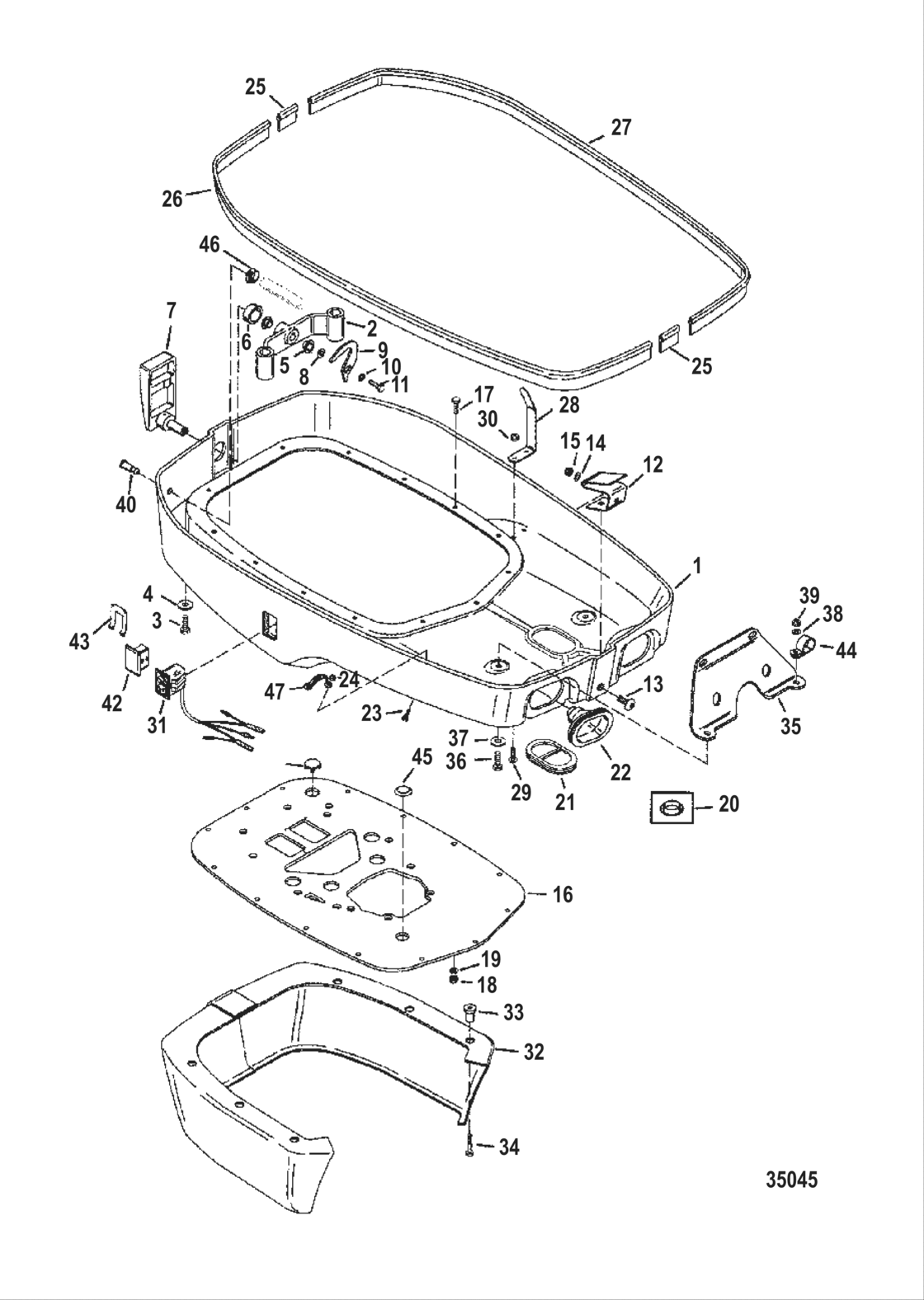

Bottom Cowl Diagram Mercury-Mercruiser E2.5
- Year
- 2.5
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 0G610239 THRU 0G856999
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
849477A1
Bottom Pan
(BLACK) |
849477A1 |
— | ||
| replacement | |||||
|
1
|
1
849477T1
Bottom Pan
(BLACK) |
849477T1 |
— | ||
|
1
|
1
849477A2
Bottom Pan
(GRAY) |
849477A2 |
— | ||
|
2
|
2
848810 New Genuine Part |
848810 |
US $178.22 |
||
|
3
|
3
28782 Screw, stainless steel |
28782 |
US $2.54 |
||
|
4
|
4
814806 Washer, stainless steel |
814806 |
US $1.62 |
||
|
5
|
5
812707 Bushing |
812707 |
US $7.31 |
||
|
6
|
6
848985 New Genuine Part |
848985 |
US $6.64 |
||
|
7
|
7
848815A1 New Genuine Part(BLACK) |
848815A1 |
US $209.95 |
||
| replacement | |||||
|
7
|
7
848815T1 Handle black(BLACK) |
848815T1 |
US $209.95 |
||
|
7
|
7
848816A1
New Genuine Part
(GRAY) |
848816A1 |
— | ||
|
8
|
8
F2047 Washer Wave |
F2047 |
US $1.50 |
||
|
9
|
9
F481777 New Genuine Part |
F481777 |
US $41.10 |
||
| replacement | |||||
|
9
|
9
8M0001081 New Genuine Part |
8M0001081 |
US $41.10 |
||
|
10
|
10
4002316
Washer
|
4002316 |
— | ||
|
11
|
11
28635 Screw, stainless steel, water tube sealing cover to gimbal housing |
28635 |
US $1.62 |
||
|
12
|
12
848812 New Genuine Part |
848812 |
US $49.98 |
||
|
13
|
13
849011 Screw (.250-20 X .750) |
849011 |
US $4.69 |
||
|
14
|
14
29245 Washer, stainless steel, water pump body stud |
29245 |
US $1.28 |
||
|
15
|
15
56374 Nut, starter motor stud |
56374 |
US $5.92 |
||
| replacement | |||||
|
15
|
15
8267098 Nut, stainless steel |
8267098 |
US $5.92 |
||
|
16
|
16
849480 Plate-cowl base |
849480 |
US $403.38 |
||
| replacement | |||||
|
16
|
16
849480T Plate-cowl base |
849480T |
US $403.38 |
||
|
17
|
17
38601 Screw, solenoid bottom cowl |
38601 |
US $1.62 |
||
|
18
|
18
35045 Nut |
35045 |
US $3.01 |
||
| replacement | |||||
|
18
|
18
826709109 Nut, stainless steel |
826709109 |
US $3.71 |
||
|
19
|
19
29245 Washer, stainless steel, water pump body stud |
29245 |
US $1.28 |
||
|
20
|
20
815784 Cap, plug |
815784 |
US $1.62 |
||
|
21
|
21
849750 Grommet |
849750 |
US $54.58 |
||
|
22
|
22
8177133 Grommet |
8177133 |
US $34.82 |
||
|
23
|
23
69020 Screw, chok cable to carburetor |
69020 |
US $2.43 |
||
| replacement | |||||
|
23
|
23
690201 Screw |
690201 |
US $2.43 |
||
|
24
|
24
29488 Nut, mounting bracket to hydraulic pump |
29488 |
US $4.06 |
||
| replacement | |||||
|
24
|
24
826709106 Nut, stainless steel |
826709106 |
US $4.06 |
||
|
25
|
25
848994
Nla ord 849767a 1
|
848994 |
— | ||
|
26
|
26
848995
Nla ord 849767a 1
|
848995 |
— | ||
|
27
|
27
848996 New Genuine Part |
848996 |
US $182.35 |
||
| replacement | |||||
|
27
|
27
849767A1 New Genuine Part |
849767A1 |
US $182.35 |
||
|
28
|
28
849619 Brace-pan |
849619 |
US $36.42 |
||
| replacement | |||||
|
28
|
28
8496191 New Genuine Part |
8496191 |
US $36.42 |
||
|
29
|
29
849011 Screw (.250-20 X .750) |
849011 |
US $4.69 |
||
|
30
|
30
56374 Nut, starter motor stud |
56374 |
US $5.92 |
||
| replacement | |||||
|
30
|
30
8267098 Nut, stainless steel |
8267098 |
US $5.92 |
||
|
31
|
31
850691 Switch assembly(NON-OFFSHORE) |
850691 |
US $116.56 |
||
| replacement | |||||
|
31
|
31
8M0042301 SWITCH-TRIM(NON-OFFSHORE) |
8M0042301 |
US $116.56 |
||
|
32
|
32
849534A1 Skirt(BLACK) |
849534A1 |
US $1,005.70 |
||
|
32
|
32
849534A2
Skirt
(GRAY) |
849534A2 |
— | ||
|
33
|
33
849000 Nut |
849000 |
US $6.27 |
||
|
34
|
34
F2030 Screw (.250-20 X 1.250) Stainless Steel |
F2030 |
US $3.01 |
||
|
35
|
35
849582 Brace-pan |
849582 |
US $135.02 |
||
|
36
|
36
69028 Screw, starter solenoid to mounting bracket |
69028 |
US $2.43 |
||
|
37
|
37
35462 Washer, shift cable stud |
35462 |
US $1.62 |
||
|
38
|
38
35280 Washer, base screw |
35280 |
US $2.78 |
||
|
39
|
39
35045 Nut |
35045 |
US $3.01 |
||
| replacement | |||||
|
39
|
39
826709109 Nut, stainless steel |
826709109 |
US $3.71 |
||
|
40
|
40
94848 Fitting, tell tale hose-bottom cowl |
94848 |
US $4.06 |
||
|
41
|
41
89774 Plug |
89774 |
US $5.49 |
||
|
42
|
42
8128301
New Genuine Part
|
8128301 |
— | ||
| replacement | |||||
|
42
|
42
812830T01 Cap-switch lg |
812830T01 |
US $6.50 |
||
|
43
|
43
8124431
New Genuine Part
|
8124431 |
— | ||
| replacement | |||||
|
43
|
43
8M0032848 New Genuine Part |
8M0032848 |
US $8.93 |
||
|
44
|
44
13637 Clamp |
13637 |
US $13.25 |
||
|
45
|
45
817362 Cap, starter sheave |
817362 |
US $0.82 |
||
|
46
|
46
815504104 Clamp, worm gear |
815504104 |
US $7.92 |
||
|
47
|
47
88621
New Genuine Part
|
88621 |
— | ||
