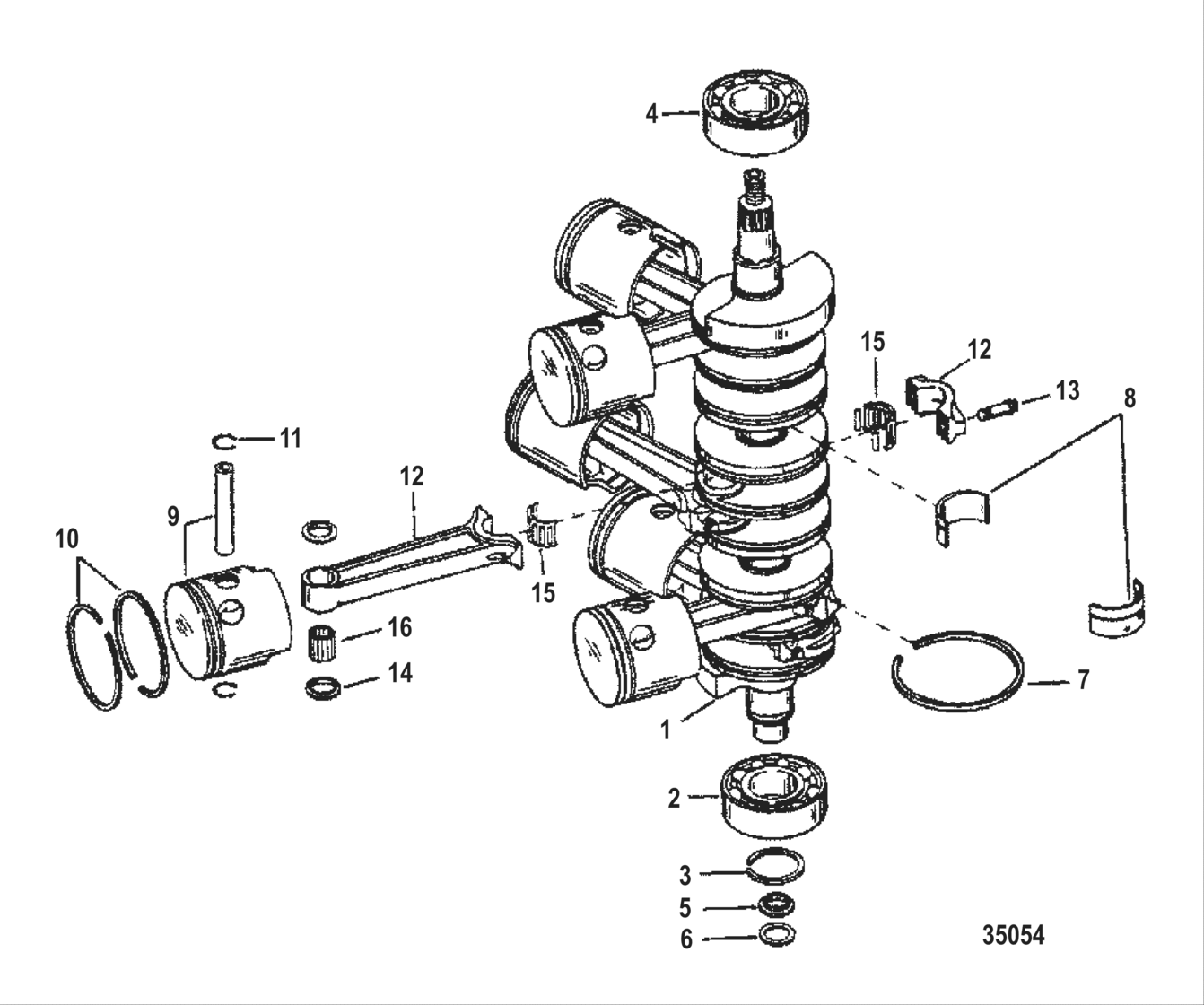

Crankshaft, Pistons And Connecting Rods Diagram Mercury-Mercruiser E2.5
- Year
- 2.5
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 0G610239 THRU 0G856999
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
848330A2 Crankshaft Assembly |
848330A2 |
US $2,931.44 |
||
| replacement | |||||
|
1
|
1
848330T4 Crankshaft Assembly |
848330T4 |
US $2,931.44 |
||
|
2
|
2
67923 Bearing, ball, crankshaft |
67923 |
US $114.45 |
||
| replacement | |||||
|
2
|
2
67923T Bearing Ball |
67923T |
US $114.45 |
||
|
3
|
3
67446 Ring, ball bearing |
67446 |
US $3.25 |
||
|
4
|
4
848280 Bearing Ball (Upper) |
848280 |
US $349.15 |
||
| replacement | |||||
|
4
|
4
849819 Bearing Ball (Upper) |
849819 |
US $349.15 |
||
|
5
|
5
54196A6 New Genuine Part |
54196A6 |
US $22.45 |
||
|
6
|
6
65800 New Genuine Part |
65800 |
US $3.94 |
||
|
7
|
7
673772 Ring |
673772 |
US $54.78 |
||
| replacement | |||||
|
7
|
7
8M0072093 RING |
8M0072093 |
US $54.78 |
||
|
8
|
8
16756A8 Bearing Assembly Roller |
16756A8 |
US $97.66 |
||
| replacement | |||||
|
8
|
8
16756T8 Bearing Center Main |
16756T8 |
US $97.66 |
||
|
9
|
9
827352A3 Piston Assembly (Starboard) |
827352A3 |
US $578.94 |
||
| replacement | |||||
|
9
|
9
827352T20 Piston |
827352T20 |
US $578.94 |
||
|
9
|
9
827353A3 Piston Assembly (Port) |
827353A3 |
US $578.94 |
||
| replacement | |||||
|
9
|
9
827353T20 Piston |
827353T20 |
US $578.94 |
||
|
10
|
10
848200A12 Ring Set Piston |
848200A12 |
US $618.22 |
||
|
11
|
11
8212461 Ring Retaining |
8212461 |
US $3.01 |
||
| replacement | |||||
|
11
|
11
857196 Lock ring |
857196 |
US $3.50 |
||
|
12
|
12
818141A9
Connecting Rod Assembly
|
818141A9 |
— | ||
|
13
|
13
848475 Screw |
848475 |
US $31.66 |
||
|
14
|
14
812876 New Genuine Part |
812876 |
US $5.41 |
||
| replacement | |||||
|
14
|
14
8M0012298 Шайба |
8M0012298 |
US $4.64 |
||
|
15
|
15
821146A1 Bearing Assembly Roller |
821146A1 |
US $67.22 |
||
| replacement | |||||
|
15
|
15
8M0045428 BEARING KIT |
8M0045428 |
US $98.58 |
||
|
16
|
16
822553 needle |
822553 |
US $0.46 |
||
|
NI
|
NI
814658A98 Gasket Set Engine |
814658A98 |
US $489.42 |
||
|
NI
|
NI
848040A17
Powerhead Assembly
|
848040A17 |
— | ||
| replacement | |||||
|
NI
|
NI
848040T42
POWERHEAD
|
848040T42 |
— | ||
