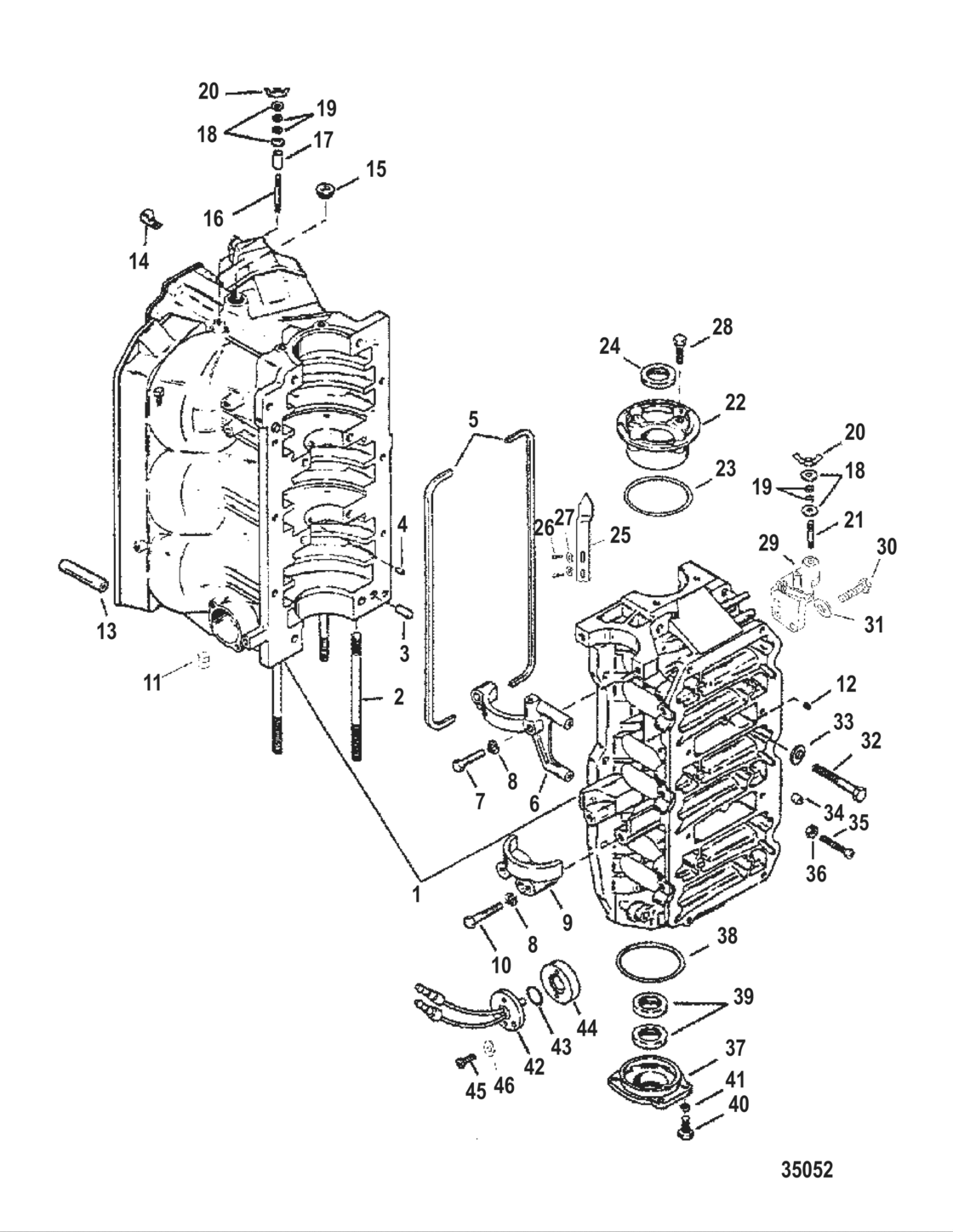

Cylinder Block And End Caps Diagram Mercury-Mercruiser E2.5
- Year
- 2.5
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 0G610239 THRU 0G856999
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
822230A36
Cylinder Block
|
822230A36 |
— | ||
| replacement | |||||
|
1
|
1
822230T36
CYLINDER BLOCK
|
822230T36 |
— | ||
|
2
|
2
847530 Stud (.375-16/.375-24 X 2.040) (1-3/4 In.) |
847530 |
US $19.55 |
||
| replacement | |||||
|
2
|
2
8M0034443 STUD |
8M0034443 |
US $19.55 |
||
|
2
|
2
847529 Stud (.375-16/.375-24 X 2.490) |
847529 |
US $28.70 |
||
| replacement | |||||
|
2
|
2
8M0034430 STUD |
8M0034430 |
US $28.70 |
||
|
2
|
2
822358
Stud (2-3/4 In.)
|
822358 |
— | ||
|
2
|
2
847532 Stud (.375-16/.375-24 X 5.750) |
847532 |
US $28.50 |
||
| replacement | |||||
|
2
|
2
8M0034437 STUD |
8M0034437 |
US $28.50 |
||
|
2
|
2
847533 Stud (7 In.)(Long) |
847533 |
US $29.95 |
||
|
3
|
3
43044 Pin, dowel - without hole |
43044 |
US $1.92 |
||
|
4
|
4
67296 Dowel pin |
67296 |
US $3.14 |
||
| replacement | |||||
|
4
|
4
8M0036405 Pin (Bearing Race) |
8M0036405 |
US $3.14 |
||
|
5
|
5
11338 Gasket, sealing |
11338 |
US $2.54 |
||
|
6
|
6
42249 New Genuine Part |
42249 |
US $129.33 |
||
| replacement | |||||
|
6
|
6
8M0088723 BRACKET-STARTER |
8M0088723 |
US $129.33 |
||
|
7
|
7
90086 Screw (.312-18 X 1.500) |
90086 |
US $4.18 |
||
| replacement | |||||
|
7
|
7
840202 Screw (.312-18 X 1.500) |
840202 |
US $4.18 |
||
|
8
|
8
26993 Lockwasher |
26993 |
US $1.62 |
||
|
9
|
9
76867 N.l.a. |
76867 |
US $27.66 |
||
|
10
|
10
815549 Screw |
815549 |
US $3.71 |
||
|
11
|
11
568002
Plug Pipe (.0625-27)
|
568002 |
— | ||
|
12
|
12
42657A3 CHECK VALVE |
42657A3 |
US $7.45 |
||
|
13
|
13
830756109 Hose, , map sensor |
830756109 |
US $54.61 |
||
| replacement | |||||
|
13
|
13
8M0108355 Hose (57 Inches Bulk) To Vapor Separator Cover - Cut To 18 Inches |
8M0108355 |
US $54.61 |
||
|
14
|
14
63153 "j" clip, battery cable |
63153 |
US $0.69 |
||
|
15
|
15
821881
Pipe Plug
|
821881 |
— | ||
|
16
|
16
15094 Stud, , flywheel cover to cylinder block |
15094 |
US $7.18 |
||
|
17
|
17
67269 Spacer, flywheel cover stud |
67269 |
US $4.18 |
||
|
18
|
18
49221 Washer, vent screw |
49221 |
US $0.94 |
||
|
19
|
19
72761 Washer, stainless steel |
72761 |
US $1.55 |
||
|
20
|
20
816874 Wing nut, |
816874 |
US $4.40 |
||
|
21
|
21
15093 Stud |
15093 |
US $9.50 |
||
| replacement | |||||
|
21
|
21
8M0034435 STUD |
8M0034435 |
US $9.50 |
||
|
22
|
22
848282A1 End Cap Assembly Upper |
848282A1 |
US $460.13 |
||
| replacement | |||||
|
22
|
22
848282T1 END CAP-UPPER |
848282T1 |
US $460.13 |
||
|
23
|
23
54030 "o" ring, gear housing |
54030 |
US $6.21 |
||
|
24
|
24
41953 Oil seal |
41953 |
US $22.02 |
||
|
25
|
25
848465 New Genuine Part |
848465 |
US $55.84 |
||
|
26
|
26
90766
Screw (#10-32 X .500)
|
90766 |
— | ||
|
27
|
27
72761 Washer, stainless steel |
72761 |
US $1.55 |
||
|
28
|
28
69034 Screw, uppr end cap mounting |
69034 |
US $0.69 |
||
| replacement | |||||
|
28
|
28
30225 Screw with lockwasher, , alternator brace to alternator |
30225 |
US $0.69 |
||
|
29
|
29
8489741 New Genuine Part |
8489741 |
US $223.33 |
||
| replacement | |||||
|
29
|
29
8489742 New Genuine Part |
8489742 |
US $223.33 |
||
|
30
|
30
53576 Screw, , end cap to exhaust manifold |
53576 |
US $1.62 |
||
|
31
|
31
814806 Washer, stainless steel |
814806 |
US $1.62 |
||
|
32
|
32
66717 Screw, , crankcase to cylinder block |
66717 |
US $4.40 |
||
|
32
|
32
823188 Screw (3/8-16 X 3-1/2 In.) |
823188 |
US $8.62 |
||
|
32
|
32
8231991 Screw (3/8-16 X 1-1/4 In.) |
8231991 |
US $2.56 |
||
|
33
|
33
822838 Washer (.401 X .745 X .097) (Powerhead Attaching) |
822838 |
US $1.98 |
||
|
34
|
34
26852 New Genuine Part |
26852 |
US $3.47 |
||
|
35
|
35
64022 Screw, stop bracket adjusting |
64022 |
US $3.25 |
||
|
36
|
36
64015 Nut, alternator terminal |
64015 |
US $2.43 |
||
|
37
|
37
7809A1 End cap assembly, lower |
7809A1 |
US $250.56 |
||
| replacement | |||||
|
37
|
37
7809T1 End Cap Assembly Lower |
7809T1 |
US $250.56 |
||
|
38
|
38
62700 "o" ring, oil filter adaptor |
62700 |
US $3.47 |
||
|
39
|
39
41953 Oil seal |
41953 |
US $22.02 |
||
|
40
|
40
28636 Scerw, cover |
28636 |
US $2.09 |
||
|
41
|
41
26992 Lockwasher, stainless steel, control valve screw |
26992 |
US $0.93 |
||
|
42
|
42
13221A1 New Genuine Part |
13221A1 |
US $80.11 |
||
| replacement | |||||
|
42
|
42
13221T01 SENSOR |
13221T01 |
US $80.11 |
||
|
43
|
43
45711 O-ring, , valve cover |
45711 |
US $1.62 |
||
|
44
|
44
816885 New Genuine Part |
816885 |
US $30.21 |
||
|
45
|
45
34696 Screw, plate - metal |
34696 |
US $4.64 |
||
|
46
|
46
20670 Washer, fuel pump stud |
20670 |
US $1.50 |
||
|
NI
|
NI
18594A9 Liner Assembly Cylinder (.020 O.s.) |
18594A9 |
US $458.69 |
||
|
NI
|
NI
814658A98 Gasket Set Engine |
814658A98 |
US $489.42 |
||
|
NI
|
NI
848040A17
Powerhead Assembly
|
848040A17 |
— | ||
| replacement | |||||
|
NI
|
NI
848040T42
POWERHEAD
|
848040T42 |
— | ||
