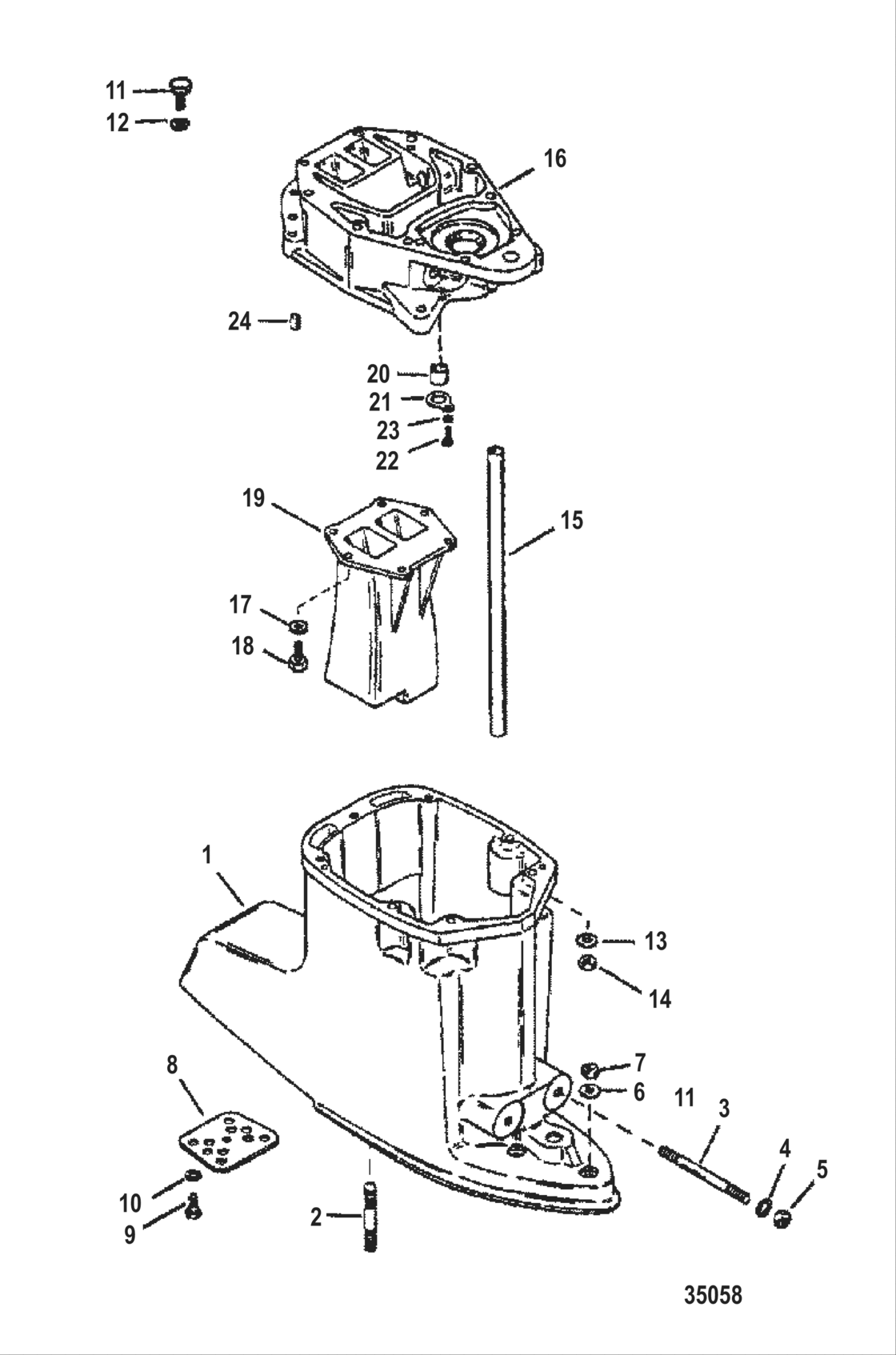

Driveshaft Housing Short-Standard Diagram Mercury-Mercruiser E2.5
- Year
- 2.5
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 0G610239 THRU 0G856999
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
818900A8 Housing Assembly Driveshaft(BLACK) |
818900A8 |
US $3,692.02 |
||
| replacement | |||||
|
1
|
1
818900T24 Housing Driveshaft(BLACK) |
818900T24 |
US $3,692.02 |
||
|
1
|
1
818900A9
Housing Assembly Driveshaft
(GRAY) |
818900A9 |
— | ||
| replacement | |||||
|
1
|
1
818900T9
Housing Assembly Driveshaft
(GRAY) |
818900T9 |
— | ||
|
2
|
2
59579 Stud, , bell housing to driveshaft housing |
59579 |
US $9.15 |
||
|
3
|
3
818908 Stud (.500-13/.500-20 X 4.120) |
818908 |
US $33.47 |
||
|
4
|
4
816056 Washer |
816056 |
US $3.65 |
||
|
5
|
5
28040 Nut, , valve adaptor stud |
28040 |
US $3.14 |
||
| replacement | |||||
|
5
|
5
898832 Nut |
898832 |
US $3.14 |
||
|
6
|
6
822836 Washer (.445 X .805 X .108) |
822836 |
US $4.13 |
||
|
7
|
7
134391 Nut, rear anchor pin |
134391 |
US $4.18 |
||
| replacement | |||||
|
7
|
7
859116 Nut, , bell housing stud |
859116 |
US $5.34 |
||
|
8
|
8
818909 New Genuine Part |
818909 |
US $26.02 |
||
|
9
|
9
39349 Screw, stainless steel |
39349 |
US $1.62 |
||
|
10
|
10
847539 Washer |
847539 |
US $3.01 |
||
|
11
|
11
91903 Screw |
91903 |
US $4.18 |
||
|
12
|
12
822836 Washer (.445 X .805 X .108) |
822836 |
US $4.13 |
||
|
13
|
13
822838 Washer (.401 X .745 X .097) (Powerhead Attaching) |
822838 |
US $1.98 |
||
|
14
|
14
34932 Nut, , link rod screw(FULL) |
34932 |
US $4.06 |
||
| replacement | |||||
|
14
|
14
82671013 Nut, stainless steel(FULL) |
82671013 |
US $4.06 |
||
|
14
|
14
34863
Nut
(THIN) |
34863 |
— | ||
| replacement | |||||
|
14
|
14
8M0042636 Nut (.375-24) Brass(THIN) |
8M0042636 |
US $1.62 |
||
|
15
|
15
8476503 Tube Water |
8476503 |
US $118.11 |
||
|
16
|
16
848284A9
Plate assy-exh
(BLACK) |
848284A9 |
— | ||
|
16
|
16
848284A10
Plate-exh. ext
(GRAY) |
848284A10 |
— | ||
| replacement | |||||
|
16
|
16
848284T10
N.l.a.
(GRAY) |
848284T10 |
— | ||
|
17
|
17
822714 Washer |
822714 |
US $14.30 |
||
|
18
|
18
823258 Screw (.312-18 X 1.250) |
823258 |
US $6.98 |
||
|
19
|
19
8483081 New Genuine Part |
8483081 |
US $702.26 |
||
|
20
|
20
88397 Seal |
88397 |
US $5.95 |
||
|
21
|
21
847658 New Genuine Part |
847658 |
US $22.64 |
||
| replacement | |||||
|
21
|
21
8476581 New Genuine Part |
8476581 |
US $22.64 |
||
|
22
|
22
28635 Screw, stainless steel, water tube sealing cover to gimbal housing |
28635 |
US $1.62 |
||
|
23
|
23
26992 Lockwasher, stainless steel, control valve screw |
26992 |
US $0.93 |
||
|
24
|
24
43044 Pin, dowel - without hole |
43044 |
US $1.92 |
||
|
24
|
24
823106 Pin, dowel |
823106 |
US $2.13 |
||
| replacement | |||||
|
24
|
24
8M0043826 Pin Dowel (Plate To Powerhead) |
8M0043826 |
US $2.13 |
||
