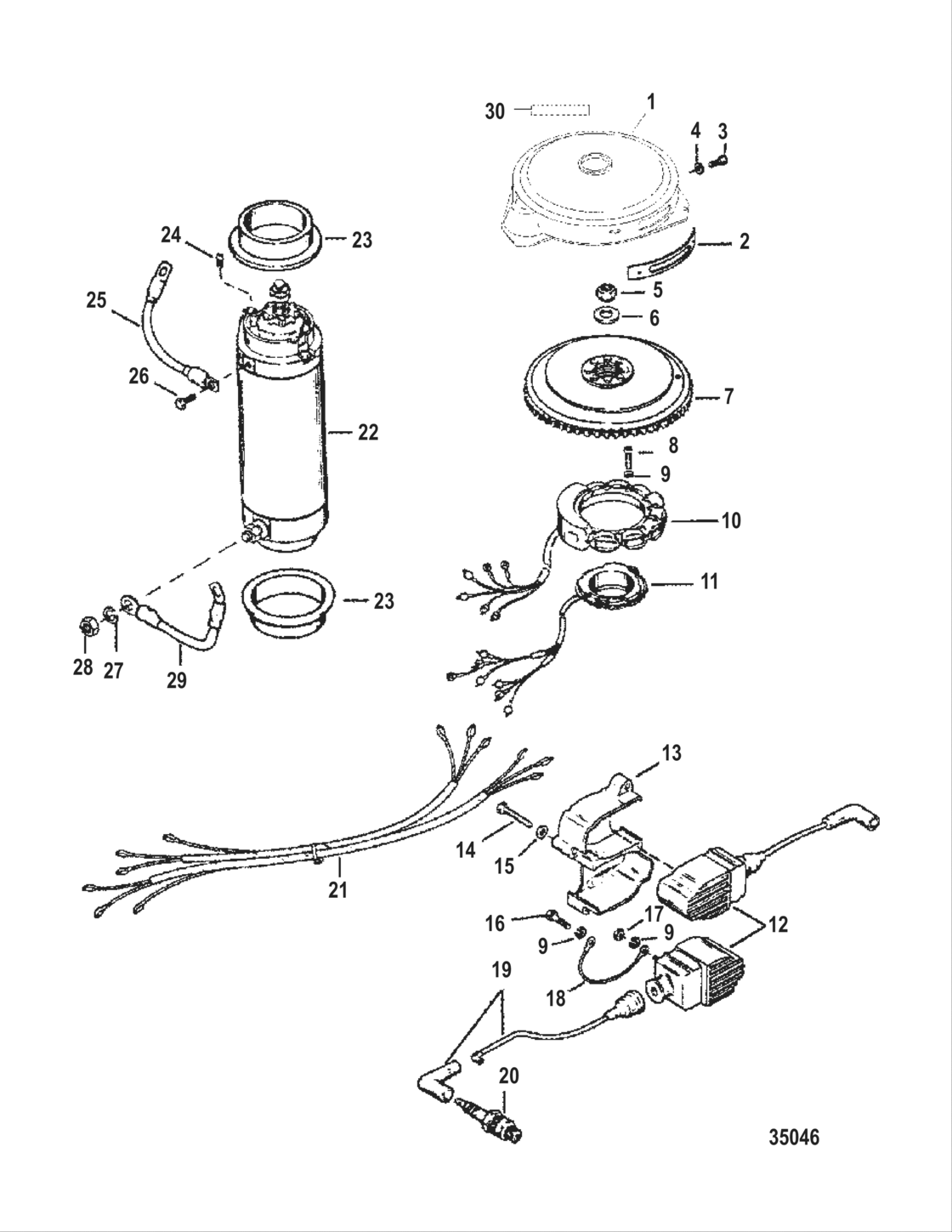

Flywheel, Starter Motor And Ignition Coils Diagram Mercury-Mercruiser E2.5
- Year
- 2.5
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 0G610239 THRU 0G856999
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79918A1 New Genuine Part |
79918A1 |
US $101.66 |
||
|
2
|
2
79022 New Genuine Part |
79022 |
US $37.66 |
||
|
3
|
3
37572 Screw, timing marker |
37572 |
US $0.93 |
||
|
4
|
4
72761 Washer, stainless steel |
72761 |
US $1.55 |
||
|
5
|
5
52901 Nut, tailstock screw |
52901 |
US $11.47 |
||
|
6
|
6
68229 Washer, flywheel nut |
68229 |
US $6.14 |
||
| replacement | |||||
|
6
|
6
33001 Washer, flywheel nut |
33001 |
US $6.14 |
||
|
7
|
7
6080A42
Flywheel
|
6080A42 |
— | ||
|
8
|
8
90028 Screw (#10-32 X 1.125) |
90028 |
US $2.38 |
||
|
9
|
9
26996 Lockwasher, stainless steel, terminal block screws |
26996 |
US $1.04 |
||
|
10
|
10
5454A66 Stator |
5454A66 |
US $503.33 |
||
| replacement | |||||
|
10
|
10
5454A36 Stator |
5454A36 |
US $503.33 |
||
|
11
|
11
96455A11 New Genuine Part |
96455A11 |
US $167.78 |
||
|
12
|
12
832757A4 Coil kit |
832757A4 |
US $109.44 |
||
|
13
|
13
79743 New Genuine Part |
79743 |
US $14.86 |
||
|
14
|
14
88447 Screw, , ignition coil cover |
88447 |
US $3.25 |
||
|
15
|
15
89302 Washer |
89302 |
US $1.62 |
||
|
16
|
16
68513 Screw, stainless steel |
68513 |
US $1.15 |
||
|
17
|
17
45076 Nut, circuit breaker terminal |
45076 |
US $2.09 |
||
|
18
|
18
88807A6 Cable Assembly (3.50 Inches) Black Black |
88807A6 |
US $5.92 |
||
|
19
|
19
815358A1 Cable Set Ignition |
815358A1 |
US $182.45 |
||
|
20
|
20
14103550 Spark Plug |
14103550 |
US $22.45 |
||
|
21
|
21
69738A7 Harness Assembly (#2,4, & 6) |
69738A7 |
US $89.01 |
||
|
21
|
21
69739A2 Harness Assembly Coil To Switch Box (#1, 3 & 5) |
69739A2 |
US $86.34 |
||
|
22
|
22
79472 Starter motor |
79472 |
US $421.10 |
||
| replacement | |||||
|
22
|
22
893893 STARTER MOTOR |
893893 |
US $421.10 |
||
|
23
|
23
56703 New Genuine Part |
56703 |
US $8.11 |
||
| replacement | |||||
|
23
|
23
8M0034918 Collar |
8M0034918 |
US $8.11 |
||
|
24
|
24
68042 New Genuine Part |
68042 |
US $4.06 |
||
| replacement | |||||
|
24
|
24
8M0043376 STOP |
8M0043376 |
US $4.06 |
||
|
25
|
25
93388A1 Cable, starter to sound attenuator |
93388A1 |
US $8.93 |
||
|
26
|
26
69035 Screw and lockwasher, stainless steel |
69035 |
US $1.62 |
||
|
27
|
27
26992 Lockwasher, stainless steel, control valve screw |
26992 |
US $0.93 |
||
|
28
|
28
64015 Nut, alternator terminal |
64015 |
US $2.43 |
||
|
29
|
29
93389A5
Wire Assembly (6.50 Inches) Yellow
|
93389A5 |
— | ||
|
30
|
30
85557729
Decal Epa
(1998) |
85557729 |
— | ||
| replacement | |||||
|
30
|
30
855577A42
REF OB SB 09-18
(1998) |
855577A42 |
— | ||
