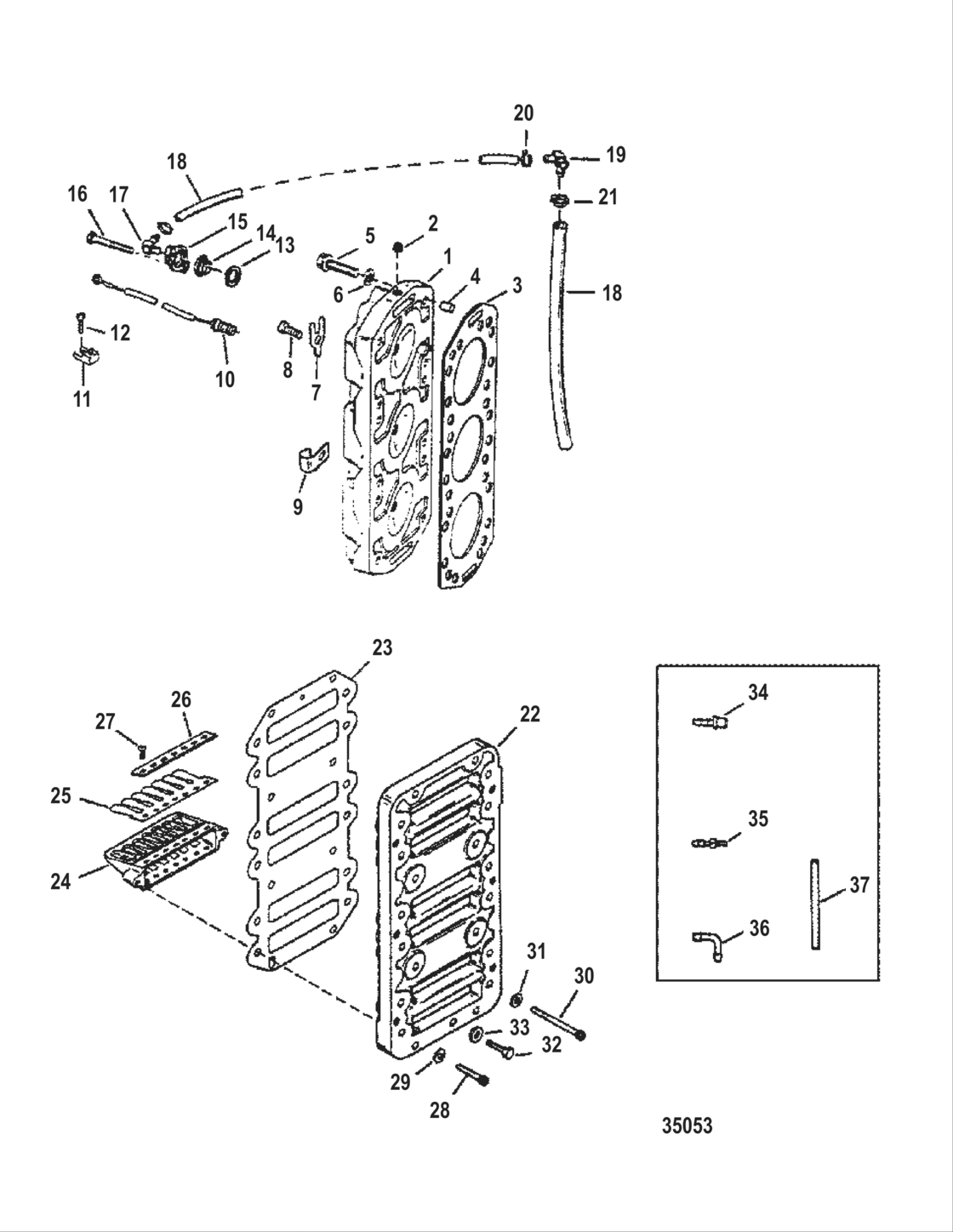

Reed Block And Cylinder Head Diagram Mercury-Mercruiser E2.5
- Year
- 2.5
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 0G610239 THRU 0G856999
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18789A3 New Genuine Part |
18789A3 |
US $499.42 |
||
| replacement | |||||
|
1
|
1
18789T04 New Genuine Part |
18789T04 |
US $499.42 |
||
|
2
|
2
328022 Plug, pipe brass |
328022 |
US $6.72 |
||
|
3
|
3
8146581 Gasket |
8146581 |
US $76.16 |
||
|
4
|
4
63779 Pin, dowel-cylinder block to main bearing |
63779 |
US $4.40 |
||
|
5
|
5
98534 Screw |
98534 |
US $3.47 |
||
|
6
|
6
822838 Washer (.401 X .745 X .097) (Powerhead Attaching) |
822838 |
US $1.98 |
||
|
7
|
7
137151 New Genuine Part |
137151 |
US $3.47 |
||
|
8
|
8
88743 Screw, spring to lever |
88743 |
US $2.21 |
||
|
9
|
9
789451 Clamp (Port Side - Water Out) |
789451 |
US $6.96 |
||
|
10
|
10
97465 New Genuine Part |
97465 |
US $117.66 |
||
|
11
|
11
45915 New Genuine Part |
45915 |
US $0.69 |
||
|
12
|
12
48409 Screw, stainless steel |
48409 |
US $1.97 |
||
|
12
|
12
62568 Screw, , switch retainer to control panel |
62568 |
US $0.93 |
||
|
12
|
12
87926 Screw |
87926 |
US $1.62 |
||
|
13
|
13
475331 Washer |
475331 |
US $2.78 |
||
|
14
|
14
62386 Gasket, thermostat |
62386 |
US $2.98 |
||
| replacement | |||||
|
14
|
14
62386001 Gasket |
62386001 |
US $3.18 |
||
|
15
|
15
90390A1 Cover kit-thermo |
90390A1 |
US $66.98 |
||
|
16
|
16
37562 Screw, end cap/connector to exhaust manifold |
37562 |
US $2.54 |
||
|
17
|
17
687271 Fitting, 90 degree - brass |
687271 |
US $41.70 |
||
|
18
|
18
77653112 Hose |
77653112 |
US $63.44 |
||
| replacement | |||||
|
18
|
18
77653101 Hose |
77653101 |
US $63.44 |
||
|
19
|
19
68728 Fitting, the thermostat cover to water hoses |
68728 |
US $32.90 |
||
|
20
|
20
816311 Tie strap, |
816311 |
US $0.51 |
||
| replacement | |||||
|
20
|
20
816311T Tie Strap (8.00 Inches) |
816311T |
US $0.51 |
||
|
21
|
21
815504104 Clamp, worm gear |
815504104 |
US $7.92 |
||
|
22
|
22
987093 Plate-reed block |
987093 |
US $507.58 |
||
|
23
|
23
127754 Gasket |
127754 |
US $38.96 |
||
|
24
|
24
876922 New Genuine Part |
876922 |
US $155.01 |
||
| replacement | |||||
|
24
|
24
87692T3 New Genuine Part |
87692T3 |
US $155.01 |
||
|
25
|
25
815242A3 Reed Kit Seven Petal Style |
815242A3 |
US $111.01 |
||
|
26
|
26
903911 Clamp-reed |
903911 |
US $36.78 |
||
|
27
|
27
823588 Screw |
823588 |
US $0.58 |
||
|
28
|
28
60147 Screw (.250-20 X 1.25) |
60147 |
US $3.60 |
||
|
29
|
29
822837 Washer |
822837 |
US $1.14 |
||
|
30
|
30
60147 Screw (.250-20 X 1.25) |
60147 |
US $3.60 |
||
|
31
|
31
39143 Washer, , shift actuating cable stud |
39143 |
US $8.22 |
||
|
32
|
32
55715 Screw, , oil pan to block |
55715 |
US $2.43 |
||
|
33
|
33
822837 Washer |
822837 |
US $1.14 |
||
|
34
|
34
56759 Fitting |
56759 |
US $10.08 |
||
|
35
|
35
426231 Check valve |
426231 |
US $6.96 |
||
| replacement | |||||
|
35
|
35
426233 Check valve |
426233 |
US $6.96 |
||
|
35
|
35
818189A1 Check Valve (Bottom Of Crankcase) |
818189A1 |
US $27.70 |
||
|
36
|
36
94090 Fitting Elbow (4 Per Carb) |
94090 |
US $7.38 |
||
|
37
|
37
6628570 Tubing Tygon (48.00 Inches Bulk) |
6628570 |
US $36 |
||
|
NI
|
NI
814658A98 Gasket Set Engine |
814658A98 |
US $489.42 |
||
|
NI
|
NI
848040A17
Powerhead Assembly
|
848040A17 |
— | ||
| replacement | |||||
|
NI
|
NI
848040T42
POWERHEAD
|
848040T42 |
— | ||
