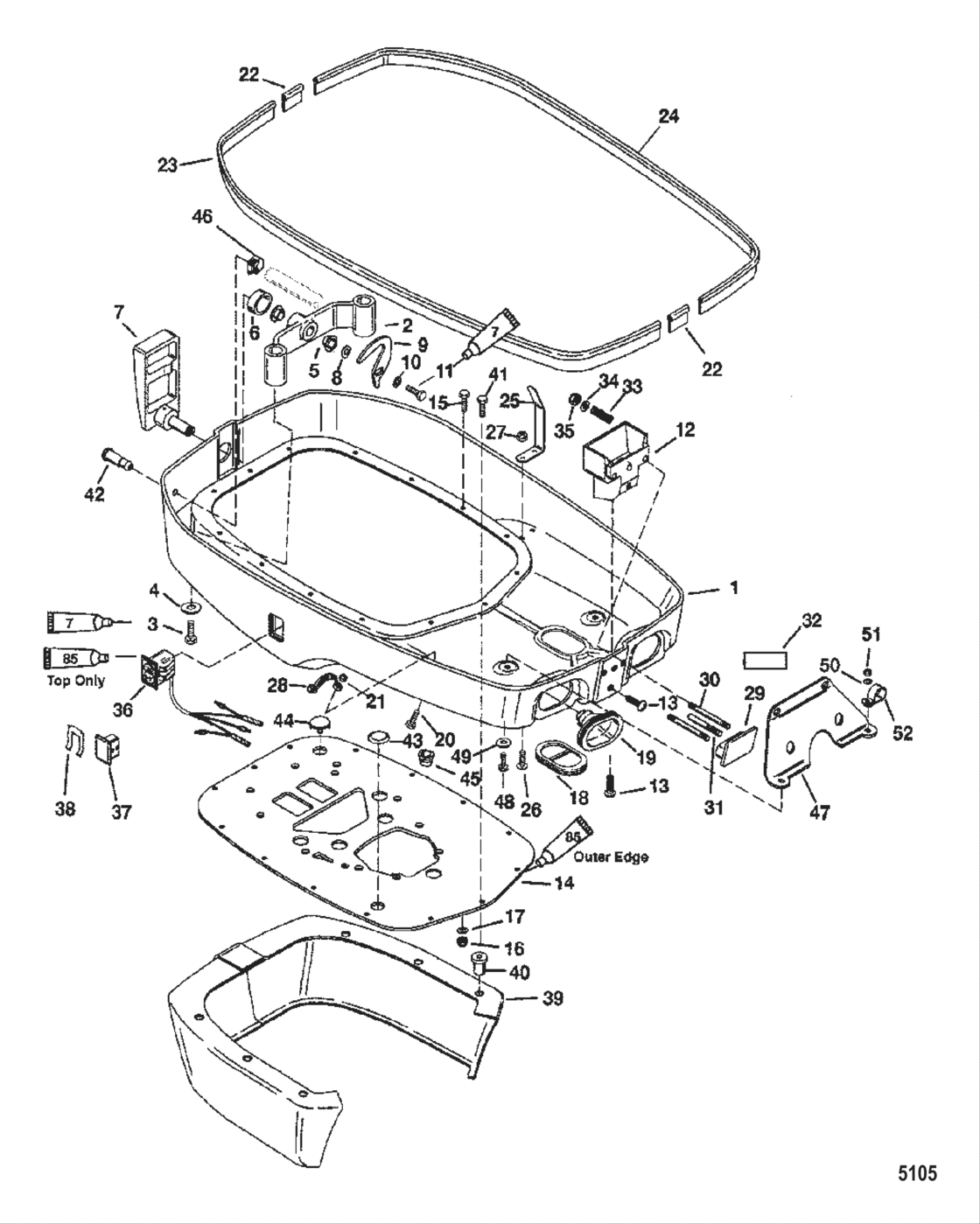

Bottom Cowl Diagram Mercury-Mercruiser E2.5
- Year
- 2.5
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0G857000 THRU 0T999519
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
849479T5 Bottom Pan(BLACK) |
849479T5 |
US $3,288.46 |
||
|
2
|
2
848810 New Genuine Part |
848810 |
US $178.22 |
||
|
3
|
3
28782 Screw, stainless steel |
28782 |
US $2.54 |
||
|
4
|
4
814806 Washer, stainless steel |
814806 |
US $1.62 |
||
|
5
|
5
812707 Bushing |
812707 |
US $7.31 |
||
|
6
|
6
848985 New Genuine Part |
848985 |
US $6.64 |
||
|
7
|
7
848815T1 Handle black(BLACK) |
848815T1 |
US $209.95 |
||
|
8
|
8
F2047 Washer Wave |
F2047 |
US $1.50 |
||
|
9
|
9
889566 Latch-cam |
889566 |
US $41.10 |
||
| replacement | |||||
|
9
|
9
8M0001081 New Genuine Part |
8M0001081 |
US $41.10 |
||
|
10
|
10
4002316
Washer
|
4002316 |
— | ||
|
11
|
11
28635 Screw, stainless steel, water tube sealing cover to gimbal housing |
28635 |
US $1.62 |
||
|
12
|
12
849830T1 New Genuine Part |
849830T1 |
US $221.02 |
||
|
13
|
13
849011 Screw (.250-20 X .750) |
849011 |
US $4.69 |
||
|
14
|
14
849480T Plate-cowl base |
849480T |
US $403.38 |
||
|
15
|
15
38601 Screw, solenoid bottom cowl |
38601 |
US $1.62 |
||
|
16
|
16
826709109 Nut, stainless steel |
826709109 |
US $3.71 |
||
|
17
|
17
29245 Washer, stainless steel, water pump body stud |
29245 |
US $1.28 |
||
|
18
|
18
849750 Grommet |
849750 |
US $54.58 |
||
|
19
|
19
8177133 Grommet |
8177133 |
US $34.82 |
||
|
20
|
20
69020 Screw, chok cable to carburetor |
69020 |
US $2.43 |
||
| replacement | |||||
|
20
|
20
690201 Screw |
690201 |
US $2.43 |
||
|
21
|
21
826709106 Nut, stainless steel |
826709106 |
US $4.06 |
||
|
22
|
22
849767 New Genuine Part |
849767 |
US $3.49 |
||
| replacement | |||||
|
22
|
22
8M0043399 SEAL |
8M0043399 |
US $3.49 |
||
|
23
|
23
849766 New Genuine Part |
849766 |
US $52.11 |
||
| replacement | |||||
|
23
|
23
8M0043398 Seal Cowl |
8M0043398 |
US $52.11 |
||
|
24
|
24
849765 New Genuine Part |
849765 |
US $52.11 |
||
| replacement | |||||
|
24
|
24
8M0043397 SEAL-COWL |
8M0043397 |
US $52.11 |
||
|
25
|
25
8496191 New Genuine Part |
8496191 |
US $36.42 |
||
|
26
|
26
849011 Screw (.250-20 X .750) |
849011 |
US $4.69 |
||
|
27
|
27
8267098 Nut, stainless steel |
8267098 |
US $5.92 |
||
|
28
|
28
88621
New Genuine Part
|
88621 |
— | ||
|
29
|
29
849831A1 New Genuine Part |
849831A1 |
US $274.53 |
||
|
30
|
30
849833 Stud (.250-20 X 3.310)(1/4-20 X 3-1/3) |
849833 |
US $21.36 |
||
| replacement | |||||
|
30
|
30
843118 Stud (.250-20 X 3.45)(1/4-20 X 3-1/3) |
843118 |
US $21.36 |
||
|
30
|
30
843118 Stud (.250-20 X 3.45)(1/4-20 x 3.45) |
843118 |
US $21.36 |
||
|
31
|
31
849832 Pin-latch |
849832 |
US $98.10 |
||
|
32
|
32
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
33
|
33
849837
Spring (.360 Outside Diameter)
(.360 O.D.) |
849837 |
— | ||
|
33
|
33
842776 Spring (.420 Outside Diameter)(.420 O.D.) |
842776 |
US $22.72 |
||
|
34
|
34
846673 Washer |
846673 |
US $0.93 |
||
|
35
|
35
8267098 Nut, stainless steel |
8267098 |
US $5.92 |
||
|
36
|
36
856990 Switch assembly(NON-OFFSHORE) |
856990 |
US $116.56 |
||
| replacement | |||||
|
36
|
36
8M0042301 SWITCH-TRIM(NON-OFFSHORE) |
8M0042301 |
US $116.56 |
||
|
37
|
37
8128301
New Genuine Part
(OFFSHORE) |
8128301 |
— | ||
| replacement | |||||
|
37
|
37
812830T01 Cap-switch lg(OFFSHORE) |
812830T01 |
US $6.50 |
||
|
38
|
38
8124431
New Genuine Part
(OFFSHORE) |
8124431 |
— | ||
| replacement | |||||
|
38
|
38
8M0032848 New Genuine Part(OFFSHORE) |
8M0032848 |
US $8.93 |
||
|
39
|
39
849534A1 Skirt(BLACK) |
849534A1 |
US $1,005.70 |
||
|
40
|
40
849000 Nut |
849000 |
US $6.27 |
||
|
41
|
41
F2030 Screw (.250-20 X 1.250) Stainless Steel |
F2030 |
US $3.01 |
||
|
42
|
42
94848 Fitting, tell tale hose-bottom cowl |
94848 |
US $4.06 |
||
|
43
|
43
817362 Cap, starter sheave |
817362 |
US $0.82 |
||
|
44
|
44
89774 Plug |
89774 |
US $5.49 |
||
|
45
|
45
126021 Grommet |
126021 |
US $3.94 |
||
| replacement | |||||
|
45
|
45
12602002 Grommet |
12602002 |
US $3.94 |
||
|
46
|
46
815504104 Clamp, worm gear |
815504104 |
US $5.92 |
||
|
47
|
47
849582 Brace-pan |
849582 |
US $135.02 |
||
|
48
|
48
69028 Screw, starter solenoid to mounting bracket |
69028 |
US $2.43 |
||
|
49
|
49
35462 Washer, shift cable stud |
35462 |
US $1.62 |
||
|
50
|
50
35280 Washer, base screw |
35280 |
US $2.78 |
||
|
51
|
51
826709109 Nut, stainless steel |
826709109 |
US $3.71 |
||
|
52
|
52
13637 Clamp |
13637 |
US $13.25 |
||
