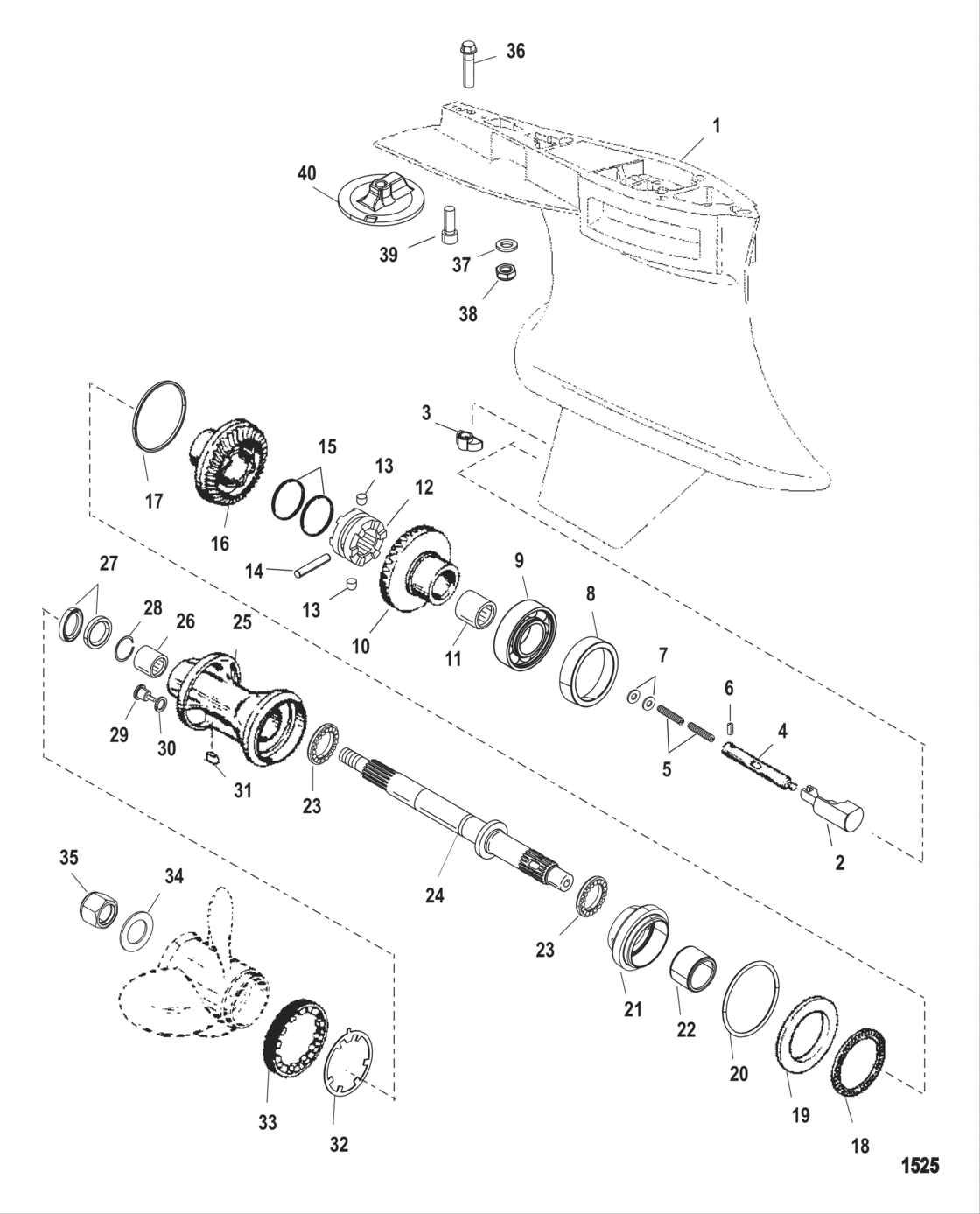

Gear Housing Propeller Shaft - Counter Rotation Diagram Mercury-Mercruiser E2.5
- Year
- 2.5
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0G857000 THRU 0T999519
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0
|
0
840561T69 Gear Housing Assembly Complete(SHORT) |
840561T69 |
US $10,434.72 |
||
|
0
|
0
840561T70
Gear Housing Assembly Complete
(LONG) |
840561T70 |
— | ||
|
0
|
0
840561T71
Gear Housing Assembly Complete
(X-LONG) |
840561T71 |
— | ||
|
1
|
1
849781A2 Gear Housing Assembly Basic(BASIC) |
849781A2 |
US $4,442.62 |
||
| replacement | |||||
|
1
|
1
8M0084203 GEAR HOUSING-SM(BASIC) |
8M0084203 |
US $4,442.62 |
||
|
2
|
2
89594A1 Cam/follower kit |
89594A1 |
US $232.22 |
||
|
3
|
3
789562 New Genuine Part |
789562 |
US $10.21 |
||
|
4
|
4
79911A1 Rod kit-clutch |
79911A1 |
US $190.90 |
||
|
5
|
5
79910 Spring, compression |
79910 |
US $7.31 |
||
|
6
|
6
78906 Pin, spring locator |
78906 |
US $3.01 |
||
| replacement | |||||
|
6
|
6
8M0084245 Pin Spring Locator |
8M0084245 |
US $3.01 |
||
|
7
|
7
78910 Washer, compression spring |
78910 |
US $1.74 |
||
|
8
|
8
14469T New Genuine Part |
14469T |
US $511.78 |
||
|
9
|
9
88957T Bearing Ball |
88957T |
US $84.32 |
||
|
10
|
10
NSS
Not Sold Separate O-Ring
(1.87:1 GEAR RATIO) |
NSS |
— | ||
|
11
|
11
15844 Bearing assembly, roller |
15844 |
US $22.61 |
||
|
12
|
12
42672T Ratchet |
42672T |
US $307.84 |
||
|
13
|
13
78909 Pin, detent, ratchet |
78909 |
US $20.18 |
||
|
14
|
14
42671 Pin Cross |
42671 |
US $68.69 |
||
|
15
|
15
78962 Spring, retaining - cross pin |
78962 |
US $9.74 |
||
|
16
|
16
15845A2 Gear Set(1.87:1 GEAR RATIO) |
15845A2 |
US $1,398.75 |
||
|
17
|
17
176151 Spacer shim,(.125 Inches) |
176151 |
US $81.89 |
||
|
17
|
17
176152 Spacer shim,(.127 Inches) |
176152 |
US $79.44 |
||
|
17
|
17
176153 Spacer shim,(.129 Inches) |
176153 |
US $81.89 |
||
|
17
|
17
176154 Spacer shim,(.131 Inches) |
176154 |
US $81.89 |
||
|
17
|
17
176155 Spacer shim,(.133 Inches) |
176155 |
US $79.44 |
||
|
17
|
17
176156 Spacer shim,(.135 Inches) |
176156 |
US $79.44 |
||
|
17
|
17
176157 Spacer shim,(.137 Inches) |
176157 |
US $85.78 |
||
|
17
|
17
176158 Spacer shim,(.139 Inches) |
176158 |
US $91.44 |
||
|
17
|
17
176159 Spacer shim,(.141 Inches) |
176159 |
US $79.33 |
||
|
17
|
17
1761510 Spacer shim,(.143 Inches) |
1761510 |
US $82.90 |
||
|
17
|
17
1761511 Spacer shim,(.145 Inches) |
1761511 |
US $80.35 |
||
|
17
|
17
1761512 Spacer shim,(.147 Inches) |
1761512 |
US $82.90 |
||
|
17
|
17
1761513 Spacer shim,(.149 Inches) |
1761513 |
US $89.86 |
||
|
18
|
18
15841 Bearing, roller |
15841 |
US $64.67 |
||
|
19
|
19
17616 Thrust ring |
17616 |
US $227.66 |
||
|
20
|
20
31534 O-ring, bearing carrier |
31534 |
US $6.92 |
||
|
21
|
21
15838A2 N.l.a. |
15838A2 |
US $245.62 |
||
|
22
|
22
15843T Bearing Needle |
15843T |
US $56.98 |
||
|
23
|
23
15834 Bearing Thrust |
15834 |
US $685.97 |
||
|
24
|
24
815495T
Propeller Shaft
(TAPERED) |
815495T |
— | ||
|
24
|
24
840450A2 Propelller Shaft(STRAIGHT) |
840450A2 |
US $1,125.79 |
||
| replacement | |||||
|
24
|
24
840450A03 Propeller Shaft Kit(STRAIGHT) |
840450A03 |
US $1,125.79 |
||
|
25
|
25
847616T1 New Genuine Part |
847616T1 |
US $530.21 |
||
|
26
|
26
817072 Bearing, roller |
817072 |
US $90.32 |
||
|
27
|
27
815565 Seal, oil |
815565 |
US $29.01 |
||
|
28
|
28
817071 Ring, snap |
817071 |
US $3.36 |
||
|
29
|
29
67892A1
Fitting Kit Magnetic, Plug Fill/drain
|
67892A1 |
— | ||
| replacement | |||||
|
29
|
29
8M0058389 Screw Kit Drain |
8M0058389 |
US $11.22 |
||
|
30
|
30
191833 Seal |
191833 |
US $1.68 |
||
|
31
|
31
30281 Key |
30281 |
US $1.28 |
||
|
32
|
32
79447 Tab washer, gear housing cover |
79447 |
US $12.06 |
||
|
33
|
33
158401 New Genuine Part |
158401 |
US $135.65 |
||
|
34
|
34
423511 Lockwasher, toothed |
423511 |
US $3.49 |
||
|
35
|
35
52707Q1 Prop Nut Kit (.750-16) |
52707Q1 |
US $19.24 |
||
|
36
|
36
41350 Screw, trim tab to gear housing(.437-14 x 2-1/2 Inches) |
41350 |
US $28.11 |
||
|
36
|
36
66024 Screw, trim tab to gear housing(7/16-14 x 1-3/4 Inches) |
66024 |
US $10.27 |
||
|
37
|
37
822836 Washer (.445 X .805 X .108) |
822836 |
US $4.13 |
||
|
38
|
38
859116 Nut, , bell housing stud |
859116 |
US $5.34 |
||
|
39
|
39
30206 Screw, stainless steel, gear housing to driveshaft housing(SHORT/LONG) |
30206 |
US $3.71 |
||
|
39
|
39
15929
Screw (.375-16 X 16 X 6.00)
(X-LONG) |
15929 |
— | ||
|
40
|
40
76214T3 Plate-anodic(SHORT/OFFSHORE) |
76214T3 |
US $47.44 |
||
|
40
|
40
76214Q5 Anode kit 2(LONG-NON-OFFSHORE) |
76214Q5 |
US $41.63 |
||
|
40
|
40
76214T1 New Genuine Part(X-LONG) |
76214T1 |
US $44.22 |
||
|
NI
|
NI
89238A3 Seal Kit Gear Housing |
89238A3 |
US $161.04 |
||
|
NI
|
NI
90415A24
Stud Kit
(SHORT/LONG) |
90415A24 |
— | ||
|
NI
|
NI
90415A25
Stud Kit
(X-LONG) |
90415A25 |
— | ||
|
NI
|
NI
840389K5 Hub kit-hd prop |
840389K5 |
US $173.97 |
||
| replacement | |||||
|
NI
|
NI
840389K06 Hub kit-hd prop |
840389K06 |
US $173.97 |
||
|
NI
|
NI
840382A1 Snubber strip kit |
840382A1 |
US $29.42 |
||
| replacement | |||||
|
NI
|
NI
840382A02 Snubber strip kit |
840382A02 |
US $29.42 |
||
