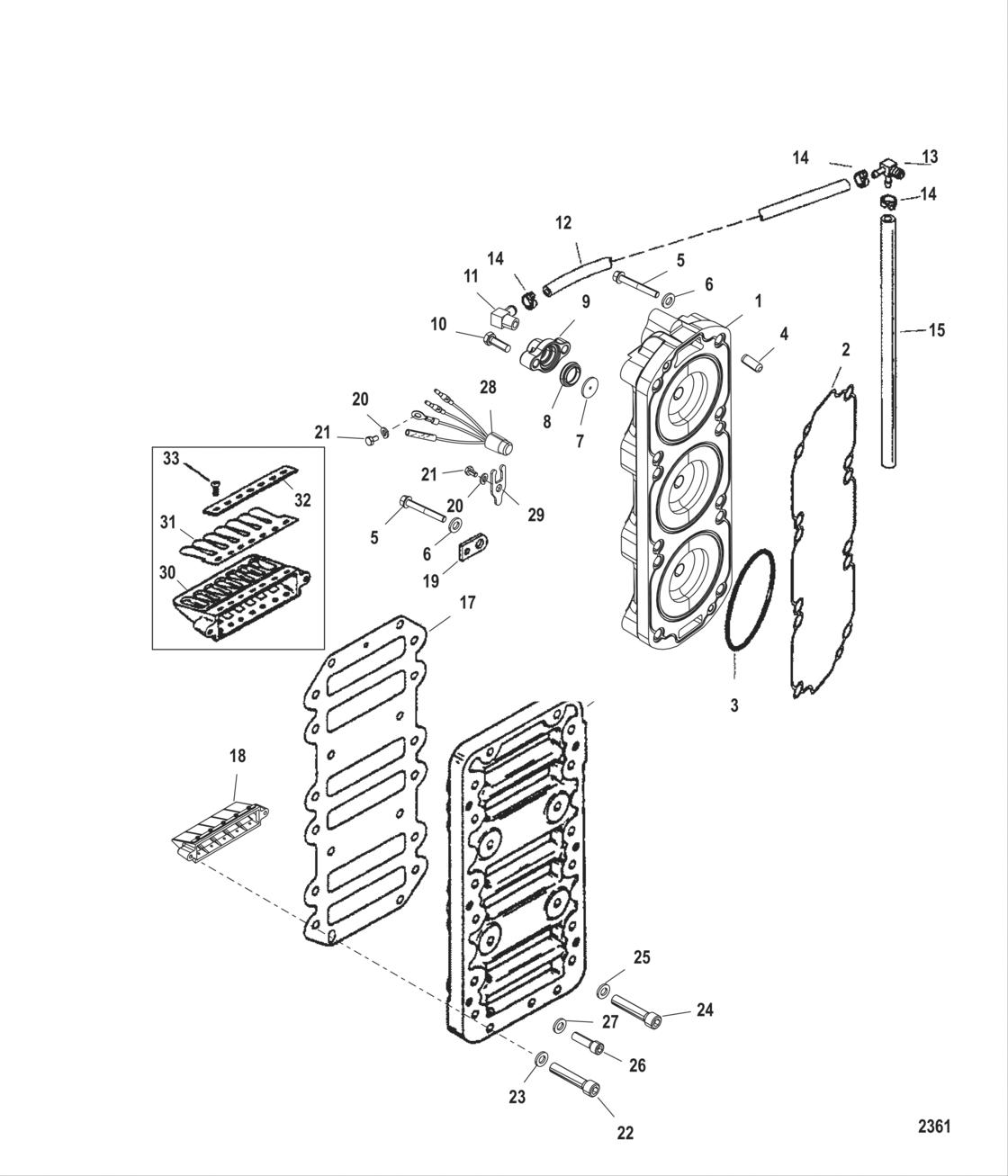

Reed Block And Cylinder Head Diagram Mercury-Mercruiser E2.5
- Year
- 2.5
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0G857000 THRU 0T999519
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
849496T3 New Genuine Part |
849496T3 |
US $769.97 |
||
|
2
|
2
849616 Seal |
849616 |
US $72.22 |
||
|
3
|
3
817574 O-Ring |
817574 |
US $6.67 |
||
|
4
|
4
63779 Pin, dowel-cylinder block to main bearing |
63779 |
US $4.40 |
||
|
5
|
5
878217 Screw |
878217 |
US $7.89 |
||
| replacement | |||||
|
5
|
5
8M0125882 SCREW |
8M0125882 |
US $7.89 |
||
|
6
|
6
822838 Washer (.401 X .745 X .097) (Powerhead Attaching) |
822838 |
US $1.98 |
||
|
7
|
7
475332 Washer |
475332 |
US $3.60 |
||
|
8
|
8
62386 Gasket, thermostat[0T997973] & Below |
62386 |
US $2.98 |
||
| replacement | |||||
|
8
|
8
62386001 Gasket[0T997973] & Below |
62386001 |
US $3.18 |
||
|
8
|
8
62386001 Gasket[0T997974] & Up |
62386001 |
US $3.18 |
||
|
9
|
9
90390A1 Cover kit-thermo |
90390A1 |
US $66.98 |
||
|
10
|
10
35386 Screw, , shift bracket to shift mounting bracket |
35386 |
US $1.28 |
||
|
11
|
11
687271 Fitting, 90 degree - brass |
687271 |
US $41.70 |
||
|
12
|
12
77653101 Hose |
77653101 |
US $63.44 |
||
|
13
|
13
68728 Fitting, the thermostat cover to water hoses |
68728 |
US $32.90 |
||
|
14
|
14
816311T Tie Strap (8.00 Inches) |
816311T |
US $0.51 |
||
|
15
|
15
77653101 Hose |
77653101 |
US $63.44 |
||
|
16
|
16
987093 Plate-reed block |
987093 |
US $507.58 |
||
|
17
|
17
127754 Gasket |
127754 |
US $38.96 |
||
|
18
|
18
840805T1 New Genuine Part(1 PIECE DESIGN) |
840805T1 |
US $293.44 |
||
|
19
|
19
75275 Clamp |
75275 |
US $18.08 |
||
|
20
|
20
53166 Lockwasher |
53166 |
US $1.62 |
||
|
21
|
21
90285 Screw, mounting bracket |
90285 |
US $1.62 |
||
|
22
|
22
60147 Screw (.250-20 X 1.25) |
60147 |
US $3.60 |
||
|
23
|
23
822837 Washer |
822837 |
US $1.14 |
||
|
24
|
24
60147 Screw (.250-20 X 1.25) |
60147 |
US $3.60 |
||
|
25
|
25
39143 Washer, , shift actuating cable stud |
39143 |
US $8.22 |
||
|
26
|
26
55715 Screw, , oil pan to block |
55715 |
US $2.43 |
||
|
27
|
27
822837 Washer |
822837 |
US $1.14 |
||
|
28
|
28
13536A14 New Genuine Part |
13536A14 |
US $61.22 |
||
|
29
|
29
137151 New Genuine Part |
137151 |
US $3.47 |
||
|
30
|
30
87692T3 New Genuine Part(MULTI-PIECE DESIGN) |
87692T3 |
US $155.01 |
||
|
31
|
31
849484A1 Reed Assembly(MULTI-PIECE DESIGN) |
849484A1 |
US $107.02 |
||
|
32
|
32
903911 Clamp-reed(MULTI-PIECE DESIGN) |
903911 |
US $36.78 |
||
|
33
|
33
823588 Screw(MULTI-PIECE DESIGN) |
823588 |
US $0.58 |
||
|
NI
|
NI
849770A1 Gasket Set Engine |
849770A1 |
US $652.98 |
||
|
NI
|
NI
848040T40
Powerhead Assembly
|
848040T40 |
— | ||
| replacement | |||||
|
NI
|
NI
848040T48
POWERHEAD
|
848040T48 |
— | ||
