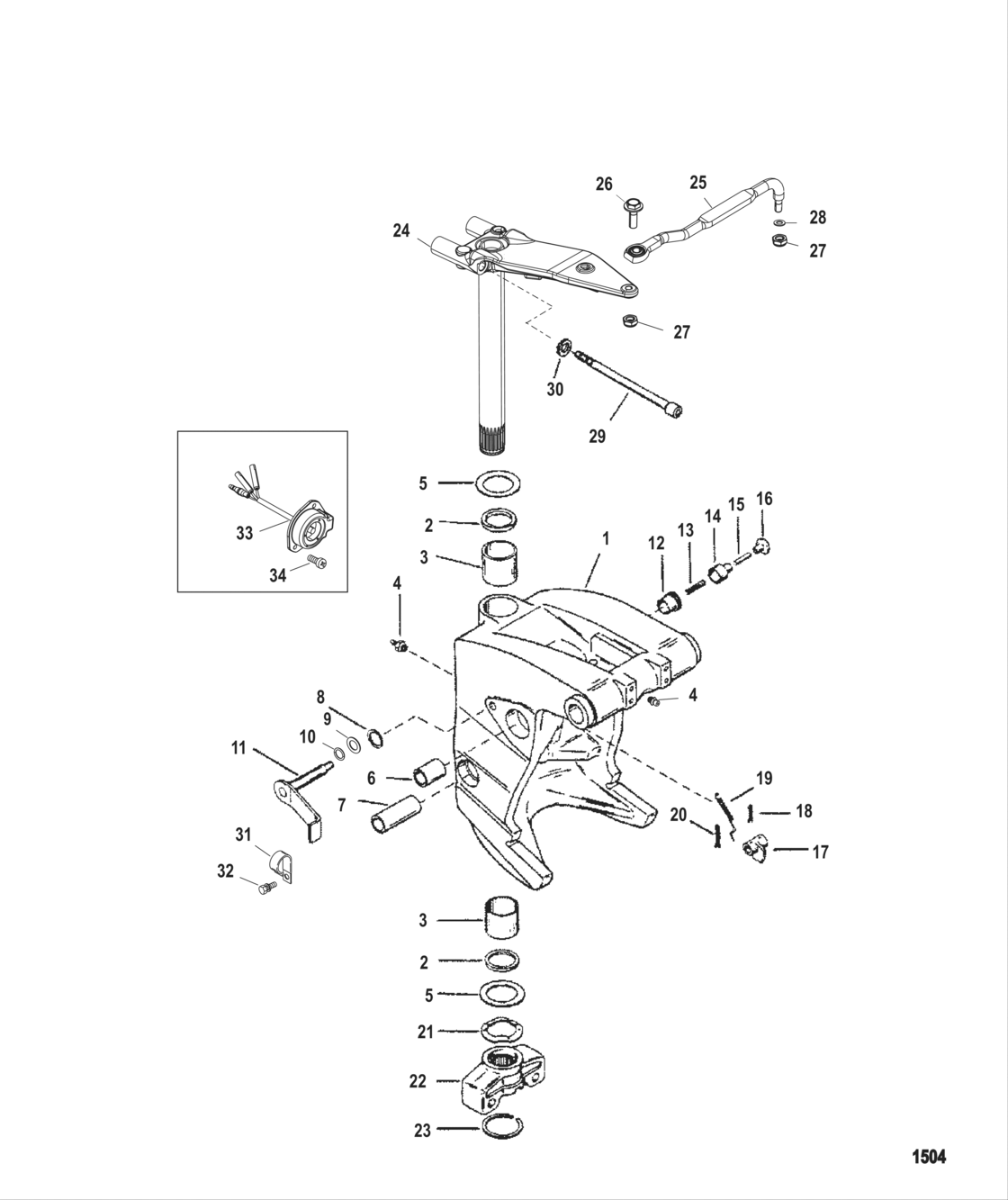

Swivel Bracket And Steering Arm Diagram Mercury-Mercruiser E2.5
- Year
- 2.5
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0G857000 THRU 0T999519
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
818810A14 Swivel Bracket AssemblyShort [0T651945] & Up |
818810A14 |
US $1,956.10 |
||
| replacement | |||||
|
1
|
1
818810T16 Swivel Bracket AssemblyShort [0T651945] & Up |
818810T16 |
US $1,956.10 |
||
|
1
|
1
818810A8
Swivel Bracket Assembly
Short [0T651944] & Below |
818810A8 |
— | ||
| replacement | |||||
|
1
|
1
818810T16 Swivel Bracket AssemblyShort [0T651944] & Below |
818810T16 |
US $1,956.10 |
||
|
1
|
1
847723A8 Swivel Bracket AssemblyLong [0T651945] & Up |
847723A8 |
US $1,766.11 |
||
| replacement | |||||
|
1
|
1
847723T09 Swivel bracket assemblyLong [0T651945] & Up |
847723T09 |
US $1,766.11 |
||
|
1
|
1
847723A3
Swivel Bracket Assembly
Long [0T651944] & Below |
847723A3 |
— | ||
| replacement | |||||
|
1
|
1
847723T09 Swivel bracket assemblyLong [0T651944] & Below |
847723T09 |
US $1,766.11 |
||
|
2
|
2
847729 Seal, oil |
847729 |
US $23.66 |
||
|
3
|
3
847726 Bearing |
847726 |
US $46.58 |
||
|
4
|
4
74036 Fitting, grease, gimbal housing |
74036 |
US $4.11 |
||
|
5
|
5
847728 Bearing |
847728 |
US $20.69 |
||
|
6
|
6
82203522 BearingPort - 1.375 Inches [0T651945] & Up |
82203522 |
US $36.24 |
||
|
6
|
6
82203516 BearingStarboard - 1 Inch [0T651945] & Up |
82203516 |
US $36.24 |
||
|
6
|
6
82203524 Bearing (1-1/2 In.)1-1/2 Inches [0T651944] & Below |
82203524 |
US $36.18 |
||
|
7
|
7
82203540 Bearing (2-1/2 In.)(SHORT MODELS) |
82203540 |
US $69.38 |
||
|
8
|
8
85023 Seal, oil(Use where Applicable) |
85023 |
US $19.60 |
||
|
9
|
9
87161 Washer(Use where Applicable) |
87161 |
US $1.97 |
||
|
10
|
10
48171 O-ring, , hydraulic pump to control valve(Use where Applicable) |
48171 |
US $1.82 |
||
|
11
|
11
85030A2 New Genuine Part(PORT)(Use where Applicable) |
85030A2 |
US $65.78 |
||
|
11
|
11
85028A2
New Genuine Part
(STARBOARD)(Use where Applicable) |
85028A2 |
— | ||
|
12
|
12
86600 Bushing(Use where Applicable) |
86600 |
US $64.34 |
||
|
13
|
13
85367 Spring(Use where Applicable) |
85367 |
US $12.45 |
||
|
14
|
14
41052 New Genuine Part(Use where Applicable) |
41052 |
US $11.71 |
||
|
15
|
15
88876
Stud
(Use where Applicable) |
88876 |
— | ||
|
16
|
16
86603 New Genuine Part(Use where Applicable) |
86603 |
US $15.18 |
||
|
17
|
17
864751 New Genuine Part(Use where Applicable) |
864751 |
US $21.46 |
||
|
18
|
18
69745 Roll pin, lever to vertical shaft(Use where Applicable) |
69745 |
US $4.53 |
||
|
19
|
19
88049 Spring(Use where Applicable) |
88049 |
US $15.42 |
||
|
20
|
20
93861 Cotter pin(Use where Applicable) |
93861 |
US $4.40 |
||
|
21
|
21
78854 Wave washer, bottom yoke |
78854 |
US $10.90 |
||
|
22
|
22
86580F4
New Genuine Part
(SHORT) |
86580F4 |
— | ||
|
22
|
22
814084F1 Yoke-bottom-black(LONG) |
814084F1 |
US $346 |
||
|
23
|
23
848125 Ring, retaining - spiral lock |
848125 |
US $25.47 |
||
|
24
|
24
8407871 Swivel Pin(SHORT) |
8407871 |
US $1,200.37 |
||
| replacement | |||||
|
24
|
24
8M0056723 PIN-SWIVEL(SHORT) |
8M0056723 |
US $1,200.37 |
||
|
24
|
24
8407931 Swivel pin(LONG) |
8407931 |
US $606.11 |
||
| replacement | |||||
|
24
|
24
879330T36 PIN-SWIVEL(LONG) |
879330T36 |
US $606.11 |
||
|
25
|
25
92876A10 Link kit-steering |
92876A10 |
US $101.18 |
||
| replacement | |||||
|
25
|
25
92876A12 New Genuine Part |
92876A12 |
US $90.96 |
||
|
26
|
26
849838 Screw |
849838 |
US $27.08 |
||
|
27
|
27
826709113
Nut
|
826709113 |
— | ||
|
28
|
28
37828 Washer, stainless steel |
37828 |
US $0.58 |
||
|
29
|
29
132121 Screw |
132121 |
US $13.81 |
||
|
30
|
30
816056 Washer |
816056 |
US $3.65 |
||
|
31
|
31
88512 Clamp |
88512 |
US $6.50 |
||
|
32
|
32
88829 Screw |
88829 |
US $3.01 |
||
|
33
|
33
841198A1 Trim sensor |
841198A1 |
US $334.45 |
||
|
34
|
34
852453 Screw |
852453 |
US $1.28 |
||
