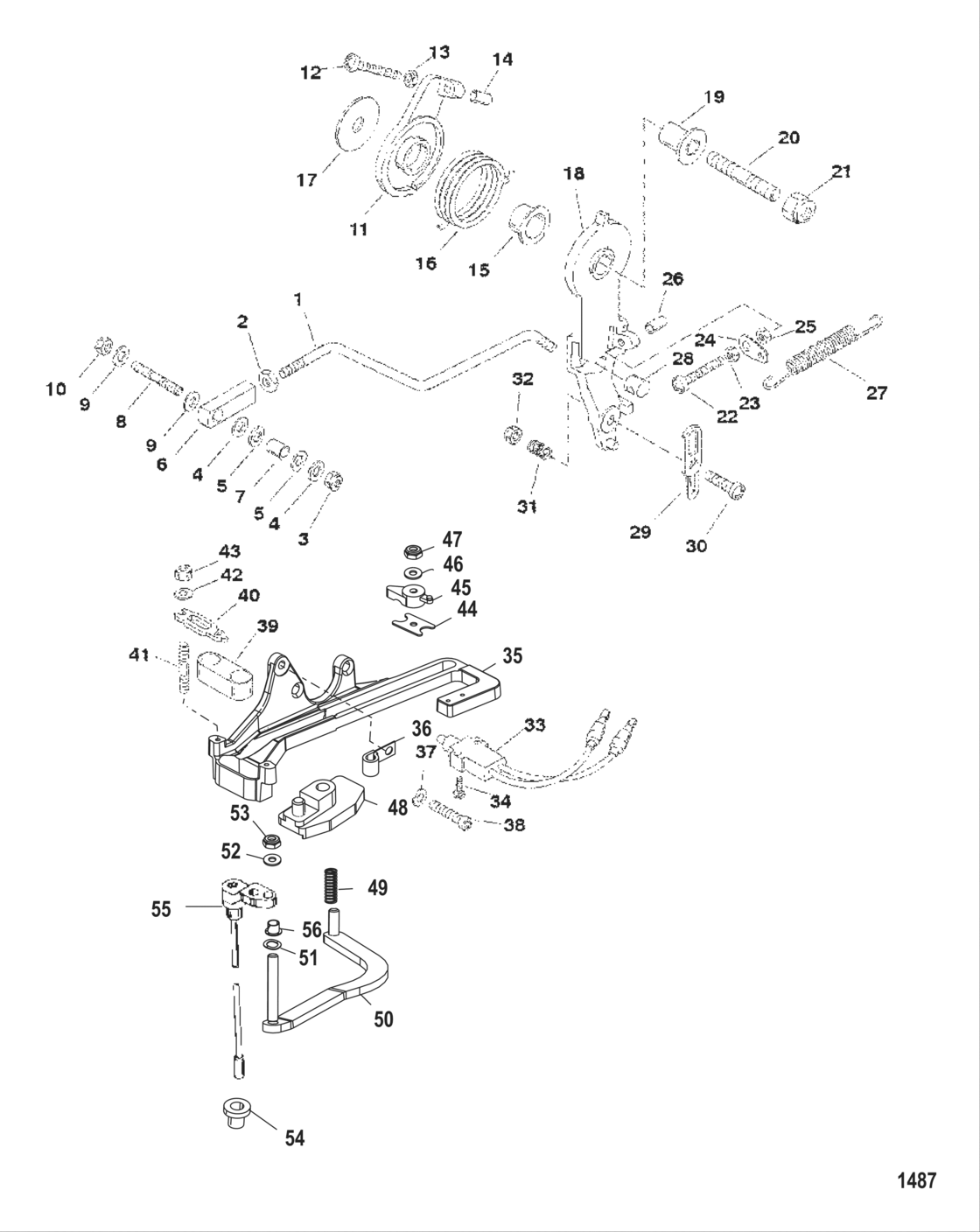

Throttle Lever And Shift Shaft Diagram Mercury-Mercruiser E2.5
- Year
- 2.5
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0G857000 THRU 0T999519
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
816250 New Genuine Part |
816250 |
US $85.15 |
||
|
2
|
2
20013 Nut |
20013 |
US $1.39 |
||
|
3
|
3
8267089 Nut, , water pump studs |
8267089 |
US $1.15 |
||
|
4
|
4
35462 Washer, shift cable stud |
35462 |
US $1.62 |
||
|
5
|
5
35459 Washer, throttle lever pin |
35459 |
US $1.50 |
||
|
6
|
6
8476022 Link slider |
8476022 |
US $176.53 |
||
|
7
|
7
122451
Bushing
|
122451 |
— | ||
|
8
|
8
961122 Stud |
961122 |
US $36.91 |
||
|
9
|
9
29245 Washer, stainless steel, water pump body stud |
29245 |
US $1.28 |
||
|
10
|
10
826709109 Nut, stainless steel |
826709109 |
US $3.71 |
||
|
11
|
11
8489841 Lever-throttle |
8489841 |
US $135.01 |
||
|
12
|
12
64022 Screw, stop bracket adjusting |
64022 |
US $3.25 |
||
|
13
|
13
64015 Nut, alternator terminal |
64015 |
US $2.43 |
||
|
14
|
14
26852 New Genuine Part |
26852 |
US $3.47 |
||
|
15
|
15
55171
Bushing, throttle control lever screw
|
55171 |
— | ||
|
16
|
16
55162 Spring, return - spark advance lever |
55162 |
US $6.96 |
||
|
17
|
17
46765 Washer, , front anchor pin |
46765 |
US $11.99 |
||
|
18
|
18
77837
New Genuine Part
|
77837 |
— | ||
|
19
|
19
55164 Bushing, throttle control lever screw |
55164 |
US $19.94 |
||
|
20
|
20
847529 Stud (.375-16/.375-24 X 2.490) |
847529 |
US $28.70 |
||
| replacement | |||||
|
20
|
20
8M0034430 STUD |
8M0034430 |
US $28.70 |
||
|
21
|
21
82671013 Nut, stainless steel |
82671013 |
US $4.06 |
||
|
22
|
22
64022 Screw, stop bracket adjusting |
64022 |
US $3.25 |
||
|
23
|
23
64015 Nut, alternator terminal |
64015 |
US $2.43 |
||
|
24
|
24
78201
Clip
|
78201 |
— | ||
|
25
|
25
64015 Nut, alternator terminal |
64015 |
US $2.43 |
||
|
26
|
26
26852 New Genuine Part |
26852 |
US $3.47 |
||
|
27
|
27
8484702 Spring |
8484702 |
US $42.96 |
||
|
28
|
28
60572 New Genuine Part |
60572 |
US $6.96 |
||
|
29
|
29
39483 New Genuine Part |
39483 |
US $10.58 |
||
|
30
|
30
69026 Screw |
69026 |
US $1.62 |
||
|
31
|
31
20099 Spring, compression - front cover release button |
20099 |
US $4.75 |
||
|
32
|
32
826709109 Nut, stainless steel |
826709109 |
US $3.71 |
||
|
33
|
33
814281A2 Switch |
814281A2 |
US $57.01 |
||
| replacement | |||||
|
33
|
33
8M0052931 SWITCH |
8M0052931 |
US $57.01 |
||
|
34
|
34
82470620 Screw |
82470620 |
US $1.50 |
||
|
35
|
35
840972A3 Anchor bracket kt |
840972A3 |
US $700.43 |
||
|
36
|
36
54457 J clip |
54457 |
US $4.18 |
||
|
37
|
37
29245 Washer, stainless steel, water pump body stud |
29245 |
US $1.28 |
||
|
38
|
38
62958 Screw (.312-18 X 1.00)(5/16-18 x 1-1/8 Inch) |
62958 |
US $1.70 |
||
|
38
|
38
849731
Screw
(1/4-20 x 1-1/4 Inch) |
849731 |
— | ||
|
38
|
38
823138 Screw (.250-20 X 1.00) Stainless Steel(1/4-20 x 1 Inch)(Top Mounting Hole) |
823138 |
US $11.47 |
||
|
39
|
39
16813 New Genuine Part |
16813 |
US $4.64 |
||
|
40
|
40
16814 New Genuine Part |
16814 |
US $22.72 |
||
|
41
|
41
18101 Stud |
18101 |
US $39.10 |
||
| replacement | |||||
|
41
|
41
8M0034426 STUD |
8M0034426 |
US $39.10 |
||
|
42
|
42
73288 Washer |
73288 |
US $1.28 |
||
|
43
|
43
18102 Nut (#12-24) |
18102 |
US $1.50 |
||
|
44
|
44
52100 New Genuine Part |
52100 |
US $8.46 |
||
|
45
|
45
38279 New Genuine Part |
38279 |
US $6.61 |
||
| replacement | |||||
|
45
|
45
8M0036768 Latch |
8M0036768 |
US $6.61 |
||
|
46
|
46
69056 Washer |
69056 |
US $1.62 |
||
|
47
|
47
826709109 Nut, stainless steel |
826709109 |
US $3.71 |
||
|
48
|
48
8142842 New Genuine Part |
8142842 |
US $51.98 |
||
|
49
|
49
20099 Spring, compression - front cover release button |
20099 |
US $4.75 |
||
|
50
|
50
67073A1 New Genuine Part |
67073A1 |
US $44.34 |
||
|
51
|
51
29720 Wave washer, throttle link screw |
29720 |
US $1.20 |
||
|
52
|
52
35462 Washer, shift cable stud |
35462 |
US $1.62 |
||
|
53
|
53
826709109 Nut, stainless steel |
826709109 |
US $3.71 |
||
|
54
|
54
27132 Bushing, nylon - upper shift shaft |
27132 |
US $4.58 |
||
|
55
|
55
79932A18 New Genuine Part(SHORT) |
79932A18 |
US $251.22 |
||
|
55
|
55
79932A16 New Genuine Part(LONG) |
79932A16 |
US $269.78 |
||
|
55
|
55
79932A17 Shaft-shift-xlong(X-LONG) |
79932A17 |
US $277.66 |
||
|
56
|
56
26856 Bushing, nylon-indicator gear |
26856 |
US $4.90 |
||
