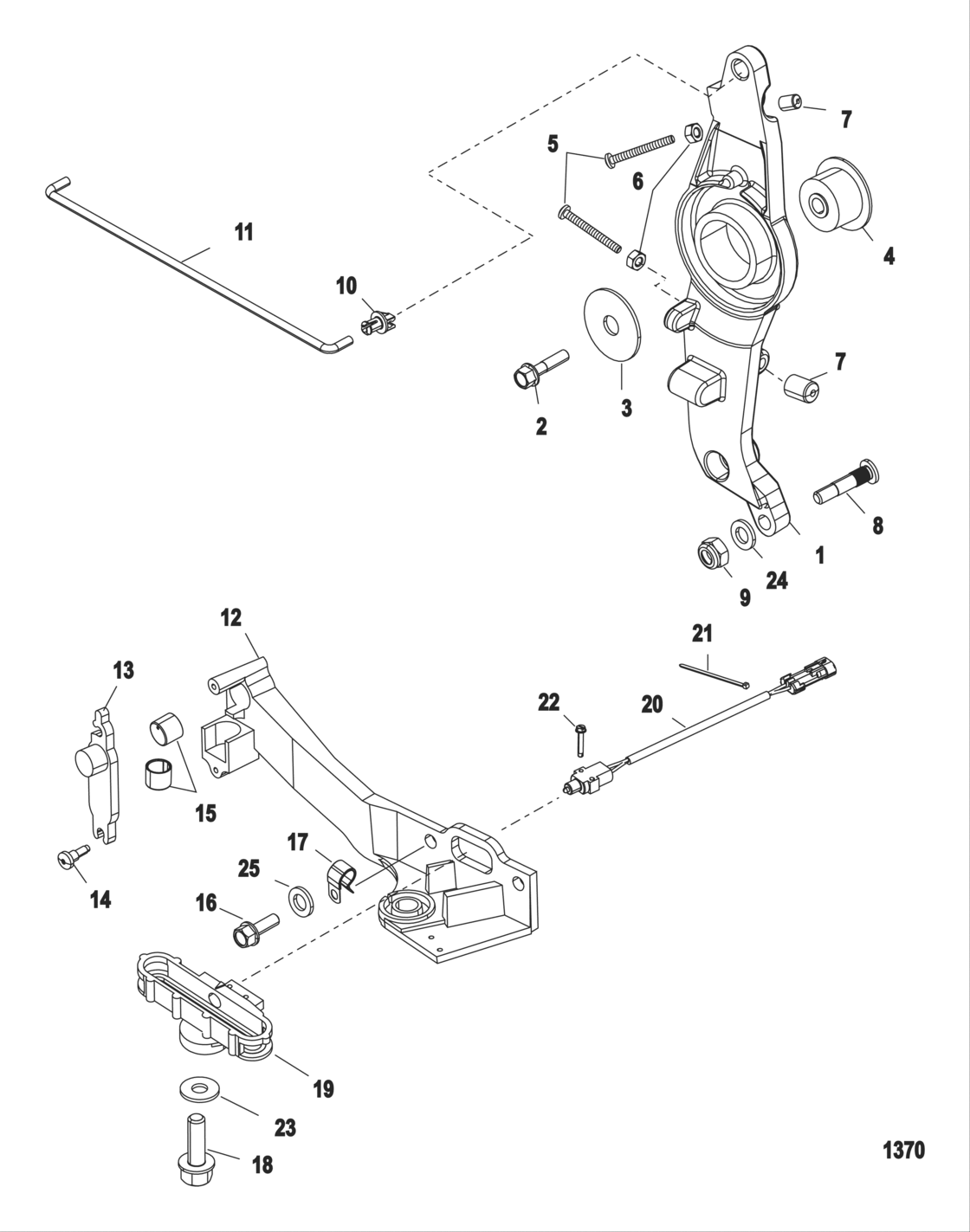

Throttle Linkage Diagram Mercury-Mercruiser E200
- Engine Capacity
- 3.0
- Power
- 200
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 1B417702 THRU 1B504988
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8252682 Lever-throttle |
8252682 |
US $115.66 |
||
| replacement | |||||
|
1
|
1
8M0040987 Lever |
8M0040987 |
US $115.66 |
||
|
2
|
2
81893435 Screw |
81893435 |
US $4.03 |
||
|
3
|
3
36042 Washer, ignition plate screw |
36042 |
US $4.53 |
||
|
4
|
4
821113 Bushing |
821113 |
US $25.62 |
||
|
5
|
5
40124 Screw |
40124 |
US $11.94 |
||
|
6
|
6
400212 Nut, stainless steel |
400212 |
US $2.43 |
||
|
7
|
7
42942 CAP |
42942 |
US $1.80 |
||
|
8
|
8
42927 New Genuine Part |
42927 |
US $15.18 |
||
|
9
|
9
401386 Nut, stainless steel |
401386 |
US $5.22 |
||
|
10
|
10
932481 Bushing |
932481 |
US $16.54 |
||
|
11
|
11
8583541 New Genuine Part |
8583541 |
US $26.78 |
||
|
12
|
12
8240102 New Genuine Part |
8240102 |
US $49.33 |
||
| replacement | |||||
|
12
|
12
824010T05 Bracket Anchor |
824010T05 |
US $49.33 |
||
|
13
|
13
824016 Latch |
824016 |
US $8.46 |
||
|
14
|
14
42975 Drive screw |
42975 |
US $2.22 |
||
|
15
|
15
824015 New Genuine Part |
824015 |
US $5.22 |
||
|
16
|
16
82155025 Screw |
82155025 |
US $2.78 |
||
|
17
|
17
859172 Clamp |
859172 |
US $4.99 |
||
|
18
|
18
82155025 Screw |
82155025 |
US $2.78 |
||
|
19
|
19
896662 New Genuine Part |
896662 |
US $125.55 |
||
| replacement | |||||
|
19
|
19
8M0039052 Bracket Slide |
8M0039052 |
US $125.55 |
||
|
20
|
20
889514A01 Switch |
889514A01 |
US $58.78 |
||
| replacement | |||||
|
20
|
20
8M0052939 Switch |
8M0052939 |
US $69.21 |
||
|
21
|
21
816311T Tie Strap (8.00 Inches) |
816311T |
US $0.51 |
||
|
22
|
22
82470620 Screw |
82470620 |
US $1.50 |
||
|
23
|
23
43430 Washer, upper mount screw |
43430 |
US $2.78 |
||
|
24
|
24
35459 Washer, throttle lever pin |
35459 |
US $1.50 |
||
|
25
|
25
36001 Washer, water pump body screw |
36001 |
US $1.15 |
||
