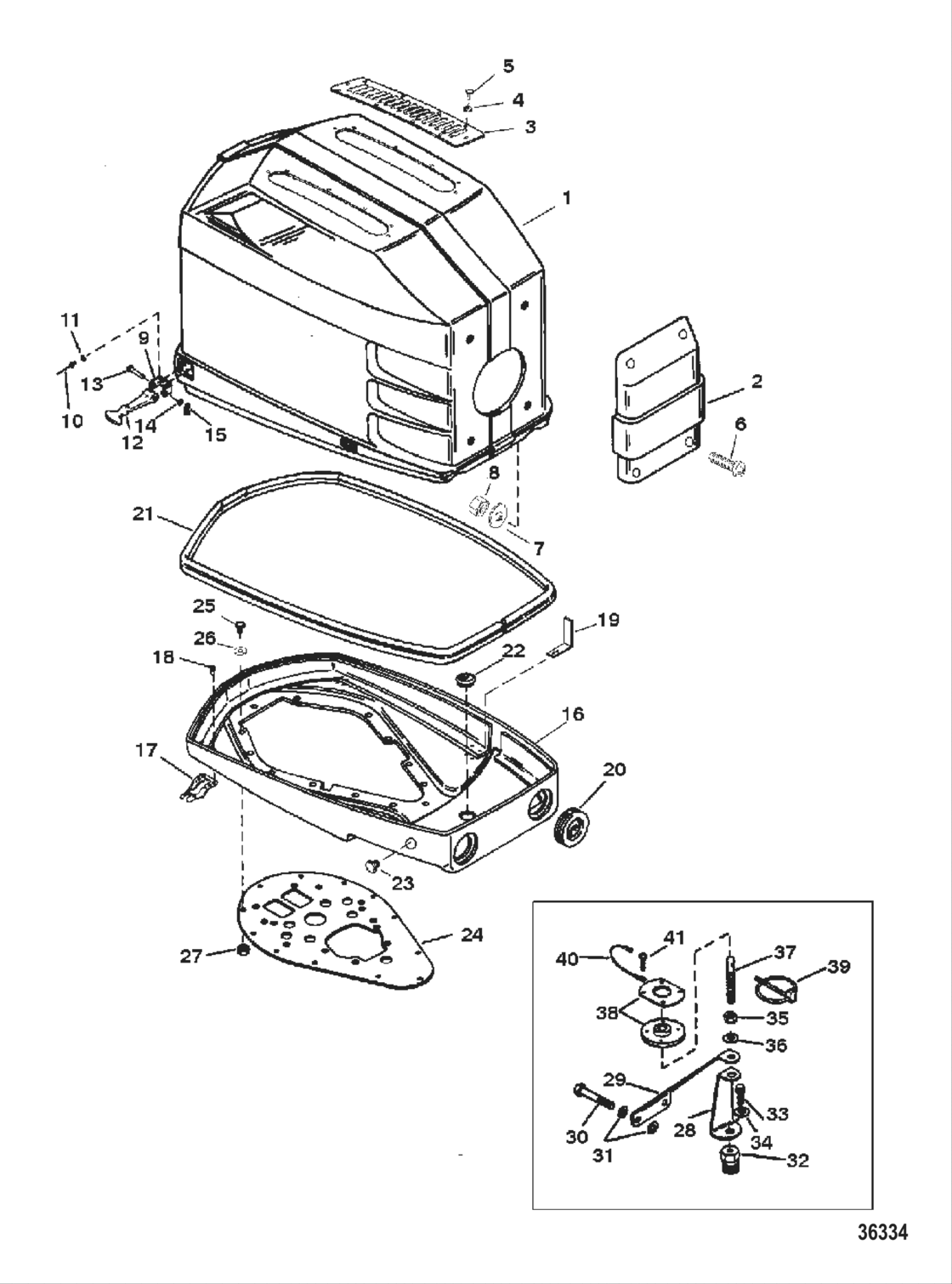

Cowling Diagram Mercury-Mercruiser E300 S3000
- Power
- 300
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0D181027 & Up
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
848290A15
Top Cowl Assembly
|
848290A15 |
— | ||
|
2
|
2
848291
New Genuine Part
|
848291 |
— | ||
|
3
|
3
788582 New Genuine Part |
788582 |
US $119.58 |
||
|
4
|
4
57238 Washer |
57238 |
US $1.65 |
||
|
5
|
5
12147 Pop rivet |
12147 |
US $0.82 |
||
|
6
|
6
37571 Screw, trim cover to bottom cowl |
37571 |
US $2.93 |
||
|
7
|
7
56681 Washer, throttle cable |
56681 |
US $1.62 |
||
|
8
|
8
29488 Nut, mounting bracket to hydraulic pump |
29488 |
US $4.06 |
||
| replacement | |||||
|
8
|
8
826709106 Nut, stainless steel |
826709106 |
US $4.06 |
||
|
9
|
9
71602 New Genuine Part |
71602 |
US $26.51 |
||
|
10
|
10
816771 Rivet |
816771 |
US $1.31 |
||
|
11
|
11
847883 Washer |
847883 |
US $3.82 |
||
|
12
|
12
817708 New Genuine Part |
817708 |
US $31.98 |
||
|
13
|
13
58712 Pin Clevis |
58712 |
US $24.80 |
||
|
14
|
14
847883 Washer |
847883 |
US $3.82 |
||
|
15
|
15
21071 Cotter pin, shift lever |
21071 |
US $3.25 |
||
| replacement | |||||
|
15
|
15
210711 Cotter pin |
210711 |
US $4.08 |
||
|
16
|
16
848164A3 Bottom Cowl |
848164A3 |
US $1,533.74 |
||
| replacement | |||||
|
16
|
16
848164T3 Bottom Cowl |
848164T3 |
US $1,533.74 |
||
|
17
|
17
13734 New Genuine Part |
13734 |
US $24 |
||
|
18
|
18
848172 Rivet (Pop Open) |
848172 |
US $3.89 |
||
|
19
|
19
848165 Brace-pan |
848165 |
US $86.78 |
||
|
20
|
20
8177133 Grommet |
8177133 |
US $34.82 |
||
|
21
|
21
8177121 New Genuine Part |
8177121 |
US $151.87 |
||
| replacement | |||||
|
21
|
21
817712003 Seal (6.79 Feet) |
817712003 |
US $151.87 |
||
|
22
|
22
815784 Cap, plug |
815784 |
US $1.62 |
||
|
23
|
23
90585 Plug, induction silencer cover |
90585 |
US $16.22 |
||
|
24
|
24
8221881 New Genuine Part |
8221881 |
US $468.90 |
||
|
25
|
25
38601 Screw, solenoid bottom cowl |
38601 |
US $1.62 |
||
|
26
|
26
29245 Washer, stainless steel, water pump body stud |
29245 |
US $1.28 |
||
|
27
|
27
35045 Nut |
35045 |
US $3.01 |
||
| replacement | |||||
|
27
|
27
826709109 Nut, stainless steel |
826709109 |
US $3.71 |
||
|
28
|
28
8218771 New Genuine Part |
8218771 |
US $105.15 |
||
|
29
|
29
821878 New Genuine Part |
821878 |
US $122.18 |
||
|
30
|
30
821933 Screw |
821933 |
US $24.67 |
||
|
31
|
31
847539 Washer |
847539 |
US $3.01 |
||
|
32
|
32
821881
Pipe Plug
|
821881 |
— | ||
|
33
|
33
818146 Screw |
818146 |
US $67.25 |
||
|
34
|
34
847541 Washer |
847541 |
US $3.71 |
||
|
35
|
35
71852 Nut |
71852 |
US $5.09 |
||
|
36
|
36
74758 Washer |
74758 |
US $16.11 |
||
|
37
|
37
8218791 New Genuine Part |
8218791 |
US $227.47 |
||
|
38
|
38
821880A2 Support assy-cowl |
821880A2 |
US $113.78 |
||
| replacement | |||||
|
38
|
38
821880A3 New Genuine Part |
821880A3 |
US $113.78 |
||
|
39
|
39
848126A1 Torsion clip assy |
848126A1 |
US $13.66 |
||
|
40
|
40
88238A4
New Genuine Part
|
88238A4 |
— | ||
| replacement | |||||
|
40
|
40
88238T01 Cable Assembly |
88238T01 |
US $26.11 |
||
|
41
|
41
821579 Screw |
821579 |
US $4.18 |
||
|
NI
|
NI
849850A1 Decal Set Basic |
849850A1 |
US $86.61 |
||
|
NI
|
NI
849850A3
Decal Set Patch (98-99)
|
849850A3 |
— | ||
|
NI
|
NI
840323A12
Decal Set Patch (2000)
|
840323A12 |
— | ||
|
NI
|
NI
821877A2 New Genuine Part |
821877A2 |
US $437.36 |
||
