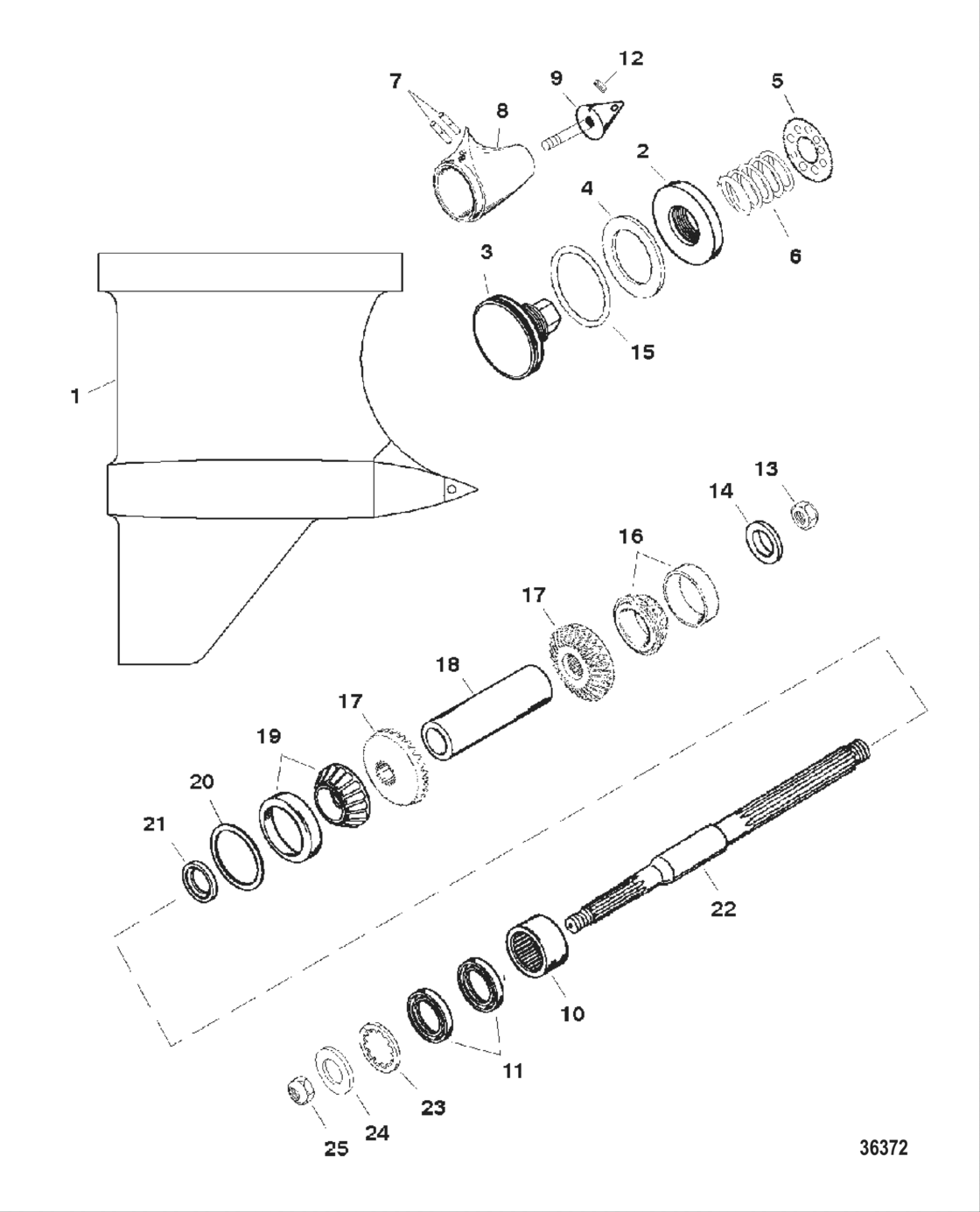

Gear Housing (Prop Shaft)(Iv Ssm) Diagram Mercury-Mercruiser E300 S3000
- Power
- 300
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0D181027 & Up
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
818877A14 Gear Housing Assembly |
818877A14 |
US $8,048.21 |
||
| replacement | |||||
|
1
|
1
818877A20 Gear Housing Assembly |
818877A20 |
US $9,082.96 |
||
|
2
|
2
65683 Nut |
65683 |
US $122.34 |
||
|
3
|
3
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
4
|
4
65690 Washer |
65690 |
US $45.25 |
||
|
5
|
5
65682 New Genuine Part |
65682 |
US $60.18 |
||
|
6
|
6
65691 Spring |
65691 |
US $45.87 |
||
|
7
|
7
23803 Pin |
23803 |
US $5.62 |
||
|
8
|
8
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
9
|
9
87265 Screw |
87265 |
US $220.38 |
||
|
10
|
10
65697 Bearing Roller |
65697 |
US $31.44 |
||
| replacement | |||||
|
10
|
10
8M0050403 Bearing Roller |
8M0050403 |
US $31.44 |
||
|
11
|
11
16553 Seal Oil |
16553 |
US $53.87 |
||
|
12
|
12
65700 New Genuine Part |
65700 |
US $4.70 |
||
|
13
|
13
25599 Nut, , upper swivel shaft |
25599 |
US $10.54 |
||
| replacement | |||||
|
13
|
13
8M2014641 Nut (.750-16) |
8M2014641 |
US $10.54 |
||
|
14
|
14
85354 Bushing |
85354 |
US $79.50 |
||
|
15
|
15
85355 Quad Ring |
85355 |
US $3.31 |
||
|
16
|
16
35924A1
Bearing Assembly (Front)
|
35924A1 |
— | ||
| replacement | |||||
|
16
|
16
35924T1 Bearing Assembly (Front) |
35924T1 |
US $90.61 |
||
|
17
|
17
818931A2 Gear Set (1 Pinion/1 Driven) |
818931A2 |
US $1,454.58 |
||
|
18
|
18
39712 Spacer |
39712 |
US $214.69 |
||
|
19
|
19
65695A1 Bearing Assembly (Rear) |
65695A1 |
US $115.84 |
||
|
20
|
20
38657A1
Shim assembly
|
38657A1 |
— | ||
|
21
|
21
39696 Washer |
39696 |
US $91.20 |
||
|
22
|
22
65711 Propeller Shaft |
65711 |
US $2,267.15 |
||
| replacement | |||||
|
22
|
22
8M0076741 PROPSHAFT |
8M0076741 |
US $2,267.15 |
||
|
23
|
23
39701 Washer, splined |
39701 |
US $14.24 |
||
|
24
|
24
39698 Washer, flat |
39698 |
US $14.24 |
||
|
25
|
25
52707A1
Prop Nut Kit (.750-16)
|
52707A1 |
— | ||
| replacement | |||||
|
25
|
25
52707Q1 Prop Nut Kit (.750-16) |
52707Q1 |
US $19.24 |
||
|
NI
|
NI
818877A13 Gearcase Assembly (Complete) |
818877A13 |
US $19,463.89 |
||
| replacement | |||||
|
NI
|
NI
8M0084204 G CASE OB IV SSM |
8M0084204 |
US $17,246.48 |
||
