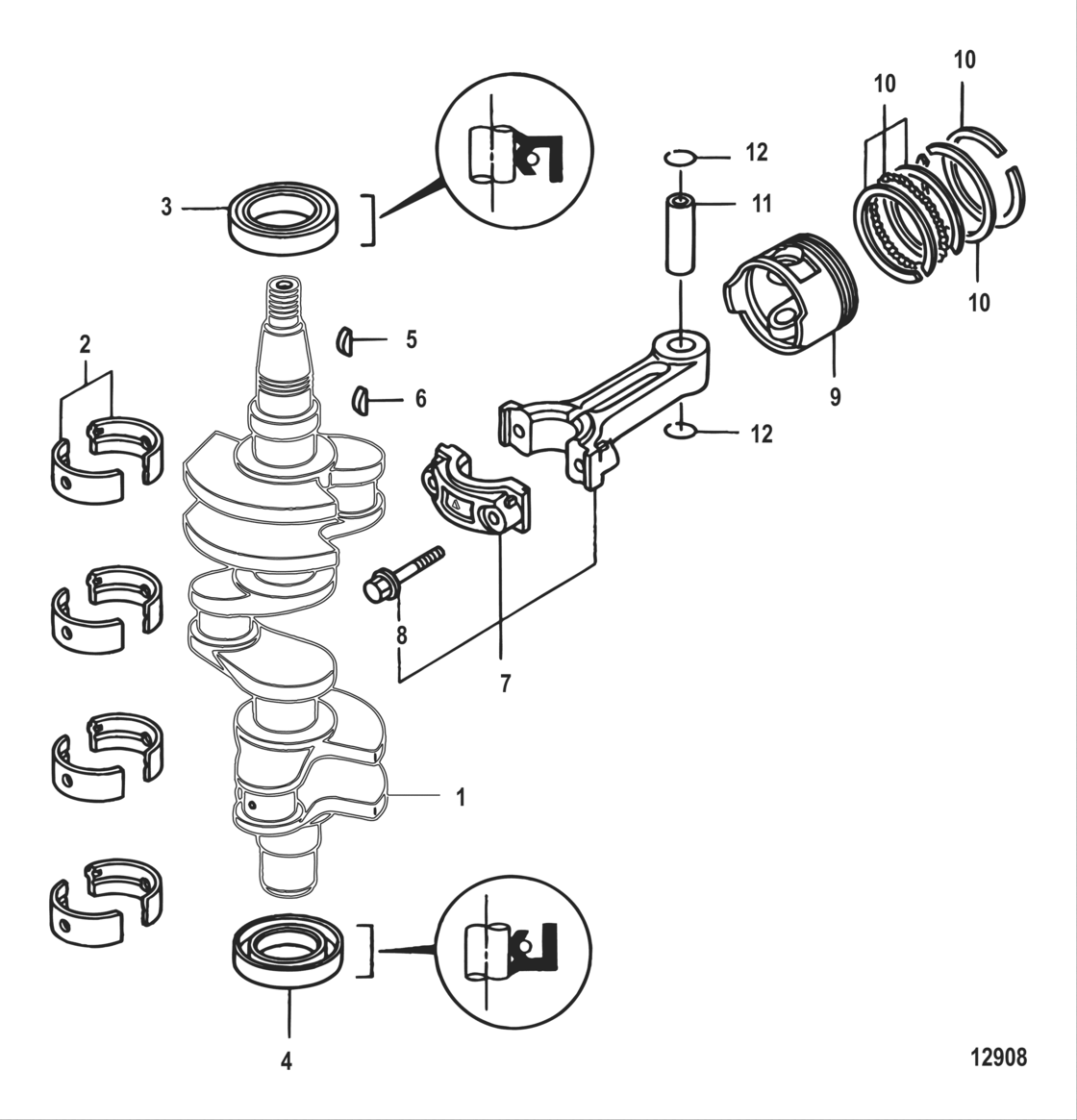

Crankshaft, Pistons And Connecting Rods Diagram Mercury-Mercruiser F25
- Power
- 25
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 0R106999 & Up
- Кол-в цилиндров
- 3
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
898101T38 Crankshaft Assembly[0R130205] & Below |
898101T38 |
US $1,373.17 |
||
| replacement | |||||
|
1
|
1
889246T32 Crankshaft Assembly[0R130205] & Below |
889246T32 |
US $1,373.17 |
||
|
1
|
1
889246T32 Crankshaft Assembly[0R130206] & Up |
889246T32 |
US $1,373.17 |
||
|
2
|
2
898101T08 Bearing Thrust - Red |
898101T08 |
US $37.16 |
||
|
2
|
2
898101T07 Bearing Thrust - Blue |
898101T07 |
US $36.30 |
||
|
3
|
3
855681002 Seal, oil, upper |
855681002 |
US $41.19 |
||
|
4
|
4
898101123 Seal, oil, lower |
898101123 |
US $42.72 |
||
|
5
|
5
160531 Key |
160531 |
US $17.20 |
||
|
6
|
6
825666001 Key, timing pulley |
825666001 |
US $4.90 |
||
|
7
|
7
834961T03 CONNECTING ROD ASSEMBLY |
834961T03 |
US $108.73 |
||
| replacement | |||||
|
7
|
7
8M0124940 CONNECTING ROD |
8M0124940 |
US $117.15 |
||
|
8
|
8
8035092 Bolt |
8035092 |
US $21.10 |
||
|
9
|
9
898103A08 Piston assembly |
898103A08 |
US $192.51 |
||
|
10
|
10
898103T35 Ring set, pistonServices one piston |
898103T35 |
US $63.17 |
||
|
11
|
11
803521 Pin, piston |
803521 |
US $17.15 |
||
| replacement | |||||
|
11
|
11
898103113 Pin, piston |
898103113 |
US $18.51 |
||
|
12
|
12
160573 E ring |
160573 |
US $2.16 |
||
|
NI
|
NI
898103T33 New Genuine Part30 Horsepower [0R122288] & Below |
898103T33 |
US $5,681.01 |
||
| replacement | |||||
|
NI
|
NI
889246T30 PH 30 4S30 Horsepower [0R122288] & Below |
889246T30 |
US $5,681.01 |
||
|
NI
|
NI
898103A87 New Genuine Part30 Horsepower [0R122289] THRU [0R685370] |
898103A87 |
US $5,681.01 |
||
| replacement | |||||
|
NI
|
NI
889246T30 PH 30 4S30 Horsepower [0R122289] THRU [0R685370] |
889246T30 |
US $5,681.01 |
||
|
NI
|
NI
8M0123817
Short Block
30 Horsepower [0R685371] & Up |
8M0123817 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0138733
SHORT BLOCK
30 Horsepower [0R685371] & Up |
8M0138733 |
— | ||
|
NI
|
NI
898103T34 New Genuine Part25 Horsepower [0R685370] & Below |
898103T34 |
US $5,382.86 |
||
|
NI
|
NI
8M0123819
Short Block
25 Horsepower [0R685371] & Up |
8M0123819 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0138735
SHORT BLOCK
25 Horsepower [0R685371] & Up |
8M0138735 |
— | ||
|
NI
|
NI
898101A06 Gasket set, powerhead |
898101A06 |
US $259.37 |
||
| replacement | |||||
|
NI
|
NI
8M0079064 GASKET SET |
8M0079064 |
US $272.11 |
||
