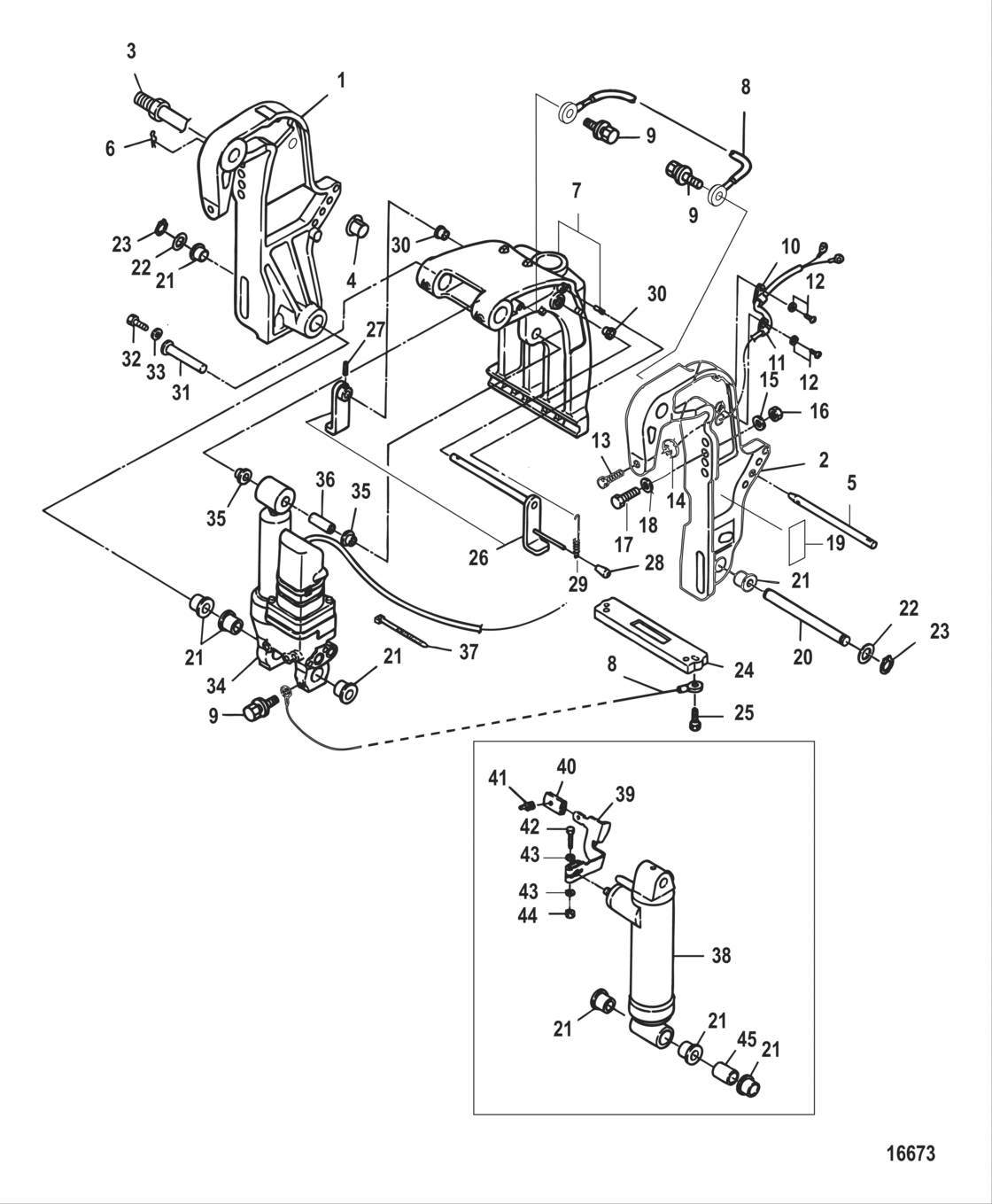

Clamp Brackets Power Trim And Gas Assist Diagram Mercury-Mercruiser F30
- Power
- 30
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 0R106999 & Up
- Кол-в цилиндров
- 3
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
804038T01 Clamp Bracket StarboardPower Trim |
804038T01 |
US $246.67 |
||
|
1
|
1
804038T02 Clamp Bracket StarboardGas Assist |
804038T02 |
US $255.66 |
||
|
2
|
2
804039T01 Clamp Bracket PortPower Trim [0R247056] & Below |
804039T01 |
US $182.11 |
||
| replacement | |||||
|
2
|
2
804039T03 Clamp Bracket PortPower Trim [0R247056] & Below |
804039T03 |
US $182.11 |
||
|
2
|
2
804039T03 Clamp Bracket PortPower Trim [0R247057] & Up |
804039T03 |
US $182.11 |
||
|
2
|
2
804039T02 Clamp Bracket PortGas Assist [0R247237] & Below |
804039T02 |
US $258 |
||
|
2
|
2
804039T04 Clamp Bracket PortGas Assist [0R247238] & Up |
804039T04 |
US $187.55 |
||
|
3
|
3
853769001 Tilt Tube |
853769001 |
US $195.25 |
||
|
4
|
4
161764 Bushing |
161764 |
US $15.61 |
||
|
5
|
5
16198003 New Genuine Part |
16198003 |
US $48.22 |
||
|
6
|
6
8150266 Cotter pin |
8150266 |
US $4.56 |
||
|
7
|
7
813029T22 Swivel BracketPower Trim [0R247056] & Below |
813029T22 |
US $1,194.34 |
||
|
7
|
7
813029T24 Swivel BracketPower Trim [0R247057] & Up |
813029T24 |
US $998.45 |
||
|
8
|
8
898101089 Wire, ground |
898101089 |
US $12.06 |
||
|
9
|
9
8230427 Bolt |
8230427 |
US $3.71 |
||
|
10
|
10
953951 Clamp |
953951 |
US $8.35 |
||
|
11
|
11
898101244 Clamp |
898101244 |
US $2.90 |
||
|
12
|
12
855544020 Screw |
855544020 |
US $4.53 |
||
| replacement | |||||
|
12
|
12
8M0051381 Screw |
8M0051381 |
US $4.53 |
||
|
13
|
13
162635
Clamp screw
|
162635 |
— | ||
|
14
|
14
95379
Pad, thumb screw
|
95379 |
— | ||
|
15
|
15
898101216 Washer |
898101216 |
US $11.47 |
||
| replacement | |||||
|
15
|
15
879194341 WASHER |
879194341 |
US $11.47 |
||
|
16
|
16
95374002 Nut |
95374002 |
US $16 |
||
|
17
|
17
802619 Bolt |
802619 |
US $23.66 |
||
|
18
|
18
953928 Washer |
953928 |
US $10.08 |
||
|
19
|
19
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
20
|
20
16085004 Pin, lower |
16085004 |
US $49.86 |
||
| replacement | |||||
|
20
|
20
8M0091499 PIN-CYLINDER |
8M0091499 |
US $38.11 |
||
|
21
|
21
161765 Bushing |
161765 |
US $10.42 |
||
|
22
|
22
853822002 Washer |
853822002 |
US $4.30 |
||
|
23
|
23
804027003 C ring |
804027003 |
US $5.90 |
||
|
24
|
24
823912002 New Genuine Part |
823912002 |
US $37.33 |
||
|
25
|
25
82304224 Bolt |
82304224 |
US $3.82 |
||
| replacement | |||||
|
25
|
25
879194264 Bolt |
879194264 |
US $3.82 |
||
|
26
|
26
898101243
New Genuine Part
Power Trim |
898101243 |
— | ||
| replacement | |||||
|
26
|
26
8M0075222
ORD 8M0075224
Power Trim |
8M0075222 |
— | ||
|
26
|
26
815094006
New Genuine Part
Gas Assist |
815094006 |
— | ||
| replacement | |||||
|
26
|
26
8M0075225 TILT STOPPERGas Assist |
8M0075225 |
US $185.01 |
||
|
27
|
27
95218017 Pin, spring |
95218017 |
US $4.29 |
||
|
28
|
28
16208
New Genuine Part
|
16208 |
— | ||
|
29
|
29
95383010 Spring |
95383010 |
US $10.21 |
||
|
30
|
30
95286027 Collar |
95286027 |
US $4.40 |
||
|
31
|
31
851874002 Pin, cylinder, upper |
851874002 |
US $27.08 |
||
| replacement | |||||
|
31
|
31
8M0091498 Pin Cylinder |
8M0091498 |
US $22.03 |
||
|
32
|
32
823042038 Bolt |
823042038 |
US $6.68 |
||
| replacement | |||||
|
32
|
32
879194248 Bolt |
879194248 |
US $5.46 |
||
|
33
|
33
16238 Washer |
16238 |
US $6.72 |
||
| replacement | |||||
|
33
|
33
898101937 Washer |
898101937 |
US $6.72 |
||
|
34
|
34
851873T03 Power trim and tilt assy |
851873T03 |
US $1,698.43 |
||
|
35
|
35
16176009 Bushing |
16176009 |
US $7.94 |
||
|
36
|
36
16176010 Bushing |
16176010 |
US $4.88 |
||
|
37
|
37
816311T Tie Strap (8.00 Inches) |
816311T |
US $0.51 |
||
|
38
|
38
898103T32 New Genuine Part |
898103T32 |
US $1,313.82 |
||
|
39
|
39
898101233 Lock lever |
898101233 |
US $106.45 |
||
|
40
|
40
898101234 New Genuine Part |
898101234 |
US $13.79 |
||
|
41
|
41
853776 New Genuine Part |
853776 |
US $4.40 |
||
| replacement | |||||
|
41
|
41
8M0051399 Stopper |
8M0051399 |
US $4.40 |
||
|
42
|
42
16105 Bolt, starter shaft |
16105 |
US $1.97 |
||
|
43
|
43
895106 Washer, stainless steel |
895106 |
US $2.90 |
||
| replacement | |||||
|
43
|
43
16826 Washer, stainless steel |
16826 |
US $3.40 |
||
|
44
|
44
853722022 Nut |
853722022 |
US $2.90 |
||
|
45
|
45
898101235 Collar |
898101235 |
US $31.01 |
||
