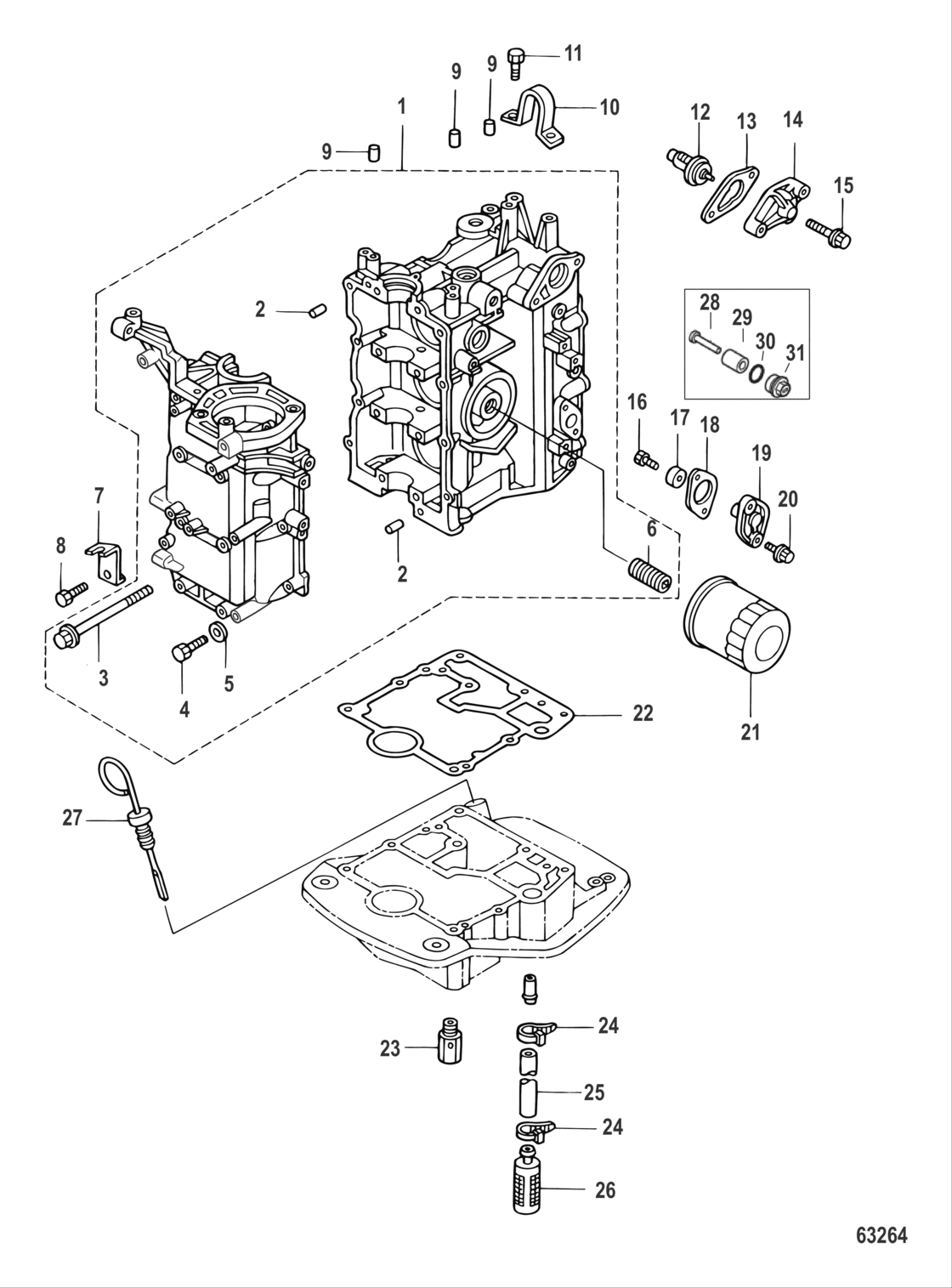

Cylinder Block Diagram Mercury-Mercruiser F30
- Power
- 30
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 0R106999 & Up
- Кол-в цилиндров
- 3
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
898101T42 Cylinder Block Assembly[0R685370] & Below |
898101T42 |
US $1,047.31 |
||
|
1
|
1
8M0123805
Cylinder Block Assembly
[0R685371] & Up |
8M0123805 |
— | ||
|
2
|
2
16119 Pin, dowel |
16119 |
US $6.72 |
||
|
3
|
3
855677003 Bolt |
855677003 |
US $7.42 |
||
| replacement | |||||
|
3
|
3
855677006 BOLT |
855677006 |
US $7.42 |
||
|
4
|
4
898101009 Screw |
898101009 |
US $3.14 |
||
|
5
|
5
895106 Washer, stainless steel |
895106 |
US $2.90 |
||
| replacement | |||||
|
5
|
5
16826 Washer, stainless steel |
16826 |
US $3.40 |
||
|
6
|
6
855677004 Bolt |
855677004 |
US $12.40 |
||
|
7
|
7
898101184 New Genuine PartRemote Control |
898101184 |
US $6.14 |
||
|
7
|
7
898101265 New Genuine PartTiller Handle |
898101265 |
US $8 |
||
|
8
|
8
823042038 Bolt |
823042038 |
US $6.68 |
||
| replacement | |||||
|
8
|
8
879194248 Bolt |
879194248 |
US $5.46 |
||
|
9
|
9
16119 Pin, dowel |
16119 |
US $6.72 |
||
|
10
|
10
855550002 New Genuine Part |
855550002 |
US $20.90 |
||
| replacement | |||||
|
10
|
10
855550003 New Genuine Part |
855550003 |
US $20.90 |
||
|
11
|
11
16830009 Bolt |
16830009 |
US $3.25 |
||
|
12
|
12
855676002
New Genuine Part
|
855676002 |
— | ||
| replacement | |||||
|
12
|
12
8M0119207 THERMOSTAT |
8M0119207 |
from US $115.58 |
||
|
13
|
13
898101194 Gasket |
898101194 |
US $6.05 |
||
| replacement | |||||
|
13
|
13
853702005 Gasket |
853702005 |
US $6.78 |
||
|
14
|
14
8537052 New Genuine Part |
8537052 |
US $23.78 |
||
|
15
|
15
82304224 Bolt |
82304224 |
US $3.82 |
||
| replacement | |||||
|
15
|
15
879194264 Bolt |
879194264 |
US $3.82 |
||
|
16
|
16
16832 BoltDesign I |
16832 |
US $3.82 |
||
|
17
|
17
823912 New Genuine PartDesign I |
823912 |
US $10.18 |
||
|
18
|
18
895150 GasketDesign I |
895150 |
US $4.75 |
||
| replacement | |||||
|
18
|
18
895150001 Gasket, anode capDesign I |
895150001 |
US $4.75 |
||
|
19
|
19
895151 Anode plugDesign I |
895151 |
US $23.78 |
||
| replacement | |||||
|
19
|
19
895151001 Plug-anodeDesign I |
895151001 |
US $28.48 |
||
|
20
|
20
167051 BoltDesign I |
167051 |
US $6.27 |
||
|
21
|
21
822626K03 FILTER, Oil |
822626K03 |
US $20.28 |
||
| replacement | |||||
|
21
|
21
8M0162831 FILTER, Oil |
8M0162831 |
US $20.38 |
||
|
22
|
22
835427T04 Gasket, engine base |
835427T04 |
US $84.86 |
||
|
23
|
23
898101142 New Genuine Part |
898101142 |
US $65.89 |
||
|
24
|
24
898101111 Tie strap |
898101111 |
US $0.51 |
||
| replacement | |||||
|
24
|
24
816311T Tie Strap (8.00 Inches) |
816311T |
US $0.51 |
||
|
25
|
25
895153001 Hose, rubber |
895153001 |
US $74.64 |
||
| replacement | |||||
|
25
|
25
8M0057119 HOSE |
8M0057119 |
US $74.64 |
||
|
26
|
26
895152001 Strainer, Oil |
895152001 |
US $17.44 |
||
| replacement | |||||
|
26
|
26
895152003 Strainer, Oil |
895152003 |
US $17.44 |
||
|
27
|
27
898101122 New Genuine Part |
898101122 |
US $43.89 |
||
|
28
|
28
888786 ScrewDesign II |
888786 |
US $1.39 |
||
|
29
|
29
8M0065073 AnodeDesign II |
8M0065073 |
US $7.79 |
||
|
30
|
30
804840010 O-RingDesign II |
804840010 |
US $1.22 |
||
|
31
|
31
8M0065071 Anode PlugDesign II |
8M0065071 |
US $23.97 |
||
|
NI
|
NI
898103T33 New Genuine Part30 Horsepower [0R122288] & Below |
898103T33 |
US $5,681.01 |
||
| replacement | |||||
|
NI
|
NI
889246T30 PH 30 4S30 Horsepower [0R122288] & Below |
889246T30 |
US $5,681.01 |
||
|
NI
|
NI
898103A87 New Genuine Part30 Horsepower [0R122289] THRU [0R685370] |
898103A87 |
US $5,681.01 |
||
| replacement | |||||
|
NI
|
NI
889246T30 PH 30 4S30 Horsepower [0R122289] THRU [0R685370] |
889246T30 |
US $5,681.01 |
||
|
NI
|
NI
8M0123819
Short Block
30 Horsepower [0R685371] & Up |
8M0123819 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0138735
SHORT BLOCK
30 Horsepower [0R685371] & Up |
8M0138735 |
— | ||
|
NI
|
NI
898103T34 New Genuine Part25 Horsepower [0R685370] & Below |
898103T34 |
US $5,382.86 |
||
|
NI
|
NI
8M0123817
Short Block
25 Horsepower [0R685371] & Up |
8M0123817 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0138733
SHORT BLOCK
25 Horsepower [0R685371] & Up |
8M0138733 |
— | ||
|
NI
|
NI
898101A06 Gasket set, powerhead |
898101A06 |
US $259.37 |
||
| replacement | |||||
|
NI
|
NI
8M0079064 GASKET SET |
8M0079064 |
US $272.11 |
||
