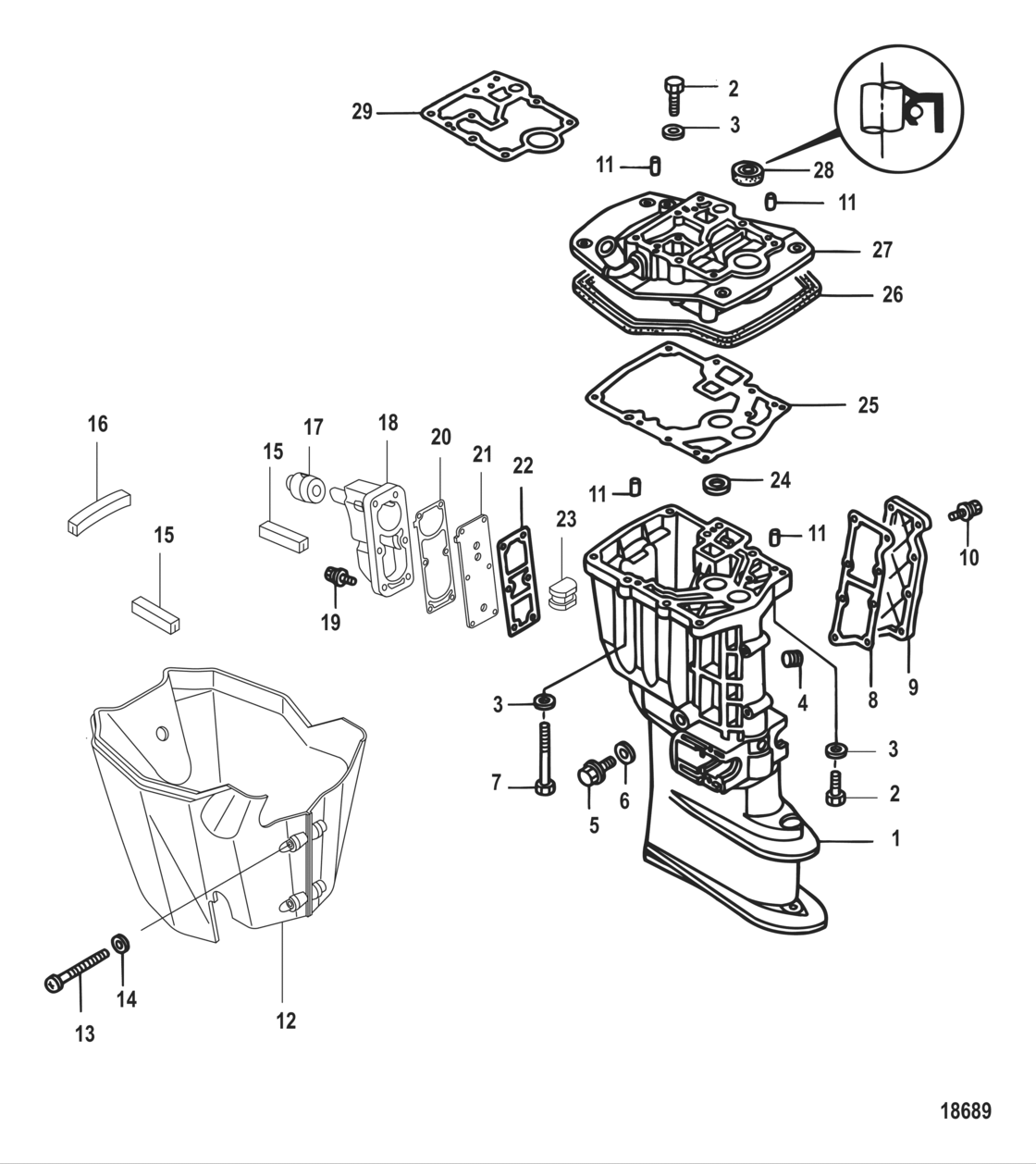

Driveshaft Housing Diagram Mercury-Mercruiser F30
- Power
- 30
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 0R106999 & Up
- Кол-в цилиндров
- 3
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
803724T02 Housing DriveshaftShort |
803724T02 |
US $739.04 |
||
|
1
|
1
803725T02
Housing Driveshaft
Long |
803725T02 |
— | ||
| replacement | |||||
|
1
|
1
8M0192164 DRIVESHAFT HSG (L)Long |
8M0192164 |
US $829.16 |
||
|
2
|
2
823042048 Bolt |
823042048 |
US $3.47 |
||
| replacement | |||||
|
2
|
2
823042079 BOLT |
823042079 |
US $3.47 |
||
|
3
|
3
895106001 Washer |
895106001 |
US $3.14 |
||
| replacement | |||||
|
3
|
3
16192 Washer |
16192 |
US $3.14 |
||
|
4
|
4
803593 PlugAs needed |
803593 |
US $9.15 |
||
|
5
|
5
895136 Bolt |
895136 |
US $16 |
||
| replacement | |||||
|
5
|
5
8M0111615 Drain Plug Bolt |
8M0111615 |
US $16 |
||
|
6
|
6
895146 Washer |
895146 |
US $5.47 |
||
|
7
|
7
823042047 Bolt |
823042047 |
US $11.25 |
||
| replacement | |||||
|
7
|
7
898103227 BOLT |
898103227 |
US $11.25 |
||
|
8
|
8
854617001 Gasket |
854617001 |
US $13.55 |
||
|
9
|
9
853577001 Cover-drain |
853577001 |
US $19.55 |
||
|
10
|
10
16830010 Bolt |
16830010 |
US $5.46 |
||
| replacement | |||||
|
10
|
10
167051 Bolt |
167051 |
US $6.27 |
||
|
11
|
11
16119 Pin, dowel |
16119 |
US $6.72 |
||
|
12
|
12
896116T New Genuine Part |
896116T |
US $164.45 |
||
|
12
|
12
896116T01 Skirt, camouflage |
896116T01 |
US $375.22 |
||
|
13
|
13
898101192 Screw, tapping |
898101192 |
US $5.10 |
||
|
14
|
14
895106 Washer, stainless steel |
895106 |
US $2.90 |
||
| replacement | |||||
|
14
|
14
16826 Washer, stainless steel |
16826 |
US $3.40 |
||
|
15
|
15
898101003 New Genuine Part |
898101003 |
US $5.76 |
||
|
16
|
16
898101002 New Genuine Part |
898101002 |
US $7.09 |
||
|
17
|
17
896631 Grommet |
896631 |
US $21.85 |
||
|
18
|
18
898101105 New Genuine Part |
898101105 |
US $33.44 |
||
|
19
|
19
167051 Bolt |
167051 |
US $6.27 |
||
|
20
|
20
898101106 Gasket, idle exhaust port cover |
898101106 |
US $11.47 |
||
| replacement | |||||
|
20
|
20
8M0099564 GASKET |
8M0099564 |
US $12.55 |
||
|
21
|
21
898101137 New Genuine Part |
898101137 |
US $21.68 |
||
|
22
|
22
895148001 Gasket |
895148001 |
US $15.73 |
||
|
23
|
23
898101086 Grommet |
898101086 |
US $5.15 |
||
|
24
|
24
95275002 New Genuine Part |
95275002 |
US $4.86 |
||
|
25
|
25
803663015 Gasket |
803663015 |
US $117.05 |
||
| replacement | |||||
|
25
|
25
803663T15 Gasket |
803663T15 |
US $117.05 |
||
|
26
|
26
852432001 Seal-rubber |
852432001 |
US $17.60 |
||
|
27
|
27
898101T61 New Genuine Part[0R685370] & Below |
898101T61 |
US $217.78 |
||
| replacement | |||||
|
27
|
27
8M0123807 Adapter Plate[0R685370] & Below |
8M0123807 |
US $234 |
||
|
27
|
27
8M0123807 Adapter Plate[0R685371] & Up |
8M0123807 |
US $234 |
||
|
28
|
28
8537072 Seal, oil |
8537072 |
US $13.86 |
||
|
29
|
29
835427T04 Gasket, engine base |
835427T04 |
US $84.86 |
||
|
NI
|
NI
898101A06 Gasket set, powerhead |
898101A06 |
US $259.37 |
||
| replacement | |||||
|
NI
|
NI
8M0079064 GASKET SET |
8M0079064 |
US $272.11 |
||
|
NI
|
NI
8M0128829 Housing Kit X-Long Extension |
8M0128829 |
US $943.18 |
||
