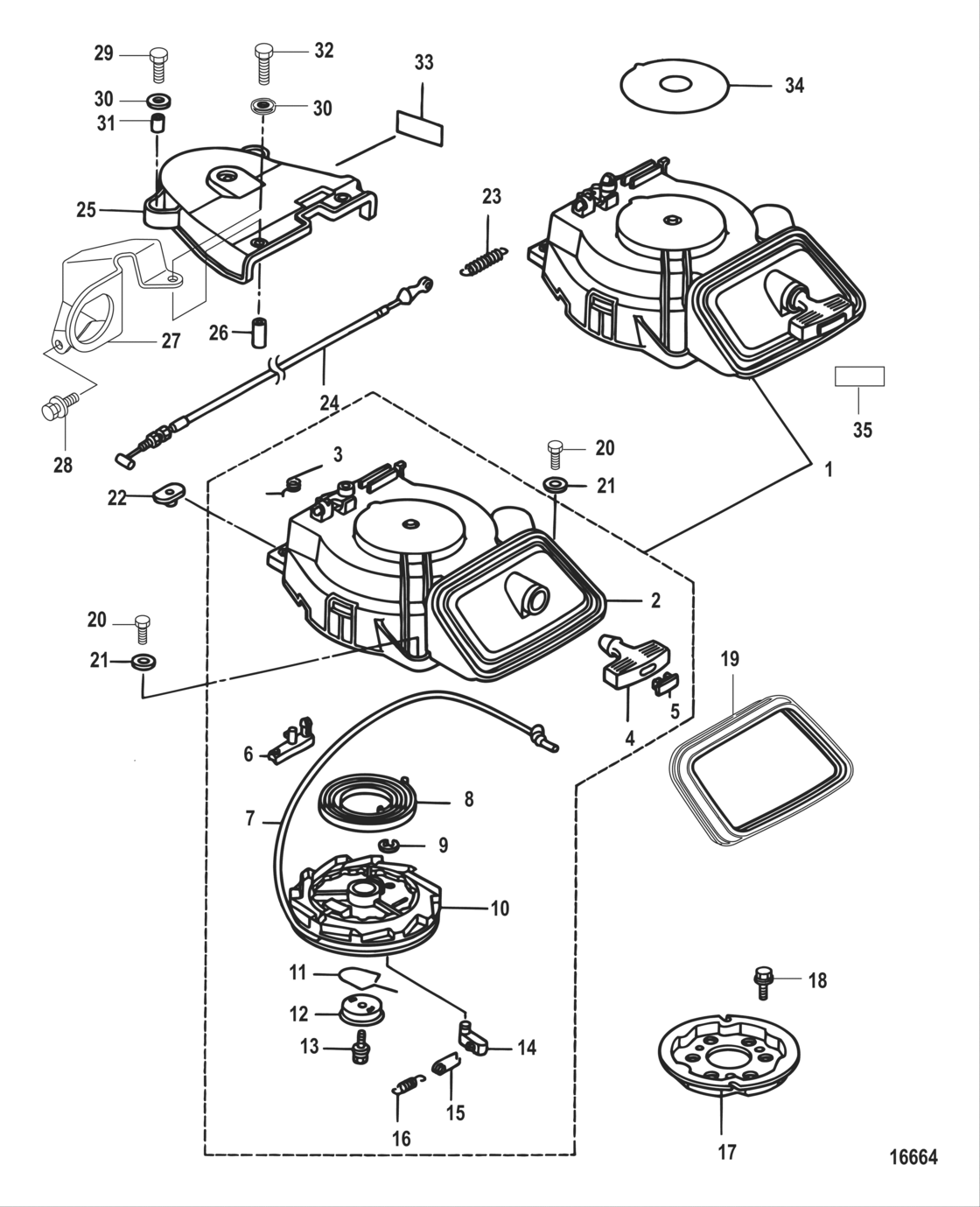

Recoil Starter Diagram Mercury-Mercruiser F30
- Power
- 30
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 0R106999 & Up
- Кол-в цилиндров
- 3
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
898103T13 New Genuine Part |
898103T13 |
US $323.10 |
||
| replacement | |||||
|
1
|
1
8M0126985 RECOIL STARTER |
8M0126985 |
US $375.28 |
||
|
2
|
2
898103T19 New Genuine Part |
898103T19 |
US $203.66 |
||
| replacement | |||||
|
2
|
2
8M0138746 STARTER HOUSING |
8M0138746 |
US $203.66 |
||
|
3
|
3
812645008 Spring |
812645008 |
US $6.03 |
||
|
4
|
4
898101182 New Genuine Part |
898101182 |
US $21.55 |
||
|
5
|
5
898101325 New Genuine Part |
898101325 |
US $15.54 |
||
|
6
|
6
804031002 Starter lock |
804031002 |
US $10.32 |
||
|
7
|
7
850057003 Rope, starter |
850057003 |
US $24.90 |
||
| replacement | |||||
|
7
|
7
8M0110715 Rope Starter |
8M0110715 |
US $24.90 |
||
|
8
|
8
804024008 Spring, starter |
804024008 |
US $39.22 |
||
|
9
|
9
852784001 E ring |
852784001 |
US $3.36 |
||
|
10
|
10
803717002 Reel |
803717002 |
US $49.44 |
||
|
11
|
11
852778010
Spring, friction
|
852778010 |
— | ||
|
12
|
12
812638002 Plate-friction |
812638002 |
US $12.06 |
||
|
13
|
13
812637002 Bolt |
812637002 |
US $4.75 |
||
| replacement | |||||
|
13
|
13
8M0126987 BOLT |
8M0126987 |
US $4.75 |
||
|
14
|
14
812635T03 New Genuine Part |
812635T03 |
from US $5.30 |
||
|
15
|
15
898101148 New Genuine Part |
898101148 |
US $9.28 |
||
|
16
|
16
812634004 Spring, return |
812634004 |
US $13.92 |
||
|
17
|
17
804035001 Pulley-starter |
804035001 |
US $31.78 |
||
|
18
|
18
8248324 Screw |
8248324 |
US $2.04 |
||
|
19
|
19
898101187 SEAL |
898101187 |
US $24.22 |
||
|
20
|
20
823042040 Bolt, stainless steel |
823042040 |
US $3.60 |
||
| replacement | |||||
|
20
|
20
16705 Bolt |
16705 |
US $3.60 |
||
|
21
|
21
895118002 Washer |
895118002 |
US $4.86 |
||
| replacement | |||||
|
21
|
21
953921 Washer, stainless steel |
953921 |
US $6.34 |
||
|
22
|
22
856949001 Nut |
856949001 |
US $5.33 |
||
| replacement | |||||
|
22
|
22
856949002 NUT |
856949002 |
US $5.33 |
||
|
23
|
23
898101185 Spring |
898101185 |
US $13.10 |
||
|
23
|
23
812645009 SpringJet Remote Control |
812645009 |
US $9.78 |
||
|
24
|
24
898101183 New Genuine Part |
898101183 |
US $86.22 |
||
|
24
|
24
898101634 Wire, lockJet Remote Control |
898101634 |
US $135.66 |
||
|
25
|
25
895133T01 New Genuine Part |
895133T01 |
US $30.45 |
||
|
26
|
26
855545002
Collar
|
855545002 |
— | ||
|
27
|
27
898101T19 New Genuine Part |
898101T19 |
US $51.10 |
||
|
28
|
28
8248324 Screw |
8248324 |
US $2.04 |
||
|
29
|
29
823042040 Bolt, stainless steel |
823042040 |
US $3.60 |
||
| replacement | |||||
|
29
|
29
16705 Bolt |
16705 |
US $3.60 |
||
|
30
|
30
895118002 Washer |
895118002 |
US $4.86 |
||
| replacement | |||||
|
30
|
30
953921 Washer, stainless steel |
953921 |
US $6.34 |
||
|
31
|
31
952868 Collar |
952868 |
US $3.25 |
||
|
32
|
32
823042039 Bolt |
823042039 |
US $3.47 |
||
| replacement | |||||
|
32
|
32
4000330 Screw, adaptor |
4000330 |
US $4.54 |
||
|
33
|
33
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
34
|
34
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
35
|
35
8M0012081 Decal Starting ProcedureJet 25 |
8M0012081 |
US $42 |
||
|
NI
|
NI
898103193
Decal, interferance
|
898103193 |
— | ||
