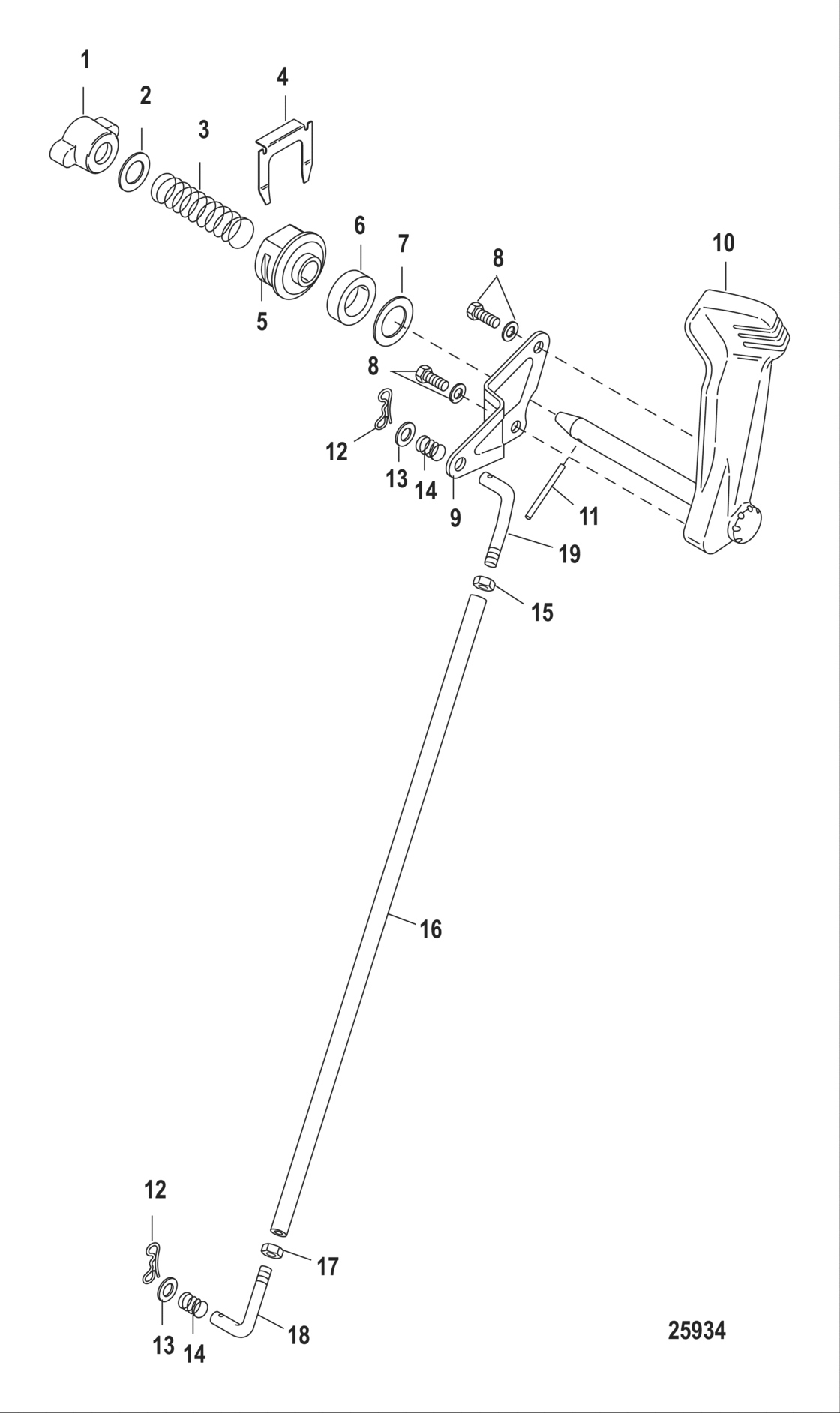

Shift Linkage Jet-Tiller Handle Diagram Mercury-Mercruiser F30
- Power
- 30
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 0R106999 & Up
- Кол-в цилиндров
- 3
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
898101797 New Genuine Part |
898101797 |
US $6.03 |
||
|
2
|
2
9539210 Washer |
9539210 |
US $4.75 |
||
|
3
|
3
898101640 Spring |
898101640 |
US $15.89 |
||
|
4
|
4
898101149 New Genuine Part |
898101149 |
US $7.65 |
||
|
5
|
5
898101646 Bushing, plastic |
898101646 |
US $7.65 |
||
|
6
|
6
16219004 Seal |
16219004 |
US $18.54 |
||
|
7
|
7
953922 Washer |
953922 |
US $4.53 |
||
|
8
|
8
161251 Bolt |
161251 |
US $6.14 |
||
| replacement | |||||
|
8
|
8
8M0063198 BOLT |
8M0063198 |
US $6.14 |
||
|
9
|
9
898101639 New Genuine Part |
898101639 |
US $26.11 |
||
|
10
|
10
898101638 New Genuine Part |
898101638 |
US $122.67 |
||
|
11
|
11
898101135
Pin
|
898101135 |
— | ||
| replacement | |||||
|
11
|
11
16085003 Pin |
16085003 |
US $4.40 |
||
|
12
|
12
8M0021224 Clip Bow-Tie |
8M0021224 |
US $12.92 |
||
|
13
|
13
16819 Lockwasher, cover hook bolt |
16819 |
US $1.62 |
||
| replacement | |||||
|
13
|
13
400256 Lockwasher |
400256 |
US $1.62 |
||
|
14
|
14
898101645 Spring |
898101645 |
US $14.88 |
||
|
15
|
15
400212 Nut, stainless steel |
400212 |
US $2.43 |
||
|
16
|
16
898101641 New Genuine Part |
898101641 |
US $120.56 |
||
|
17
|
17
898101644 Nut |
898101644 |
US $8 |
||
|
18
|
18
898101643 New Genuine Part |
898101643 |
US $22.22 |
||
|
19
|
19
898101642 New Genuine Part |
898101642 |
US $21.57 |
||
