Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 803996T01 Handle-tiller	803996T01	US $96.90
	replacement
1	1 8M0051374 Tiller Handle	8M0051374	US $96.90
2	2 895134 Plug-cap	895134	US $6.03
	replacement
2	2 8M0051375 Plug Cap	8M0051375	US $6.03
3	3 853775001 Grip-outer	853775001	US $21.44
	replacement
3	3 8M0051376 Grip Rubber	8M0051376	US $21.44
4	4 853775002 Grip-inner	853775002	US $19.33
	replacement
4	4 8M0051377 Grip	8M0051377	US $19.33
5	5 823037A07 Switch Assembly Stop	823037A07	US $47.10
	replacement
5	5 8M0051405 Switch Assembly Stop	8M0051405	US $47.10
6	6 853752001 New Genuine Part	853752001	US $6.38
	replacement
6	6 8M0051380 Bracket	8M0051380	US $9.66
7	7 878388 Screw, stainless steel	878388	US $4.53
	replacement
7	7 8M0051381 Screw	8M0051381	US $4.53
8	8 813026001 New Genuine Part	813026001	US $5.57
	replacement
8	8 8M0051382 Clamp Friction - Throttle	8M0051382	US $5.57
9	9 892776 Nut	892776	US $10.32
	replacement
9	9 8M0051383 Nut	8M0051383	US $10.32
10	10 892777 Spring, stainless steel	892777	US $5.33
	replacement
10	10 8M0051384 Spring Stainless Steel	8M0051384	US $5.33
11	11 823042039 Bolt	823042039	US $3.47
	replacement
11	11 4000330 Screw, adaptor	4000330	US $4.54
12	12 896853008 Decal, tiller handle shift-rabbit	896853008	US $5.68
13	13 803998001 New Genuine Part [0R055148] & Below	803998001	US $47.44
	replacement
13	13 8M0051379 Shaft Throttle [0R055148] & Below	8M0051379	US $47.44
13	13 803998003 New Genuine Part [0R055149] THRU [0R068397]	803998003	US $47.44
	replacement
13	13 8M0051379 Shaft Throttle [0R055149] THRU [0R068397]	8M0051379	US $47.44
13	13 803998004 New Genuine Part [0R068398] & Up	803998004	US $47.44
	replacement
13	13 8M0051379 Shaft Throttle [0R068398] & Up	8M0051379	US $47.44
14	14 895137 New Genuine Part	895137	US $6.85
	replacement
14	14 8M0051386 Pulley	8M0051386	US $6.85
15	15 895138 New Genuine Part	895138	US $6.96
	replacement
15	15 8M0051387 Housing	8M0051387	US $6.96
16	16 895139 New Genuine Part	895139	US $6.50
	replacement
16	16 8M0051388 Cover	8M0051388	US $6.50
17	17 16257003 Screw, tapping - stainless steel	16257003	US $3.36
18	18 16080 Washer, stainless steel	16080	US $1.28
	replacement
18	18 8M0108373 WASHER	8M0108373	US $1.28
19	19 895131A02 New Genuine Part	895131A02	US $30.40
	replacement
19	19 8M0051390 Cable Throttle	8M0051390	US $30.40
20	20 804019T01 Handle Carrying	804019T01	US $175.01
	replacement
20	20 8M0051392 Handle-Carry	8M0051392	US $234.26
21	21 895140 Bolt, steel	895140	US $11.01
	replacement
21	21 8M0058362 Bolt Steel	8M0058362	US $11.01
22	22 895141 Washer, stainless steel	895141	US $4.40
	replacement
22	22 879194340 Washer	879194340	US $4.40
23	23 895142 New Genuine Part Use with 8mm Screws	895142	US $18.45
	replacement
23	23 895142A01 New Genuine Part Use with 8mm Screws	895142A01	US $18.45
23	23 895142A01 New Genuine Part Use with 16 and 25mm Screws-Included with Cover Kit	895142A01	US $18.45
24	24 895143 Screw	895143	US $3.82
	replacement
24	24 8M0051394 Screw Stainless Steel (M4 X 16)	8M0051394	US $3.82
24	24 898101230 Screw, stainless steel	898101230	US $3.82
	replacement
24	24 8M0051394 Screw Stainless Steel (M4 X 16)	8M0051394	US $3.82
25	25 898101241 Screw, stainless steel	898101241	US $4.99
	replacement
25	25 8M0051395 SCREW	8M0051395	US $4.99
26	26 895144 New Genuine Part	895144	US $18
	replacement
26	26 8M0051396 Lever Tiller Lock - Stainless Steel	8M0051396	US $18
27	27 95286025 Collar, stainless steel	95286025	US $7.65
	replacement
27	27 8M0051397 Collar Stainless Steel	8M0051397	US $7.65
28	28 892777001 Spring, stainless steel	892777001	US $9.15
	replacement
28	28 8M0051398 Spring Stainless Steel	8M0051398	US $9.15
29	29 853776 New Genuine Part	853776	US $4.40
	replacement
29	29 8M0051399 Stopper	8M0051399	US $4.40
30	30 895145 New Genuine Part	895145	US $43.78
	replacement
30	30 8M0051400 Cover	8M0051400	US $43.78
31	31 825702002 Bolt, stainless steel	825702002	US $3.36
	replacement
31	31 823042 Bolt	823042	US $3.36
32	32 823042042 Bolt, stainless steel	823042042	US $5.10
	replacement
32	32 8M0051402 Bolt Stainless Steel	8M0051402	US $5.10
33	33 851858006 Bushing, plastic	851858006	US $4.86
	replacement
33	33 8M0051403 Bushing Plastic	8M0051403	US $4.86
34	34 804508001 Washer	804508001	US $4.86
	replacement
34	34 8M0051404 Washer Rubber	8M0051404	US $4.86
35	35 892904006 Decal, tiller lock release	892904006	—
36	36 803538001 Switch, power tilt [0R193508] & Below	803538001	US $110.11
	replacement
36	36 8M4501991 SWITCH [0R193508] & Below	8M4501991	US $110.11
36	36 803538002 Switch, power tilt [0R193509] & Up	803538002	US $110.11
	replacement
36	36 8M4501991 SWITCH [0R193509] & Up	8M4501991	US $110.11
37	37 896296 Housing-switch Power Tilt	896296	US $15.54
	replacement
37	37 8M4501941 HOUSING-SWITCH Power Tilt	8M4501941	US $15.54
38	38 17169 Clamp Power Tilt	17169	US $2.90
39	39 855544020 Screw Power Tilt	855544020	US $4.53
	replacement
39	39 8M0051381 Screw Power Tilt	8M0051381	US $4.53
40	40 803548002 Plate Power Tilt	803548002	US $8.35
	replacement
40	40 8M4501970 HOLDER / PLATE Power Tilt	8M4501970	US $8.35
41	41 895107002 Screw Power Tilt	895107002	US $3.71
	replacement
41	41 8M4501983 SCREW Power Tilt	8M4501983	US $3.71
42	42 8M0100257 Decal Start [0R676746] & Up	8M0100257	US $1.78
NI	NI 835427A04 Gasket Set Powerhead	835427A04	US $237.10

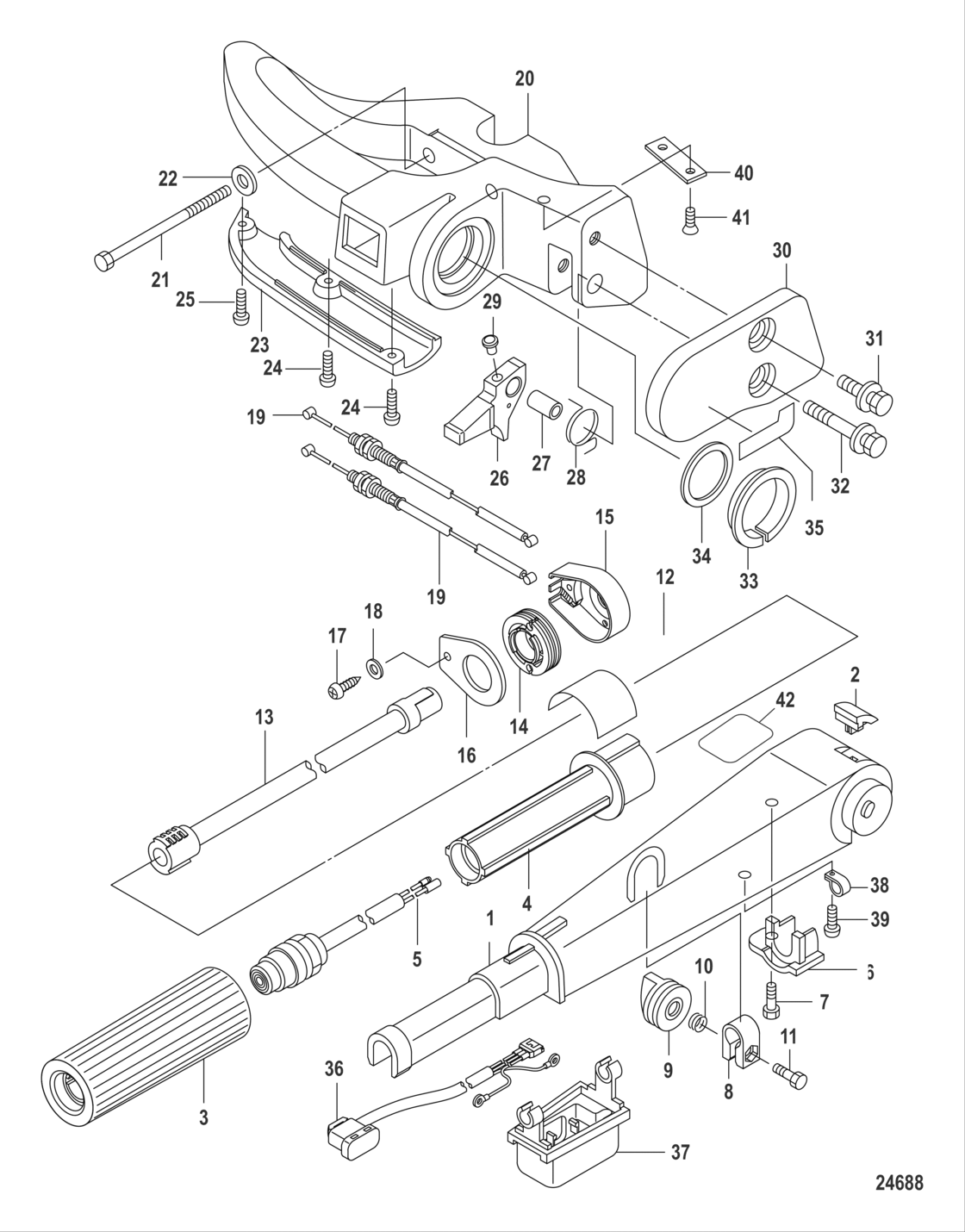

Tiller Handle Diagram Mercury-Mercruiser F9.9 18232683-945643

Tiller Handle Diagram Mercury-Mercruiser F9.9 18232683-945643
