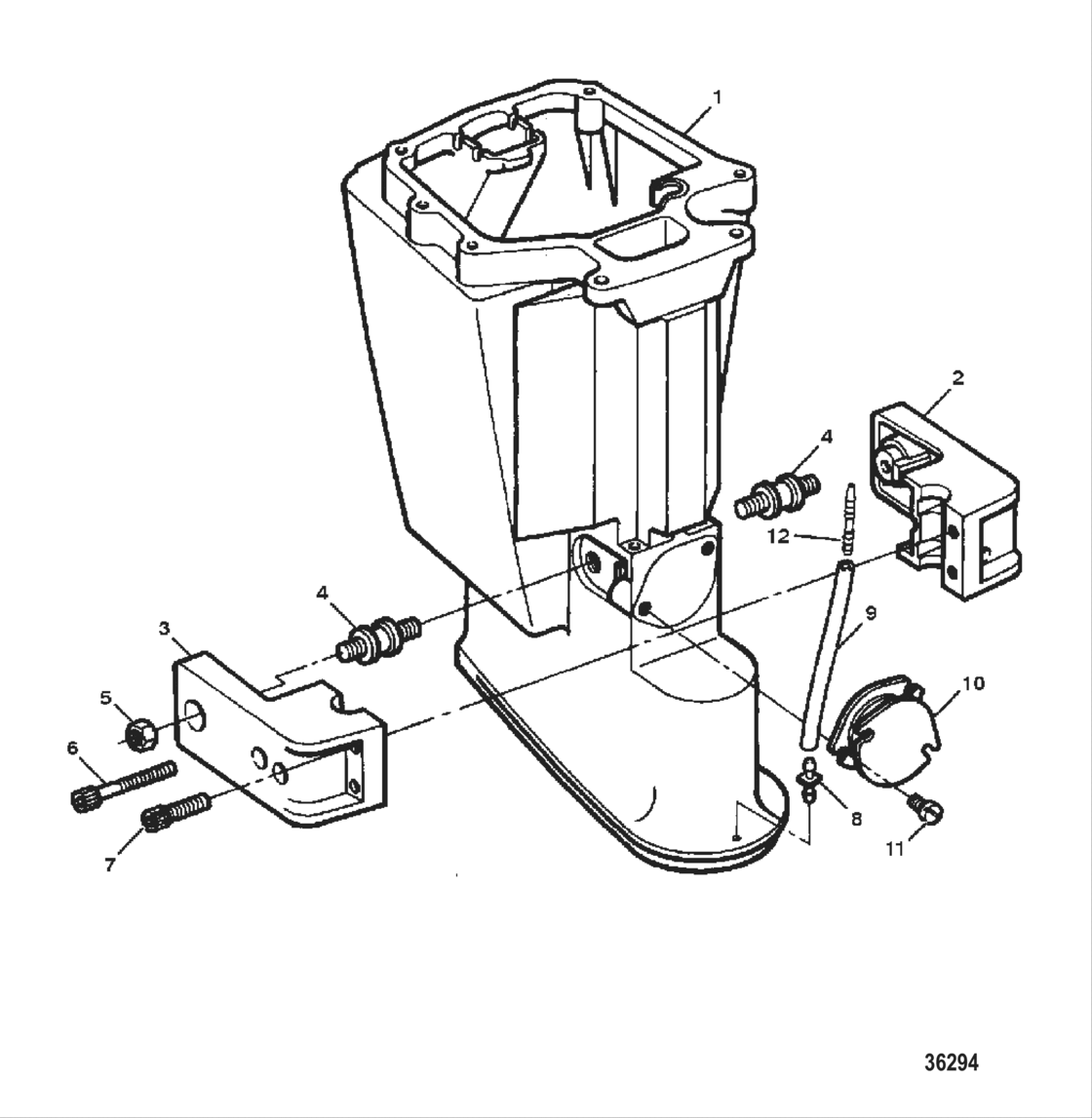

Driveshaft Housing Diagram Mercury-Mercruiser Force75
- Year
- 1998
- Power
- 75
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0E288000 THRU 0E344999
- Кол-в цилиндров
- 3
- Подача топлива
- Карбюратор
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F755133F1
Housing Driveshaft (Painted)
|
F755133F1 |
— | ||
|
2
|
2
820441F1
Cover-w/threads
(THREADS IN HOLES) (PORT) |
820441F1 |
— | ||
|
3
|
3
820442F1
Cover-no threads
(NO THREADS IN HOLES) (STARBOARD) |
820442F1 |
— | ||
|
4
|
4
819869
New Genuine Part
|
819869 |
— | ||
|
5
|
5
826378
Nut (.312-18) With Dri Lok
|
826378 |
— | ||
|
6
|
6
F1635
Screw (.375-16 X 3.50)
|
F1635 |
— | ||
|
7
|
7
830573
Screw (.375-16 X 1.250)
|
830573 |
— | ||
|
8
|
8
13035 Fitting, bleed hose |
13035 |
US $11.94 |
||
| replacement | |||||
|
8
|
8
13035002 Fitting |
13035002 |
US $11.94 |
||
|
9
|
9
86862 Tubing (13.00 Inches)-Speedometer |
86862 |
US $0.82 |
||
|
10
|
10
819708 New Genuine Part |
819708 |
US $87.01 |
||
|
11
|
11
F1129
Screw Fill Head (.3125-18 X .500)
|
F1129 |
— | ||
|
12
|
12
85822 Connector, fuel pump |
85822 |
US $2.08 |
||
| replacement | |||||
|
12
|
12
85822T Connector Straight |
85822T |
US $2.08 |
||
|
NI
|
NI
855440A1
Gasket Set Powerhead
|
855440A1 |
— | ||
|
NI
|
NI
818153A62
Powerhead Assembly
|
818153A62 |
— | ||
