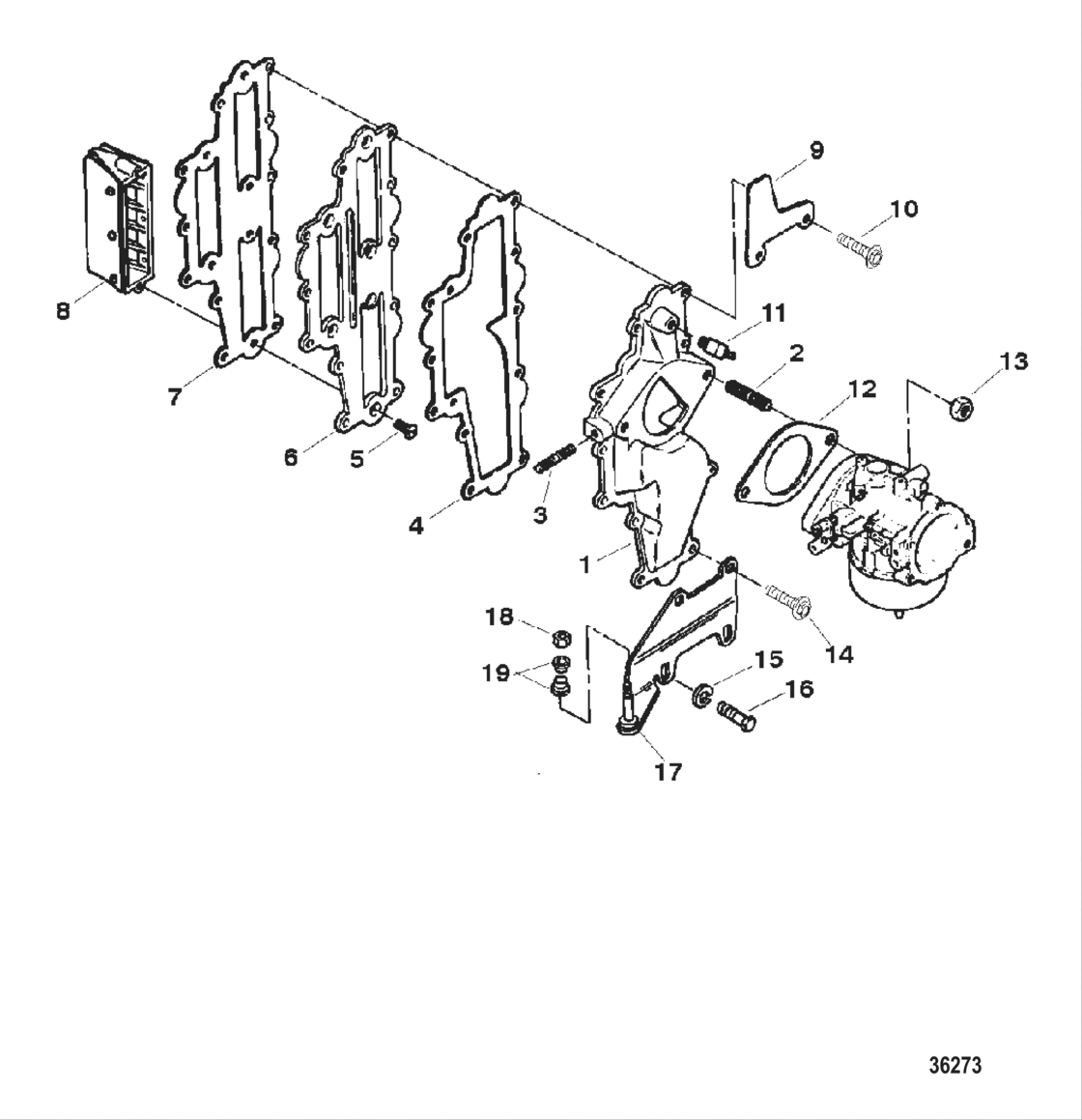

Fuel Intake System Diagram Mercury-Mercruiser Force75
- Year
- 1998
- Power
- 75
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0E288000 THRU 0E344999
- Кол-в цилиндров
- 3
- Подача топлива
- Карбюратор
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
FA749167
New Genuine Part
|
FA749167 |
— | ||
|
2
|
2
8263872
Stud (.375-16 X 1.625)
|
8263872 |
— | ||
|
3
|
3
F4332091
Stud (.250-20 X 1.250)
|
F4332091 |
— | ||
|
4
|
4
8191141
Gasket Intake Manifold
|
8191141 |
— | ||
|
5
|
5
826380
Screw (.250-20 X .625)
|
826380 |
— | ||
| replacement | |||||
|
5
|
5
F1831
SCREW
|
F1831 |
— | ||
|
6
|
6
820502
New Genuine Part
|
820502 |
— | ||
|
7
|
7
819113 Gasket Reed Block Adapter |
819113 |
US $11.71 |
||
|
8
|
8
116452
New Genuine Part
|
116452 |
— | ||
| replacement | |||||
|
8
|
8
855952T3 New Genuine Part |
855952T3 |
US $151.33 |
||
|
9
|
9
F749894
Pointer-timing
|
F749894 |
— | ||
|
10
|
10
819110112
Screw (.250-20 X 1.125)
|
819110112 |
— | ||
|
11
|
11
88780 Elbow, bleed drain |
88780 |
US $15.54 |
||
| replacement | |||||
|
11
|
11
887801 Fitting, elbow 90 degree |
887801 |
US $15.54 |
||
|
12
|
12
F440906 Gasket Carburetor |
F440906 |
US $2.54 |
||
|
13
|
13
86226 Nut, , starter terminal |
86226 |
US $2.43 |
||
|
14
|
14
819110100 Screw (.250-20 X 1.00) |
819110100 |
US $1.62 |
||
|
15
|
15
F8124
Lockwasher (.312) (5/16" External)
|
F8124 |
— | ||
|
16
|
16
19921075
Screw (.312-18 X .75) With Dri Lok
|
19921075 |
— | ||
|
17
|
17
819459A1
Bracket asy-70/75
|
819459A1 |
— | ||
|
18
|
18
34059 Nut |
34059 |
US $3.14 |
||
| replacement | |||||
|
18
|
18
8267096 Nut, stainless steel |
8267096 |
US $3.14 |
||
|
19
|
19
819452 Bushing |
819452 |
US $6.03 |
||
|
NI
|
NI
855440A1
Gasket Set Powerhead
|
855440A1 |
— | ||
|
NI
|
NI
818153A62
Powerhead Assembly
|
818153A62 |
— | ||
