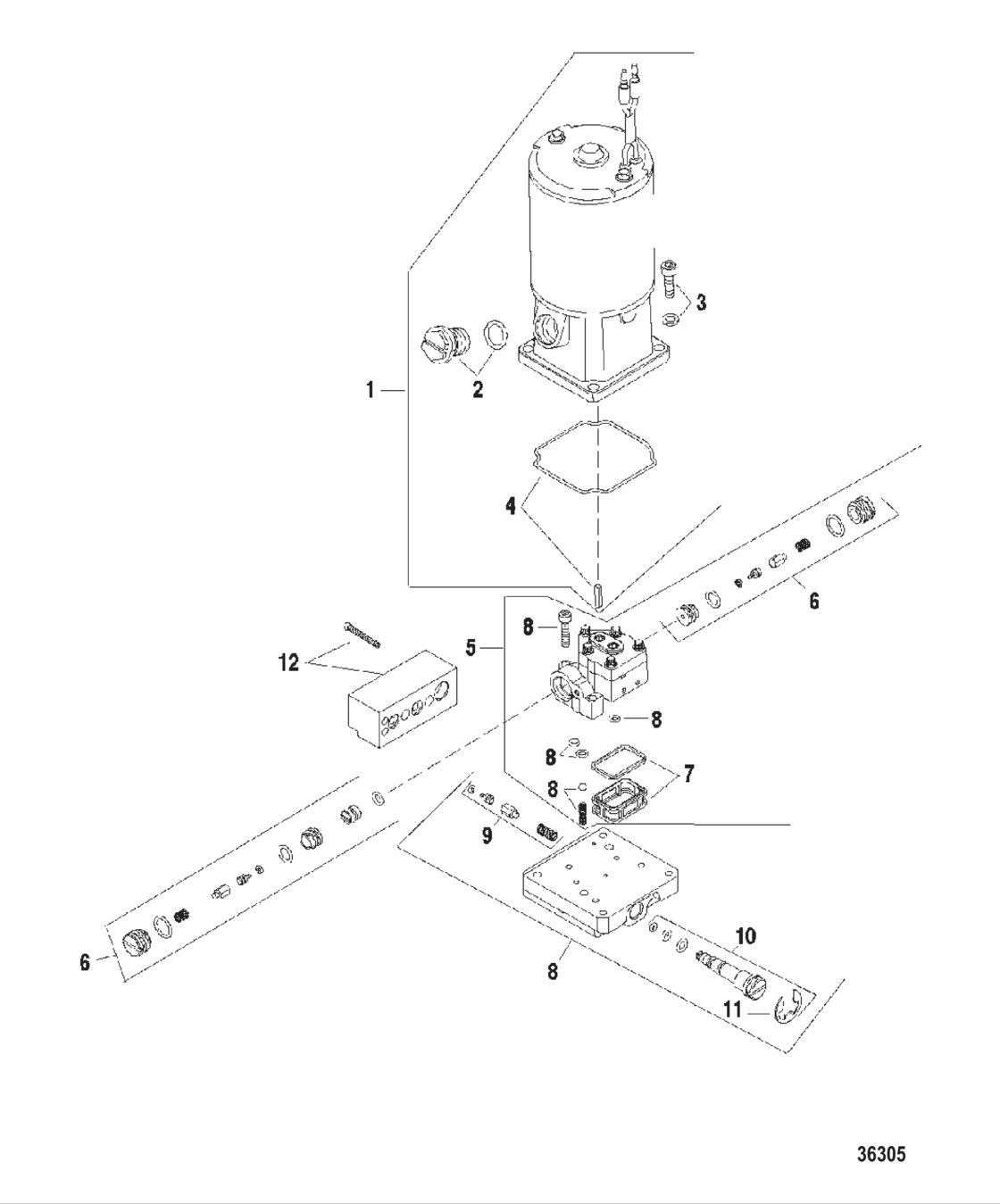

Pump/motor Assembly Diagram Mercury-Mercruiser Force75
- Year
- 1998
- Power
- 75
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0E288000 THRU 0E344999
- Кол-в цилиндров
- 3
- Подача топлива
- Карбюратор
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
809885A1
New Genuine Part
|
809885A1 |
— | ||
| replacement | |||||
|
1
|
1
893907A02 Motor kit |
893907A02 |
US $849.20 |
||
|
2
|
2
8134351 Reservoir plug |
8134351 |
US $51.41 |
||
|
3
|
3
809876A1
Screw kit
|
809876A1 |
— | ||
|
4
|
4
809877A1
DRIVESHAFT/SEAL KIT
|
809877A1 |
— | ||
|
5
|
5
809874A1
New Genuine Part
|
809874A1 |
— | ||
| replacement | |||||
|
5
|
5
893906A02
New Genuine Part
|
893906A02 |
— | ||
|
6
|
6
809879A1 Poppet kit-t & t |
809879A1 |
US $133.22 |
||
| replacement | |||||
|
6
|
6
893913A02 Poppet kit |
893913A02 |
US $133.22 |
||
|
7
|
7
809878A1
New Genuine Part
|
809878A1 |
— | ||
| replacement | |||||
|
7
|
7
893912A02 New Genuine Part |
893912A02 |
US $24.58 |
||
|
8
|
8
809875A1
Manifold kit-t/t
|
809875A1 |
— | ||
| replacement | |||||
|
8
|
8
893909A02
New Genuine Part
|
893909A02 |
— | ||
|
9
|
9
809873A1
Valve kit-trim
|
809873A1 |
— | ||
| replacement | |||||
|
9
|
9
893905A02
New Genuine Part
|
893905A02 |
— | ||
|
10
|
10
813442A2 Valve kit-relief |
813442A2 |
US $89.74 |
||
| replacement | |||||
|
10
|
10
893929A01 Valve kit-relief |
893929A01 |
US $89.74 |
||
|
11
|
11
812844 "e" ring |
812844 |
US $4.99 |
||
| replacement | |||||
|
11
|
11
815949001 E-RING |
815949001 |
US $4.99 |
||
|
12
|
12
809956A1
New Genuine Part
|
809956A1 |
— | ||
|
NI
|
NI
832021A9
New Genuine Part
|
832021A9 |
— | ||
| replacement | |||||
|
NI
|
NI
832021T9 New Genuine Part |
832021T9 |
US $1,002.03 |
||
|
NS
|
NS
809880A1
O ring kit
|
809880A1 |
— | ||
| replacement | |||||
|
NS
|
NS
893914A02
O-ring kit
|
893914A02 |
— | ||
