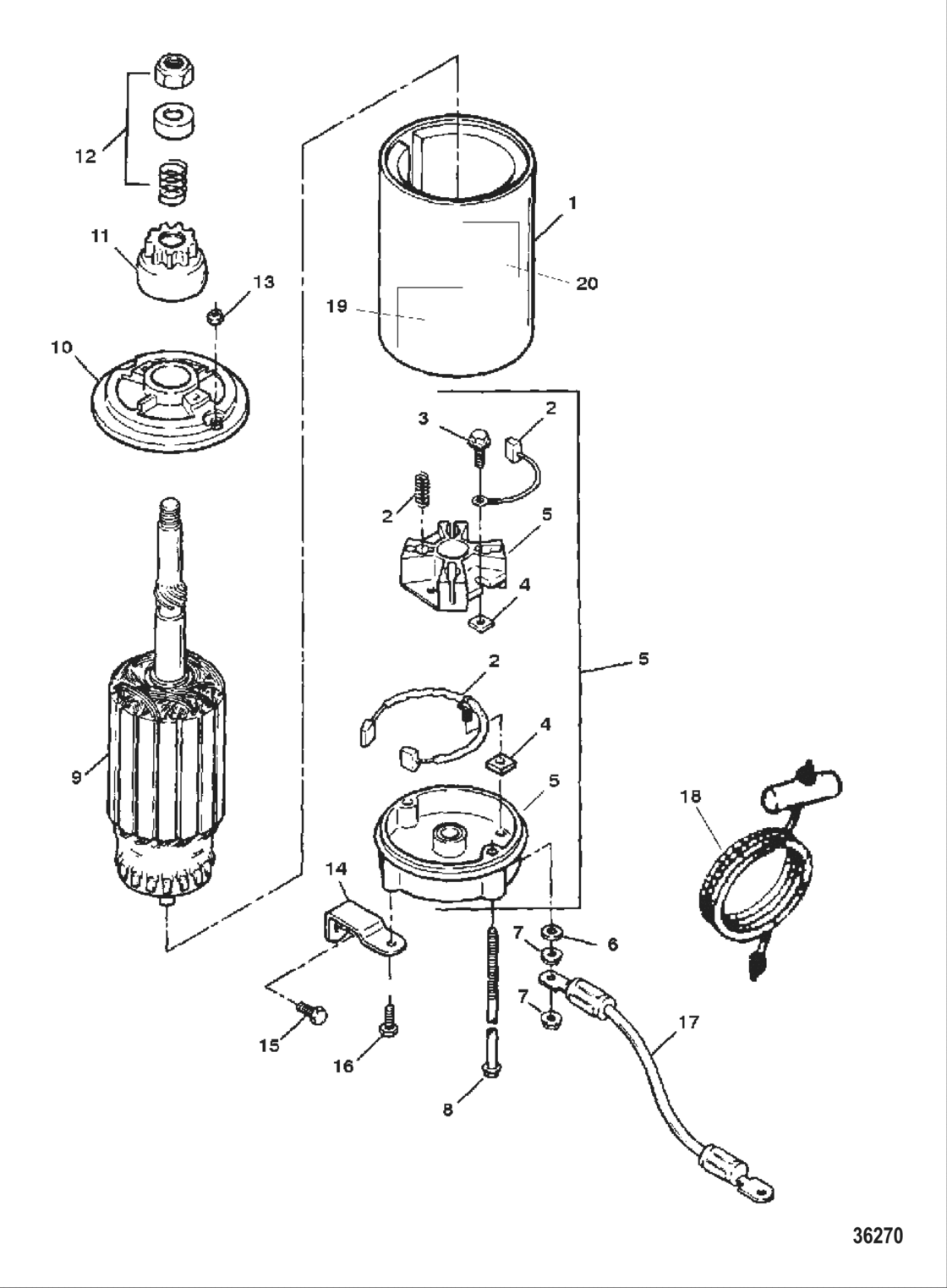

Starter Assembly Diagram Mercury-Mercruiser Force75
- Year
- 1998
- Power
- 75
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0E288000 THRU 0E344999
- Кол-в цилиндров
- 3
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
819085 Starter Motor Assembly (Services 50-F616955-1)[0E288000] THRU [0E318771] |
819085 |
US $464.22 |
||
| replacement | |||||
|
1
|
1
898265002 STARTER MOTOR[0E288000] THRU [0E318771] |
898265002 |
US $464.22 |
||
|
1
|
1
853869 Starter Motor Assembly[0E318772] THRU [0E344999] |
853869 |
US $464.22 |
||
| replacement | |||||
|
1
|
1
898265002 STARTER MOTOR[0E318772] THRU [0E344999] |
898265002 |
US $464.22 |
||
|
2
|
2
F15190 New Genuine Part |
F15190 |
US $40.34 |
||
|
3
|
3
F15158
New Genuine Part
|
F15158 |
— | ||
|
4
|
4
F15159
New Genuine Part
|
F15159 |
— | ||
| replacement | |||||
|
4
|
4
57387
Bushing, insulating
|
57387 |
— | ||
|
5
|
5
F15189 Cap assy-comm end |
F15189 |
US $140.34 |
||
|
6
|
6
F15160
New Genuine Part
|
F15160 |
— | ||
| replacement | |||||
|
6
|
6
804700
WASHER
|
804700 |
— | ||
|
7
|
7
F15162
New Genuine Part
|
F15162 |
— | ||
|
8
|
8
F15178
New Genuine Part
|
F15178 |
— | ||
|
9
|
9
F15177
New Genuine Part
|
F15177 |
— | ||
|
10
|
10
F15176
New Genuine Part
|
F15176 |
— | ||
| replacement | |||||
|
10
|
10
803888T
END CAP-DRIVE
|
803888T |
— | ||
|
11
|
11
819222 New Genuine Part[0E288000] THRU [0E318771] |
819222 |
US $85.78 |
||
| replacement | |||||
|
11
|
11
802587T01 DRIVE-PINION[0E288000] THRU [0E318771] |
802587T01 |
US $85.78 |
||
|
11
|
11
802587 New Genuine Part[0E318772] THRU [0E344999] |
802587 |
US $85.78 |
||
| replacement | |||||
|
11
|
11
802587T01 DRIVE-PINION[0E318772] THRU [0E344999] |
802587T01 |
US $85.78 |
||
|
12
|
12
90644 New Genuine Part |
90644 |
US $54.34 |
||
|
13
|
13
828451
Nut (.250-28)
|
828451 |
— | ||
|
14
|
14
F616675
New Genuine Part
|
F616675 |
— | ||
|
15
|
15
19923062 Screw |
19923062 |
US $4.18 |
||
|
16
|
16
19923062 Screw |
19923062 |
US $4.18 |
||
|
17
|
17
93388A6 Cable Assembly (5.500 Inches) |
93388A6 |
US $11.14 |
||
|
18
|
18
47341A1
New Genuine Part
|
47341A1 |
— | ||
| replacement | |||||
|
18
|
18
47341A11 Rope |
47341A11 |
US $22.88 |
||
|
19
|
19
825064 Decal, caution, start in gear, |
825064 |
US $10.21 |
||
| replacement | |||||
|
19
|
19
881865 Decal, caution-start in gear |
881865 |
US $10.21 |
||
|
20
|
20
8272822 Decal, warning, high voltage |
8272822 |
US $12.18 |
||
