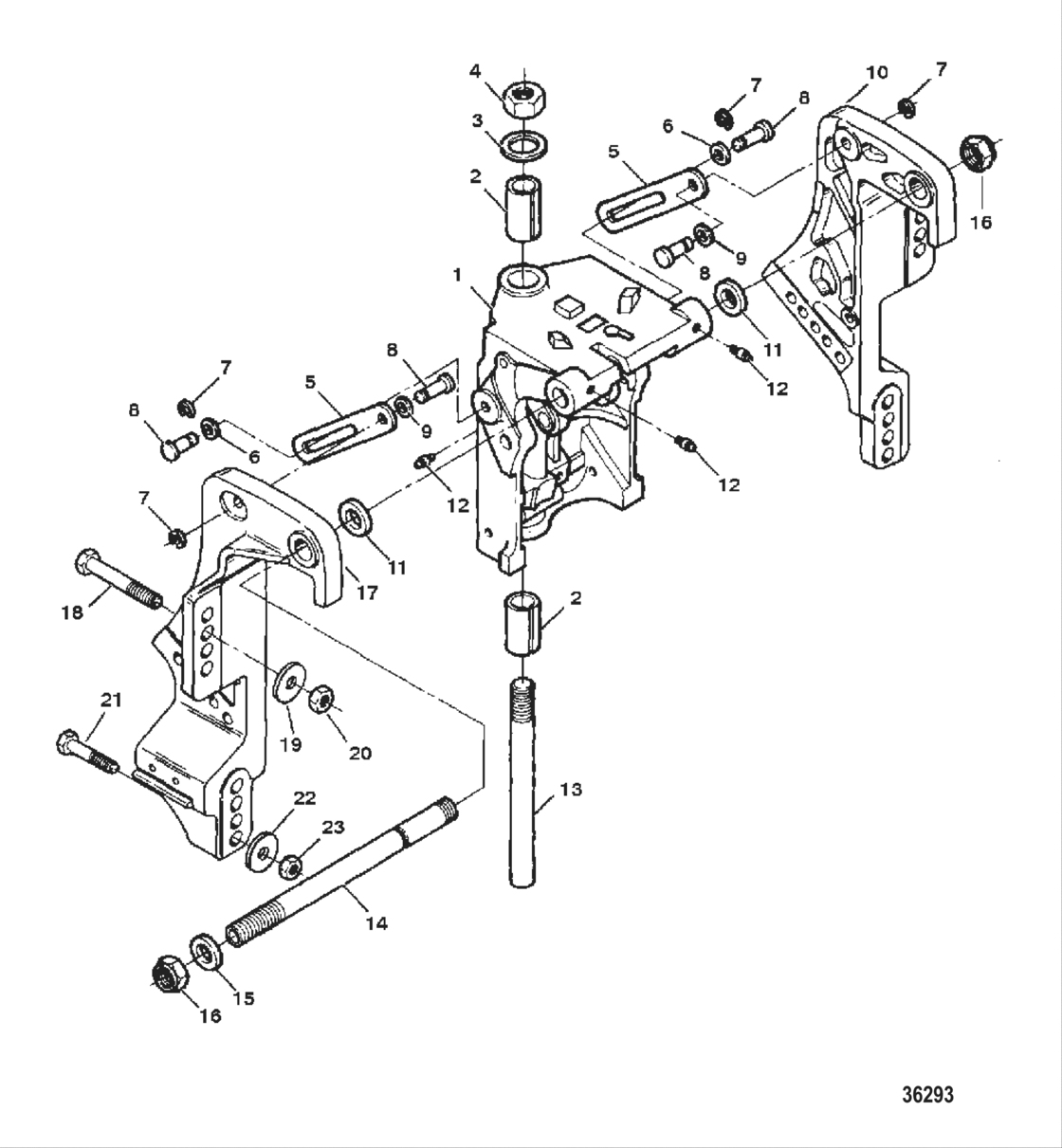

Swivel Bracket/stern Brackets (Power Trim Models) Diagram Mercury-Mercruiser Force75
- Year
- 1998
- Power
- 75
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0E288000 THRU 0E344999
- Кол-в цилиндров
- 3
- Подача топлива
- Карбюратор
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
819128F2
Bracket Swivel (Painted)
|
819128F2 |
— | ||
|
2
|
2
F1911691
Bearing Swivel Bracket
|
F1911691 |
— | ||
|
3
|
3
F89011
Washer Swivel Bracket
|
F89011 |
— | ||
| replacement | |||||
|
3
|
3
69342
Washer, swivel pin - upper
|
69342 |
— | ||
|
4
|
4
F84280
Nut Kingpin
|
F84280 |
— | ||
|
5
|
5
F3664331
Stop-tilt-stbd
|
F3664331 |
— | ||
|
6
|
6
74758 Washer |
74758 |
US $16.11 |
||
|
7
|
7
F749208
Ring Retaining
|
F749208 |
— | ||
|
8
|
8
F749458
Pin Tilt Lock
|
F749458 |
— | ||
|
9
|
9
69708 Wave washer, latch and lever screw |
69708 |
US $2.21 |
||
|
10
|
10
819325F2
Bracket Stern (Port) (Painted)
|
819325F2 |
— | ||
| replacement | |||||
|
10
|
10
819325T2
BRKT-STERN-PORT
|
819325T2 |
— | ||
|
11
|
11
F522286
Washer Phenolic (1.40 X .89 X .094) Friction
|
F522286 |
— | ||
|
12
|
12
F213274
Fitting
|
F213274 |
— | ||
|
13
|
13
819331A1
Kingpin asy-70/75
|
819331A1 |
— | ||
|
14
|
14
819545A1
New Genuine Part
|
819545A1 |
— | ||
|
15
|
15
F316599 Seal Pivot Tube |
F316599 |
US $1.62 |
||
| replacement | |||||
|
15
|
15
48462 "o" ring, oil level tube adaptor |
48462 |
US $1.80 |
||
|
16
|
16
30499 Nut, tilt tube fastening |
30499 |
US $4.18 |
||
| replacement | |||||
|
16
|
16
858869 Nut |
858869 |
US $5.10 |
||
|
17
|
17
819324F1
Bracket Stern (Starboard) (Painted)
|
819324F1 |
— | ||
| replacement | |||||
|
17
|
17
819324T1
BRKT-STERN-STBD
|
819324T1 |
— | ||
|
18
|
18
92710
Screw (.500-20 X 5.00)
|
92710 |
— | ||
|
19
|
19
28421 Washer, stainless steel, transom plate screw |
28421 |
US $4.03 |
||
|
20
|
20
91962
Nut, transom bracket bolt
|
91962 |
— | ||
| replacement | |||||
|
20
|
20
82671117 Nut |
82671117 |
US $7.78 |
||
|
21
|
21
677551 Screw |
677551 |
US $15.89 |
||
|
22
|
22
28421 Washer, stainless steel, transom plate screw |
28421 |
US $4.03 |
||
|
23
|
23
91962
Nut, transom bracket bolt
|
91962 |
— | ||
| replacement | |||||
|
23
|
23
82671117 Nut |
82671117 |
US $7.78 |
||
