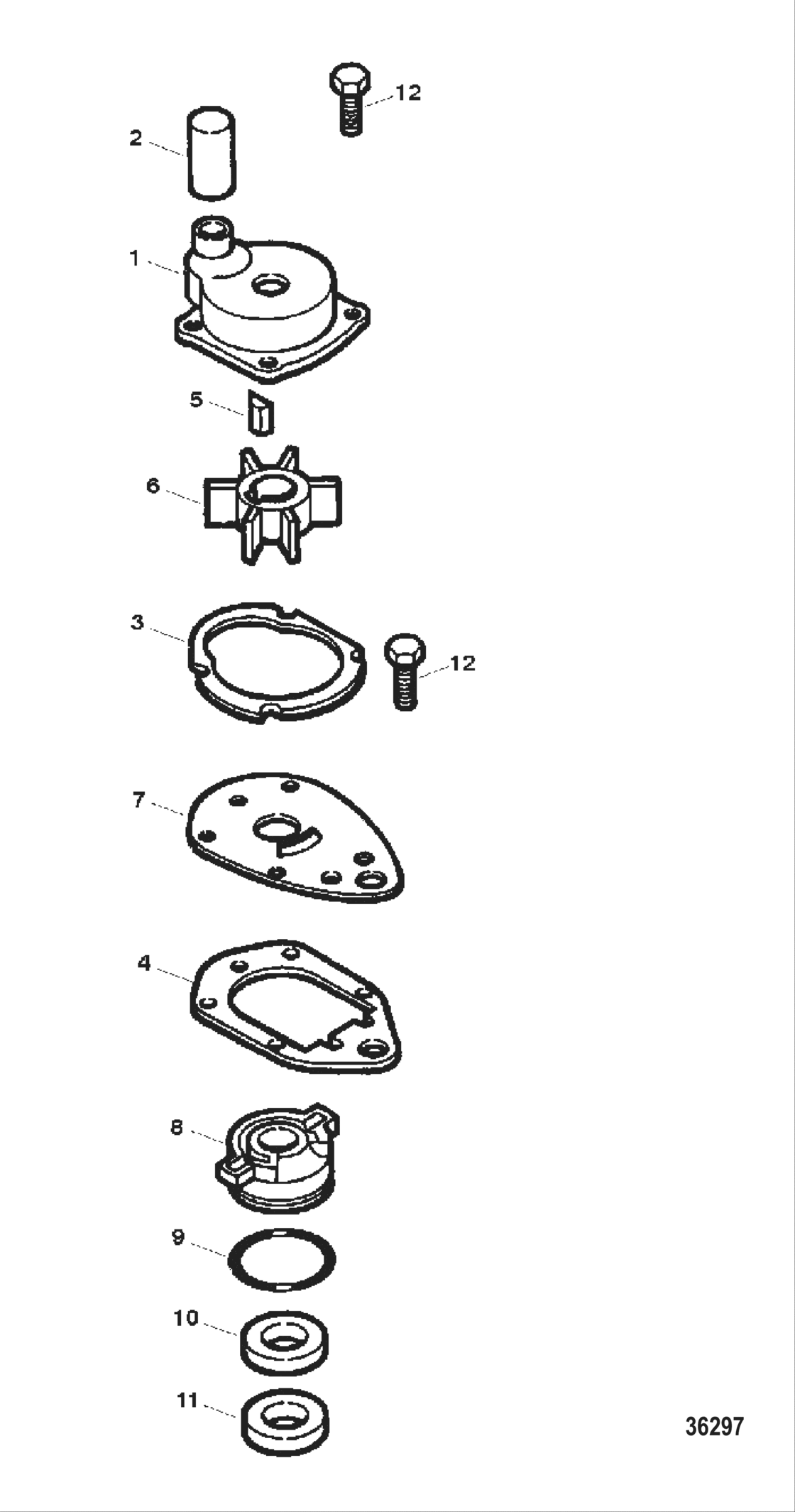

Water Pump Diagram Mercury-Mercruiser Force75
- Year
- 1998
- Power
- 75
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0E288000 THRU 0E344999
- Кол-в цилиндров
- 3
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14334A2
New Genuine Part
|
14334A2 |
— | ||
| replacement | |||||
|
1
|
1
812966A12 REPAIR KIT, Water Pump |
812966A12 |
US $254.98 |
||
|
2
|
2
43023 SEAL |
43023 |
US $13.10 |
||
|
3
|
3
822189 GASKET |
822189 |
US $7.63 |
||
|
4
|
4
19701 GASKET, Lower |
19701 |
US $7.63 |
||
| replacements | |||||
|
4
|
4
8M4502052 Gasket Lower Lower |
8M4502052 |
US $7.63 |
||
|
4
|
4
8M0224241 GASKET, Lower |
8M0224241 |
US $6.90 |
||
|
5
|
5
19699 Key |
19699 |
US $4.06 |
||
| replacement | |||||
|
5
|
5
8M0032831 Key Impeller |
8M0032831 |
US $4.68 |
||
|
6
|
6
19453 Impeller |
19453 |
US $78.18 |
||
| replacement | |||||
|
6
|
6
19453T IMPELLER |
19453T |
US $78.18 |
||
|
7
|
7
19700A1
Faceplate kit
|
19700A1 |
— | ||
| replacement | |||||
|
7
|
7
19700A2 Faceplate kit |
19700A2 |
US $20.38 |
||
|
8
|
8
812966A3 Base Assembly |
812966A3 |
US $74.22 |
||
| replacement | |||||
|
8
|
8
812966A7 BASE ASSEMBLY, Water Pump |
812966A7 |
US $89.32 |
||
|
9
|
9
30224 "O" RING, WATER PUMP BASE |
30224 |
US $4.42 |
||
| replacement | |||||
|
9
|
9
8M0204651 O RING |
8M0204651 |
US $4.25 |
||
|
10
|
10
814670 Seal, oil |
814670 |
US $26.71 |
||
|
11
|
11
814669 SEAL, Oil |
814669 |
US $21.42 |
||
|
12
|
12
8248324 Screw |
8248324 |
US $2.04 |
||
|
NI
|
NI
812966A6
Repair Kit Water Pump
|
812966A6 |
— | ||
| replacement | |||||
|
NI
|
NI
812966A12 REPAIR KIT, Water Pump |
812966A12 |
US $254.98 |
||
|
NI
|
NI
814669A2 G/h seal kit |
814669A2 |
US $98.38 |
||
|
NI
|
NI
819123A7
Gear Housing Assembly (Basic)
|
819123A7 |
— | ||
| replacement | |||||
|
NI
|
NI
819123T7
GEAR HSG-BASIC
|
819123T7 |
— | ||
|
NI
|
NI
819123A8
Gear Housing Assembly (Complete)
|
819123A8 |
— | ||
| replacement | |||||
|
NI
|
NI
819123T8
GC COMP 75 FOR LG
|
819123T8 |
— | ||
