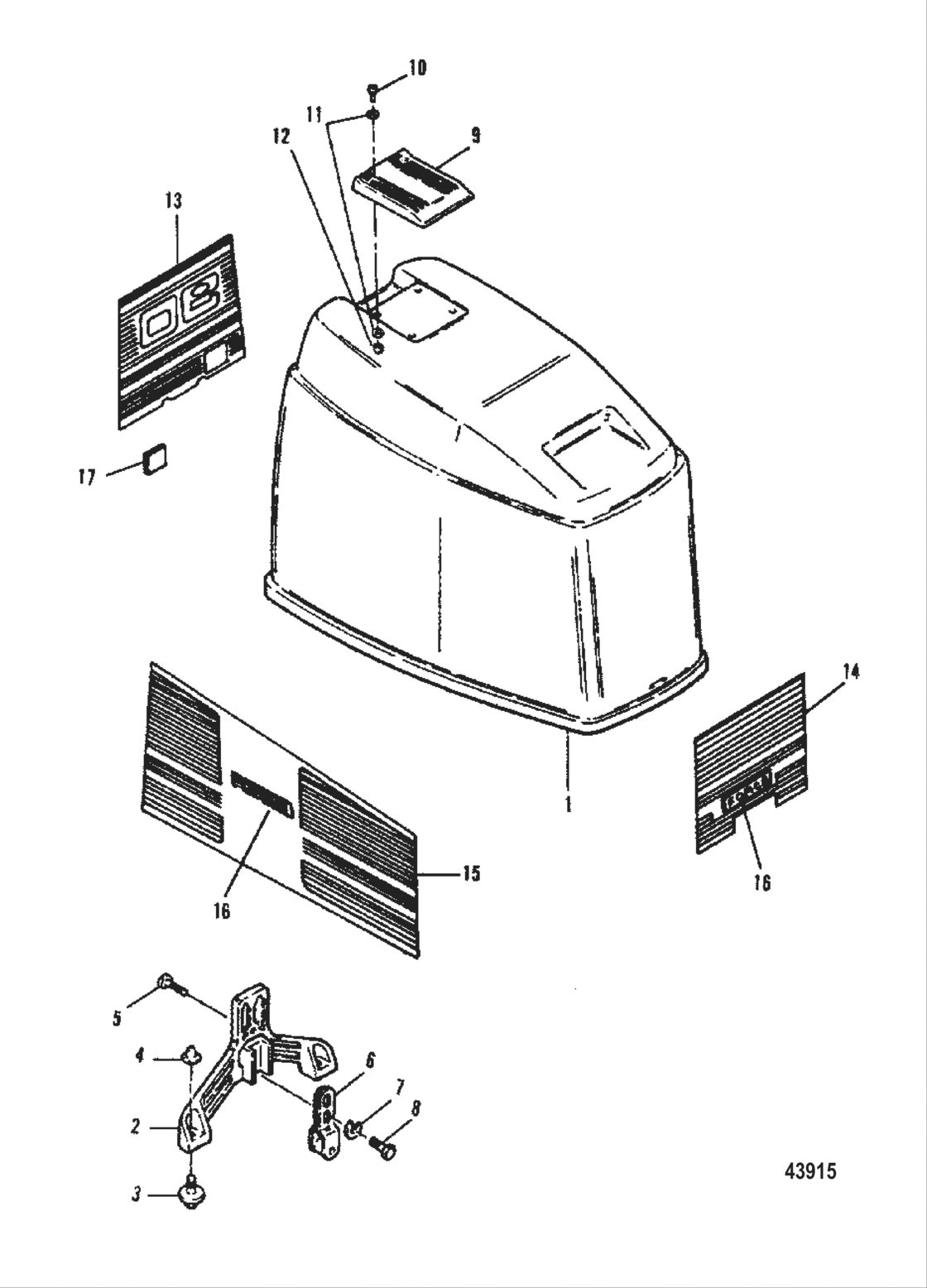

Top Cowl Diagram Mercury-Mercruiser Force90
- Year
- 1991-1994
- Power
- 90
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0E000001 THRU 0E093699
- Кол-в цилиндров
- 3
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
--
|
--
819645A1
Top Cowl Assembly Complete - 1992 Bayliner Models
|
819645A1 |
— | ||
|
--
|
--
819650A1
Top Cowl Assembly Complete - 1992 Maxum Models
|
819650A1 |
— | ||
|
--
|
--
F6639841
New Genuine Part
|
F6639841 |
— | ||
| replacement | |||||
|
--
|
--
827291
New Genuine Part
|
827291 |
— | ||
|
--
|
--
F663985
New Genuine Part
|
F663985 |
— | ||
|
--
|
--
820512A93
Decal Set Force
[0E009500] THRU [0E093699] |
820512A93 |
— | ||
|
--
|
--
820513A93
Decal Set Bayliner
[0E009500] THRU [0E031999] |
820513A93 |
— | ||
|
--
|
--
820513A94
Decal Set Bayliner
[0E032000] THRU [0E093699] |
820513A94 |
— | ||
|
1
|
1
819364A3
Top Cowl Assembly Top (Without Decals) (Painted)
|
819364A3 |
— | ||
| replacement | |||||
|
1
|
1
819364T9
COWL ASSY-BASIC
|
819364T9 |
— | ||
|
2
|
2
F6637742
New Genuine Part
|
F6637742 |
— | ||
| replacement | |||||
|
2
|
2
8198141
New Genuine Part
|
8198141 |
— | ||
|
3
|
3
F481434 New Genuine Part |
F481434 |
US $17.78 |
||
|
4
|
4
F2088 New Genuine Part |
F2088 |
US $0.93 |
||
| replacement | |||||
|
4
|
4
91925 Nut, speed-fuel cap retainer |
91925 |
US $0.93 |
||
|
5
|
5
28639
Screw (250-20 X .625)
|
28639 |
— | ||
|
6
|
6
18173 New Genuine Part |
18173 |
US $31.89 |
||
| replacement | |||||
|
6
|
6
893763 New Genuine Part |
893763 |
US $31.89 |
||
|
7
|
7
53166 Lockwasher |
53166 |
US $1.62 |
||
|
8
|
8
90285 Screw, mounting bracket |
90285 |
US $1.62 |
||
|
9
|
9
816518
New Genuine Part
|
816518 |
— | ||
| replacement | |||||
|
9
|
9
828477
New Genuine Part
|
828477 |
— | ||
|
10
|
10
F2143 Screw (.250-20 X 1.00) Stainless Steel |
F2143 |
US $2.78 |
||
|
11
|
11
29245 Washer, stainless steel, water pump body stud |
29245 |
US $1.28 |
||
|
12
|
12
13855 Nut (.250-20) (.250-20) |
13855 |
US $3.54 |
||
| replacement | |||||
|
12
|
12
8267118 Nut |
8267118 |
US $3.54 |
||
|
13
|
13
F743528
Decal Rear (1991 Models) Force
|
F743528 |
— | ||
|
13
|
13
FX743528
Decal Rear (1991 Models) Bayliner
|
FX743528 |
— | ||
|
13
|
13
FZ743528
Decal Rear (1991 Models) Maxum
|
FZ743528 |
— | ||
|
13
|
13
FP743528
Decal Rear (1992 Models)
1992A THRU 1992C FORCE |
FP743528 |
— | ||
|
13
|
13
819570
Decal Rear (1992 Models)
1992A THRU 1992C BAYLINER |
819570 |
— | ||
|
13
|
13
819591
Decal Rear (1992 Models)
1992A THRU 1992C MAXUM |
819591 |
— | ||
|
14
|
14
F743892
Decal Front (1991 Models) Force
|
F743892 |
— | ||
|
14
|
14
FX743892
Decal Front (1991 Models) Bayliner
|
FX743892 |
— | ||
|
14
|
14
FZ743892
Decal Front (1991 Models) Maxum
|
FZ743892 |
— | ||
|
14
|
14
FP743892
Decal Front (1992 Models)
1992A THRU 1992C FORCE |
FP743892 |
— | ||
|
14
|
14
819571
Decal Front (1992 Models)
1992A THRU 1992C BAYLINER |
819571 |
— | ||
|
14
|
14
819592
Decal Front (1992 Models)
1992A THRU 1992C MAXUM |
819592 |
— | ||
|
15
|
15
F743396
Decal Starboard (1991 Models) Force
|
F743396 |
— | ||
|
15
|
15
F743397
Decal Port (1991 Models) Force
|
F743397 |
— | ||
|
15
|
15
FX743396
Decal Starboard (1991 Models) Bayliner
|
FX743396 |
— | ||
|
15
|
15
FX743397
Decal Port (1991 Models) Bayliner
|
FX743397 |
— | ||
|
15
|
15
FZ743396
Decal Starboard (1991 Models) Maxum
|
FZ743396 |
— | ||
|
15
|
15
FZ743397
Decal Port (1991 Models) Maxum
|
FZ743397 |
— | ||
|
15
|
15
FP743396
Decal Starboard (1992 Models)
1992A THRU 1992C FORCE |
FP743396 |
— | ||
|
15
|
15
FP743397
Decal Port(1992 Models)
1992A THRU 1992C FORCE |
FP743397 |
— | ||
|
15
|
15
819568
Decal Starboard(1992 Models)
1992A THRU 1992C BAYLINER |
819568 |
— | ||
|
15
|
15
819569
Decal Port (1992 Models)
1992A THRU 1992C BAYLINER |
819569 |
— | ||
|
15
|
15
819589
Decal Starboard (1992 Models)
1992A THRU 1992C MAXUM |
819589 |
— | ||
|
15
|
15
819590
Decal Port (1992 Models)
1992A THRU 1992C MAXUM |
819590 |
— | ||
|
16
|
16
819169
New Genuine Part
|
819169 |
— | ||
|
16
|
16
FZ721366
New Genuine Part
(1991 & 1992) MAXUM |
FZ721366 |
— | ||
|
17
|
17
8179851
Medallion Us Marine (Red)
1991E THRU 1992C |
8179851 |
— | ||
|
17
|
17
F6943661
Medallion Us Marine (Silver)
1991E THRU 1992C |
F6943661 |
— | ||
|
17
|
17
FZ718366
N.l.a.
1991E THRU 1992C |
FZ718366 |
— | ||
