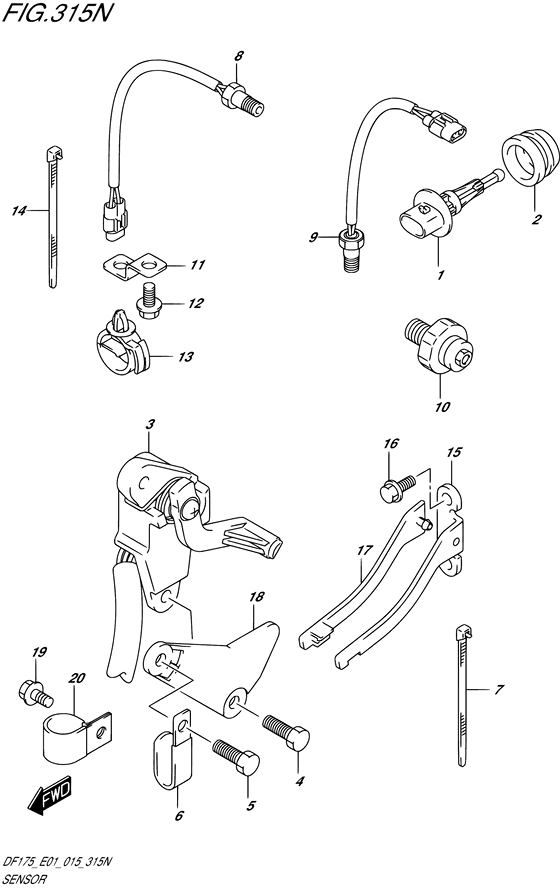

Sensor ((DF175Z E01)) Diagram Suzuki DF175 (Z/T)GL/X
- Year
- 2015
- Model
- DF175
- Year
- 2015
- Engine
- 17502F-510001~ (17502Z-510001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 175
- Colour
- Shadow Black Metallic; Cool White (0EP; Y5S)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13650-52G00-000 SENSOR,INLET AIR TEMPSensor, inlet air temp |
13650-52G00-000 |
from US $50.92 |
||
|
2
|
2
13655-87J00-000 GROMMET,AIR TEMP SENSORGrommet, air temp sensor |
13655-87J00-000 |
US $2.43 |
||
|
3
|
3
34801-99E04-000
SENDER ASSY,TRIM
|
34801-99E04-000 |
— | ||
| replacement | |||||
|
3
|
3
34801-99E05-000 Sender Assy,trim |
34801-99E05-000 |
US $255.26 |
||
|
4
|
4
09103-06093-000 BOLT(6X20) |
09103-06093-000 |
from US $1.68 |
||
|
5
|
5
09103-06093-000 BOLT(6X20) |
09103-06093-000 |
from US $1.68 |
||
|
6
|
6
29404-93J10-000
CLAMP
|
29404-93J10-000 |
— | ||
| replacement | |||||
|
6
|
6
29404-93J11-000 Clamp |
29404-93J11-000 |
US $1.78 |
||
|
7
|
7
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
8
|
8
34830-87J20-000 SENSOR,TEMPSensor assy, temp |
34830-87J20-000 |
from US $46.40 |
||
|
9
|
9
34830-87J20-000 SENSOR,TEMPSensor assy, temp |
34830-87J20-000 |
from US $46.40 |
||
|
10
|
10
37820-99E01-000
SWITCH ASSY,OIL PRESSURE(P1.0)
|
37820-99E01-000 |
— | ||
| replacement | |||||
|
10
|
10
37820-99E02-000 SWITCH ASSY,OIL PRESSURE |
37820-99E02-000 |
from US $18.23 |
||
|
11
|
11
36617-93J10-000 BRACKET,HARNESSBracket, ptt cable clip |
36617-93J10-000 |
US $1.44 |
||
|
12
|
12
29103-93J00-000 BOLTBolt, ptt cable clip bracket (6x12) |
29103-93J00-000 |
US $1.44 |
||
|
13
|
13
09403-20307-000 CLAMP |
09403-20307-000 |
US $14.40 |
||
|
14
|
14
09407-14407-000 CLAMP(L:145)Band |
09407-14407-000 |
from US $2.08 |
||
|
15
|
15
43117-96J00-000 CAM,TRIM SENDER |
43117-96J00-000 |
US $5.76 |
||
|
16
|
16
09116-05010-000 BOLT(5X12)Bolt, trim sender cam (5x12) |
09116-05010-000 |
from US $0.95 |
||
|
17
|
17
43118-96J00-000 PLATE,TRIM SENDER CAM |
43118-96J00-000 |
US $4.64 |
||
|
18
|
18
41118-96J00-000 PLATE,TRIM SENDER |
41118-96J00-000 |
US $5.15 |
||
|
19
|
19
29103-93J00-000 BOLTBolt, ptt cable clip bracket (6x12) |
29103-93J00-000 |
US $1.44 |
||
|
20
|
20
09403-19409-000
CLAMP
|
09403-19409-000 |
— | ||
| replacement | |||||
|
20
|
20
09403-19412-000 Clamp,ptt Motor Lead |
09403-19412-000 |
from US $6.89 |
||
