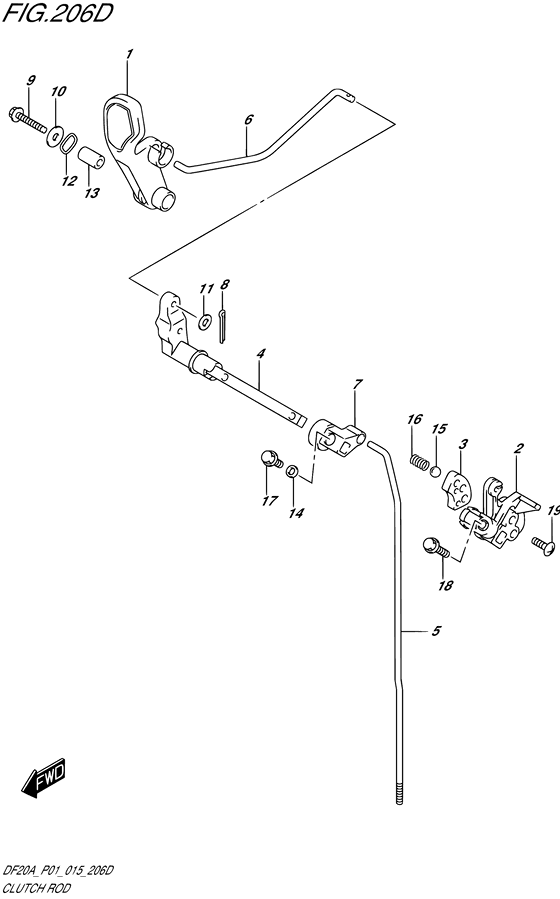

Clutch rod ((DF15A P01)) Diagram Suzuki DF20A S/L; RS/L; T(H)S/L
- Year
- 2015
- Model
- DF20A
- Year
- 2015
- Engine
- 02002F-510001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 20
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21111-89L00-000
LEVER,CLUTCH
|
21111-89L00-000 |
— | ||
| replacement | |||||
|
1
|
1
21111-89L01-000 Lever,clutch |
21111-89L01-000 |
US $17.60 |
||
|
2
|
2
21120-89L00-000 LEVER,CLUTCH NOTCH |
21120-89L00-000 |
US $9.12 |
||
|
3
|
3
21122-89L00-000 PLATE,CLUTCH NOTCH |
21122-89L00-000 |
US $20.53 |
||
|
4
|
4
21210-89L00-000
Shaft comp,clutch lever
|
21210-89L00-000 |
— | ||
| replacement | |||||
|
4
|
4
21210-89L01-000 SHAFT COMP,CLUTCH LEVER |
21210-89L01-000 |
US $22.80 |
||
|
5
|
5
23111-89L00-000 ROD,CLUTCH(S)W/TRANSOM(S) |
23111-89L00-000 |
US $10.64 |
||
|
5
|
5
23111-89L10-000 ROD,CLUTCH(L)W/TRANSOM(L) W/TRANSOM(X) |
23111-89L10-000 |
US $12.80 |
||
|
6
|
6
23115-89L00-000 LINK,CLUTCH LEVER |
23115-89L00-000 |
US $5.63 |
||
|
7
|
7
23211-89L00-000 ARM,CLUTCH ROD |
23211-89L00-000 |
US $4.80 |
||
|
8
|
8
09204-01002-000 PINCotter pin |
09204-01002-000 |
from US $0.96 |
||
|
9
|
9
09116-06234-000 BOLT(6X35) |
09116-06234-000 |
US $2.29 |
||
|
10
|
10
09160-06046-000 WASHER(6.5X20X1.5)Washer (6.5x20x1.5) |
09160-06046-000 |
from US $1.22 |
||
|
11
|
11
09160-06094-000 WASHER(6.5X15X1.0)Washer (6.5x15x1.5) |
09160-06094-000 |
from US $0.91 |
||
|
12
|
12
09164-14008-000 WASHERWasher, wave |
09164-14008-000 |
from US $1.52 |
||
|
13
|
13
09180-06186-000 SPACER(6.2X12.6X21)Spacer, throttle lever no.2 |
09180-06186-000 |
from US $8.93 |
||
|
14
|
14
09180-06362-000 SPACER(6.5X10.5X4) |
09180-06362-000 |
from US $1.05 |
||
|
15
|
15
09260-12003-000 BALL |
09260-12003-000 |
from US $6.29 |
||
|
16
|
16
09440-09041-000 SPRING |
09440-09041-000 |
from US $4.28 |
||
|
17
|
17
01550-06127-000 BOLTBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
18
|
18
01550-06257-000 BOLT |
01550-06257-000 |
from US $0.96 |
||
|
19
|
19
02142-06207-000 SCREW |
02142-06207-000 |
from US $0.80 |
||
