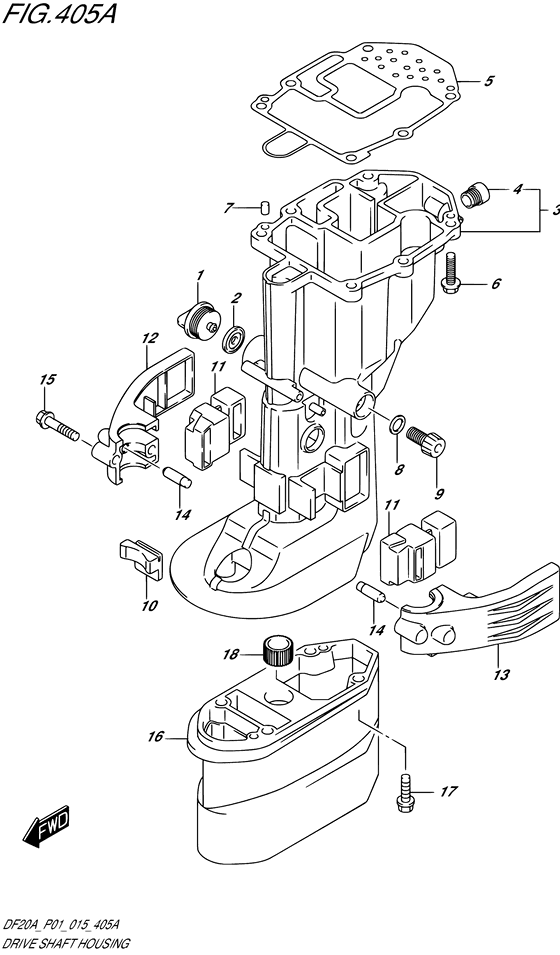

Drive shaft housing Diagram Suzuki DF20A S/L; RS/L; T(H)S/L
- Year
- 2015
- Model
- DF20A
- Year
- 2015
- Engine
- 02002F-510001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 20
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17913-93J00-000 PLUG,WATER |
17913-93J00-000 |
from US $4.26 |
||
|
2
|
2
17914-93J00-000
GASKET,WATER PLUG
|
17914-93J00-000 |
— | ||
| replacement | |||||
|
2
|
2
17914-93J01-000 Gasket,water Plug |
17914-93J01-000 |
from US $2.61 |
||
|
3
|
3
52110-89L00-0EP
HOUSING,DRIVE SHAFT(S)(BLACK)
W/TRANSOM(S) |
52110-89L00-0EP |
— | ||
| replacement | |||||
|
3
|
3
52110-89L20-0EP Housing Comp,drive Shaft(S)W/TRANSOM(S) |
52110-89L20-0EP |
US $416 |
||
|
3
|
3
52110-89L10-0EP
HOUSING,DRIVE SHAFT(L)
W/TRANSOM(L) W/TRANSOM(X) |
52110-89L10-0EP |
— | ||
| replacement | |||||
|
3
|
3
52110-89L30-0EP Housing,drive Shaft(L)(Black)W/TRANSOM(L) W/TRANSOM(X) |
52110-89L30-0EP |
US $351.52 |
||
|
4
|
4
43112-99E00-000 PIPE,EXHAUST |
43112-99E00-000 |
from US $2.40 |
||
|
5
|
5
52113-89L00-000 GASKET,DRIVE SHAFT HOUSING |
52113-89L00-000 |
US $18.40 |
||
|
6
|
6
09116-08151-000 BOLT(8X30) |
09116-08151-000 |
US $4.96 |
||
|
7
|
7
09202-06023-000 PIN(6X10) |
09202-06023-000 |
US $21.70 |
||
|
8
|
8
09168-12017-000 GASKET(12X17X1)Gasket, drain plug |
09168-12017-000 |
from US $1.06 |
||
|
9
|
9
09248-12009-000 PLUG(12X18.65) |
09248-12009-000 |
from US $3.11 |
||
|
10
|
10
54151-99J00-000 MOUNT,LWR THRUST |
54151-99J00-000 |
US $7.84 |
||
|
11
|
11
54167-99J01-000 MOUNT,LOWER SIDE |
54167-99J01-000 |
US $15.68 |
||
|
12
|
12
54211-99J01-0EP COVER,LOWER MOUNT STBD |
54211-99J01-0EP |
US $66.32 |
||
|
13
|
13
54221-99J01-0EP COVER,LOWER MOUNT PORT |
54221-99J01-0EP |
US $87.20 |
||
|
14
|
14
54213-93901-000 PIN,LWR MOUNT COVER KNOCK |
54213-93901-000 |
US $2.43 |
||
|
15
|
15
09116-08154-000
BOLT(8X40)
|
09116-08154-000 |
— | ||
|
16
|
16
52131-89L00-0EP CASE,EXTENSIONW/TRANSOM(X) |
52131-89L00-0EP |
US $206.08 |
||
|
17
|
17
09116-08151-000 BOLT(8X30)W/TRANSOM(X) |
09116-08151-000 |
US $4.96 |
||
|
18
|
18
09320-13022-000 BUSHW/TRANSOM(X) |
09320-13022-000 |
from US $5.41 |
||
