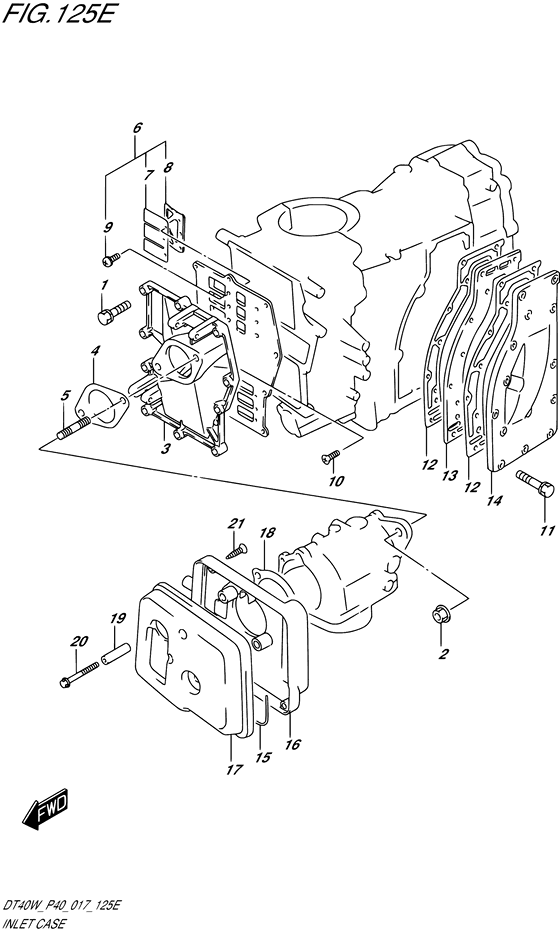

Inlet case ((DT40WK P40)) Diagram Suzuki DT40 WS/L/L2; WRS/L/L2; WKS/L/L2; WKRS/L/L2
- Year
- 2017
- Model
- DT40
- Year
- 2017
- Engine
- 04005-710001~ (04005K-710001~)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Region Code
- P40/P90
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01550-0630C-000 Bolt |
01550-0630C-000 |
from US $3.54 |
||
|
2
|
2
08316-10087-000 NUT |
08316-10087-000 |
from US $0.80 |
||
|
3
|
3
13111-92L10-YAY
New Genuine Part
|
13111-92L10-YAY |
— | ||
| replacement | |||||
|
3
|
3
13111-92L10-000 CASE,INLET (KEROSENE) |
13111-92L10-000 |
US $193.20 |
||
|
4
|
4
13125-95210-000 GASKET,CARBURETORGasket, carburetor |
13125-95210-000 |
US $1.88 |
||
|
5
|
5
01411-0820A-000 BOLT,STUD |
01411-0820A-000 |
from US $2.03 |
||
|
6
|
6
13150-92L00-000
VALVE ASSY,REED
|
13150-92L00-000 |
— | ||
|
7
|
7
13153-92L00-000
VALVE,REED
|
13153-92L00-000 |
— | ||
|
8
|
8
13152-92L00-000
STOPPER,REED VALVE
|
13152-92L00-000 |
— | ||
|
9
|
9
02112-3306A-000 SCREW |
02112-3306A-000 |
from US $3.15 |
||
|
10
|
10
02122-06167-000 SCREW |
02122-06167-000 |
from US $0.76 |
||
|
11
|
11
01550-0630C-000 Bolt |
01550-0630C-000 |
from US $3.54 |
||
|
12
|
12
14151-92L00-000
Gasket,exhaust cover
|
14151-92L00-000 |
— | ||
| replacement | |||||
|
12
|
12
14151-94412-000 GASKET,EXHAUST COVER |
14151-94412-000 |
US $20 |
||
|
13
|
13
14131-92L10-000 PLATE,EXHAUST |
14131-92L10-000 |
US $32.02 |
||
|
14
|
14
14141-92L10-000 COVER,EXHAUST |
14141-92L10-000 |
US $45.63 |
||
|
15
|
15
09280-63001-000
O RING(D:1.9,ID:63.1)
|
09280-63001-000 |
— | ||
| replacement | |||||
|
15
|
15
09280-63005-000 O Ring |
09280-63005-000 |
from US $3.42 |
||
|
16
|
16
13811-92L10-000 CASE,SILENCER |
13811-92L10-000 |
US $33.49 |
||
|
17
|
17
13812-92L00-000 COVER,SILENCER |
13812-92L00-000 |
US $40 |
||
|
18
|
18
13855-95210-000 GASKET,SILENCER |
13855-95210-000 |
US $1.40 |
||
|
19
|
19
09180-06254-000 SPACER(6.1X8X34) |
09180-06254-000 |
from US $5.44 |
||
|
20
|
20
09116-06513-000 BOLT(6X45) |
09116-06513-000 |
US $25.40 |
||
|
21
|
21
03222-0520B-000 SCREW |
03222-0520B-000 |
from US $4.28 |
||
