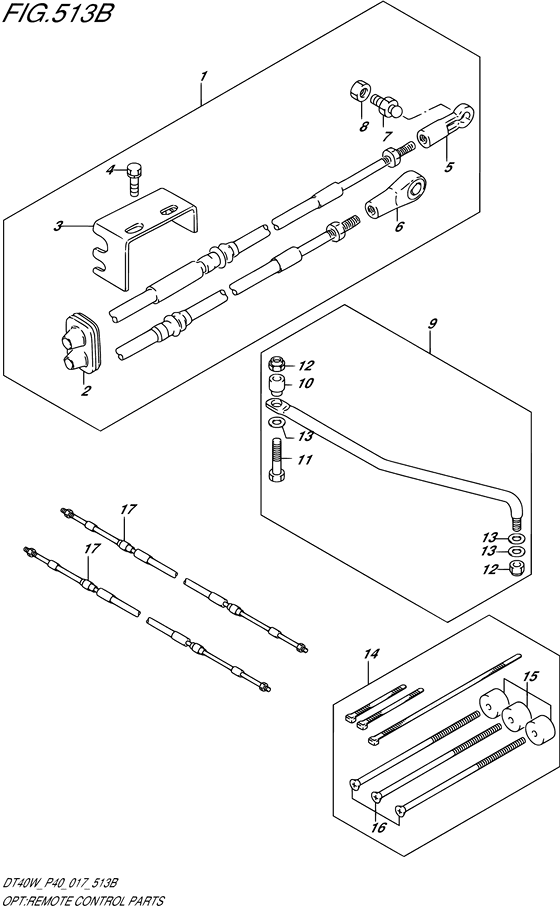

Opt:remote control parts ((DT40W P90)) Diagram Suzuki DT40 WS/L/L2; WRS/L/L2; WKS/L/L2; WKRS/L/L2
- Year
- 2017
- Model
- DT40
- Year
- 2017
- Engine
- 04005-710001~ (04005K-710001~)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Region Code
- P40/P90
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67130-94812-000 PARTS SET,REMOCON |
67130-94812-000 |
US $54.56 |
||
|
2
|
2
67331-94400-000 GROMMET,REMO-CON CABLEGrommet, remo-con cable |
67331-94400-000 |
US $15.84 |
||
|
3
|
3
67341-94400-000 HOLDER,REMOCON CABLEHolder, remo-con cable |
67341-94400-000 |
US $18.48 |
||
|
4
|
4
09116-06237-000 BOLT(6X15) |
09116-06237-000 |
US $17.30 |
||
|
5
|
5
67466-95200-000 CONNECTORConnector, throttle cable |
67466-95200-000 |
US $6.51 |
||
|
6
|
6
67467-94404-000 CONNECTOR |
67467-94404-000 |
US $7.20 |
||
|
7
|
7
09119-06047-000 PIVOTPivot, ball |
09119-06047-000 |
from US $9.91 |
||
|
8
|
8
29141-93J00-000 NUT |
29141-93J00-000 |
from US $1.52 |
||
|
9
|
9
67701-94430-000 LINK ASSY,DRAG |
67701-94430-000 |
US $94.58 |
||
|
10
|
10
67721-94310-000 SPACER |
67721-94310-000 |
US $10.40 |
||
|
11
|
11
67725-99E20-000 BOLT,DRAG LINK |
67725-99E20-000 |
US $6.40 |
||
|
12
|
12
67726-99E00-000 NUT,LOCK |
67726-99E00-000 |
US $3.65 |
||
|
13
|
13
67728-99E00-000 WASHER |
67728-99E00-000 |
US $1.95 |
||
|
14
|
14
67140-95600-000
ATTACHMENT KIT,TWIN REMOCON
|
67140-95600-000 |
— | ||
| replacement | |||||
|
14
|
14
67140-95601-000 Attachment Kit,twin Remocon |
67140-95601-000 |
US $40.80 |
||
|
15
|
15
67294-95600-000 SPACER |
67294-95600-000 |
US $4.64 |
||
|
16
|
16
67296-95621-000 SCREW(L:165) |
67296-95621-000 |
US $8.98 |
||
|
17
|
17
67320-93J00-000 CABLE ASSY,REMOCON(8F:2.4M) |
67320-93J00-000 |
US $177.57 |
||
|
17
|
17
67320-93J10-000 CABLE ASSY,REMOCON(10F:3.1M) |
67320-93J10-000 |
from US $56.81 |
||
|
17
|
17
67320-93J20-000 CABLE ASSY,REMOCON(12F:3.7M) |
67320-93J20-000 |
from US $52.99 |
||
|
17
|
17
67320-93J30-000 CABLE ASSY,REMOCON(14F:4.2M) |
67320-93J30-000 |
from US $66.67 |
||
|
17
|
17
67320-93J40-000 CABLE ASSY,REMOCON(16F:4.8M) |
67320-93J40-000 |
from US $61.46 |
||
|
17
|
17
67320-93J50-000 CABLE ASSY,REMOCON(18F:5.4M) |
67320-93J50-000 |
from US $65.87 |
||
|
17
|
17
67320-93J60-000 CABLE ASSY,REMOCON(20F:6.1M) |
67320-93J60-000 |
from US $70.29 |
||
|
17
|
17
67320-93J70-000 CABLE ASSY,REMOCON(22F:6.7M) |
67320-93J70-000 |
from US $74.70 |
||
|
17
|
17
67320-93J80-000 CABLE ASSY,REMOCON(24F:7.3M) |
67320-93J80-000 |
from US $79.12 |
||
