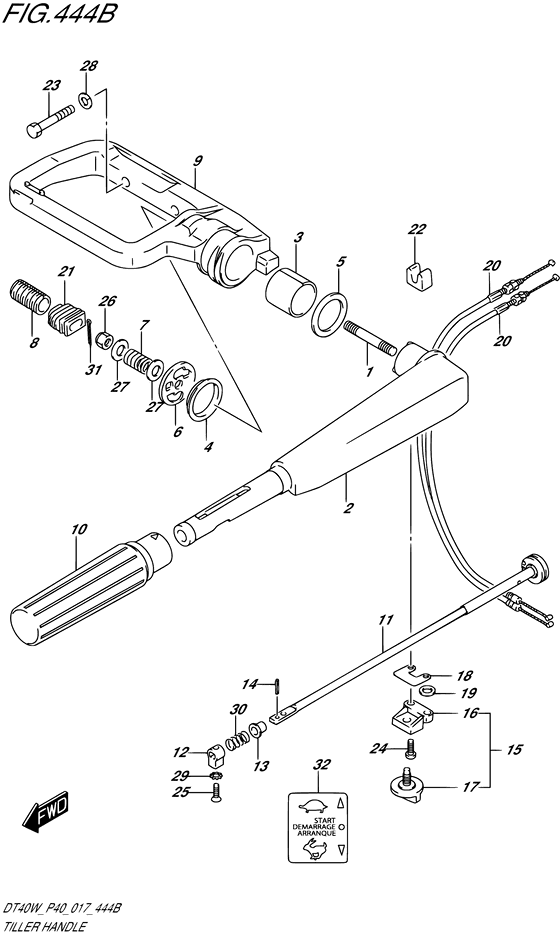

Tiller handle ((DT40W P90)) Diagram Suzuki DT40 WS/L/L2; WRS/L/L2; WKS/L/L2; WKRS/L/L2
- Year
- 2017
- Model
- DT40
- Year
- 2017
- Engine
- 04005-710001~ (04005K-710001~)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Region Code
- P40/P90
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
09108-10137-000 BOLT,STUD |
09108-10137-000 |
US $180.70 |
||
|
2
|
2
63111-92L00-YAY
HANDLE,TILLER
|
63111-92L00-YAY |
— | ||
|
3
|
3
63115-97E00-000 BUSH,TILLER HANDLEBush, tiller handle |
63115-97E00-000 |
US $4.42 |
||
|
4
|
4
63116-97E00-000 WASHER,TILLER HANDLE NO.1Washer, tiller handle no.1 |
63116-97E00-000 |
US $6.38 |
||
|
5
|
5
63117-97E01-000 WASHER,TILLER HANDLE NO.2Washer, tiller handle no.2 |
63117-97E01-000 |
US $6.08 |
||
|
6
|
6
63125-97E01-000 PLATE,TILLER HANDLEPlate, tiller handle |
63125-97E01-000 |
US $8.21 |
||
|
7
|
7
63126-97E01-000 SPRING,HANDLE STUD |
63126-97E01-000 |
US $7.99 |
||
|
8
|
8
63128-97E00-000 COVER,HANDLE NUTCover, handle nut |
63128-97E00-000 |
US $2.80 |
||
|
9
|
9
63131-92L10-YAY
BRACKET,TILLER HANDLE
|
63131-92L10-YAY |
— | ||
|
10
|
10
63210-93E30-000 GRIP,HANDLEGrip, handle |
63210-93E30-000 |
US $21.56 |
||
|
11
|
11
63220-91L00-000
ROD,HANDLE
|
63220-91L00-000 |
— | ||
|
12
|
12
63223-92D00-000 STOPPER,HANDLE RODStopper, handle rod |
63223-92D00-000 |
US $4.46 |
||
|
13
|
13
63225-93200-000 BUSH,HANDLE RODBush, handle rod |
63225-93200-000 |
US $1.95 |
||
|
14
|
14
09205-03038-000 PIN,SPRING(3X14)Pin, rod |
09205-03038-000 |
from US $0.89 |
||
|
15
|
15
63240-94J10-000
ADJUSTER SET,HANDLE ROD
|
63240-94J10-000 |
— | ||
| replacement | |||||
|
15
|
15
63240-94J20-000 Adjuster Set,handle Rod |
63240-94J20-000 |
US $7.58 |
||
|
16
|
16
63241-986B0-000 SUPPORT,HANDLE ROD |
63241-986B0-000 |
US $3.36 |
||
|
17
|
17
63244-94J00-000 KNOB,THROTTLE ADJKnob, adjuster |
63244-94J00-000 |
US $4.56 |
||
|
18
|
18
63225-94J00-000 PLATE,HANDLE ROD ADJUSTER |
63225-94J00-000 |
US $1.93 |
||
|
19
|
19
09148-06008-000 NUTNut, adjuster knob |
09148-06008-000 |
from US $0.83 |
||
|
20
|
20
63610-92L00-000 Cable assy,throttle |
63610-92L00-000 |
US $12.93 |
||
|
21
|
21
63625-96300-000
GROMMET,THROTTLE CABLE
|
63625-96300-000 |
— | ||
| replacement | |||||
|
21
|
21
63625-96301-000 Grommet,throttle Cable |
63625-96301-000 |
US $2.38 |
||
|
22
|
22
63627-94400-000 GUIDE,THROTTLE CABLEGuide, throttle cable |
63627-94400-000 |
US $3.46 |
||
|
23
|
23
09100-10317-000 BOLT(10X50) |
09100-10317-000 |
US $108.90 |
||
|
24
|
24
09136-05041-000 SCREW(5X20)Screw, rod adjuster |
09136-05041-000 |
from US $1.78 |
||
|
25
|
25
09126-06015-000 SCREW(6X23) |
09126-06015-000 |
US $4.13 |
||
|
26
|
26
09159-10050-000 NUT |
09159-10050-000 |
US $5.63 |
||
|
27
|
27
09160-10082-000 WASHER(10.5X19X2)Washer |
09160-10082-000 |
from US $0.96 |
||
|
28
|
28
09162-10005-000 WASHER,LOCKLock washer |
09162-10005-000 |
from US $1.28 |
||
|
29
|
29
09163-06001-000 WASHER,LOCK |
09163-06001-000 |
from US $2.35 |
||
|
30
|
30
09440-12027-000 SPRING |
09440-12027-000 |
from US $1.62 |
||
|
31
|
31
09204-01002-000 PINCotter pin |
09204-01002-000 |
from US $0.96 |
||
|
32
|
32
63215-93401-000 MARK,HANDLE |
63215-93401-000 |
US $1.80 |
||
