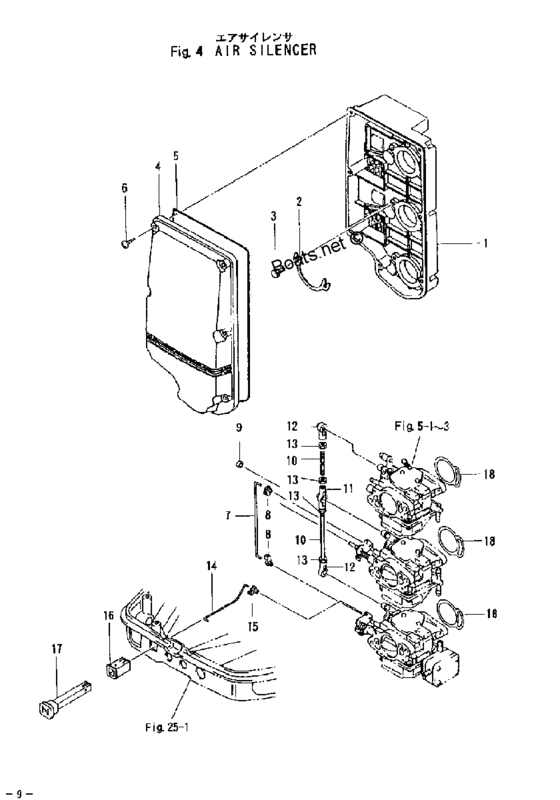

Air silencer Diagram Tohatsu M50D2
- Year
- 2002
- Model
- M50D2
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3E3-02411-0 Intake Silencer |
3E3-02411-0 |
US $26.64 |
||
|
2
|
2
3C8-02417-0 Intake Silencer Lock Plate |
3C8-02417-0 |
from US $3.17 |
||
|
3
|
3
3C8-02420-0 Bolt |
3C8-02420-0 |
from US $1.44 |
||
|
4
|
4
3C8-02415-0 Intake Silencer Cover |
3C8-02415-0 |
from US $19.58 |
||
|
5
|
5
3C8-02418-0 Gasket |
3C8-02418-0 |
from US $6.19 |
||
|
6
|
6
3F3-02423-0 Tapping Screw |
3F3-02423-0 |
from US $1.15 |
||
|
7
|
7
3C8-67191-0 C-Link 3-90 |
3C8-67191-0 |
from US $2.45 |
||
| replacement | |||||
|
7
|
7
3C8-67191-1 Choke Rod |
3C8-67191-1 |
US $2.16 |
||
|
8
|
8
346-67196-1 Rod Snap |
346-67196-1 |
from US $2.02 |
||
|
9
|
9
353-03271-0 StopperE TYPE |
353-03271-0 |
from US $1.58 |
||
|
10
|
10
348-63717-0 Handle Link Rod |
348-63717-0 |
from US $3.46 |
||
| replacement | |||||
|
10
|
10
348-63717-1 Rod |
348-63717-1 |
from US $2.88 |
||
|
11
|
11
3B7-05229-0 Ball Joint Connector |
3B7-05229-0 |
from US $2.30 |
||
|
12
|
12
3B7-05243-0 Ball Joint Connector |
3B7-05243-0 |
from US $2.36 |
||
|
14
|
14
3C8-67192-0 Choke Rod |
3C8-67192-0 |
from US $2.59 |
||
|
15
|
15
346-67196-1 Rod Snap |
346-67196-1 |
from US $2.02 |
||
|
16
|
16
3C8-67153-0 Bushing Choke Knob |
3C8-67153-0 |
from US $3.74 |
||
| replacement | |||||
|
16
|
16
3C8-67156-0 Bushing |
3C8-67156-0 |
from US $3.10 |
||
|
17
|
17
3C8-67151-0 Choke Knob |
3C8-67151-0 |
US $4.90 |
||
| replacement | |||||
|
17
|
17
3C8-67151-1 Choke Rod |
3C8-67151-1 |
US $4.22 |
||
|
18
|
18
3E3-02011-0 Carburetor Gasket |
3E3-02011-0 |
from US $2.59 |
||
