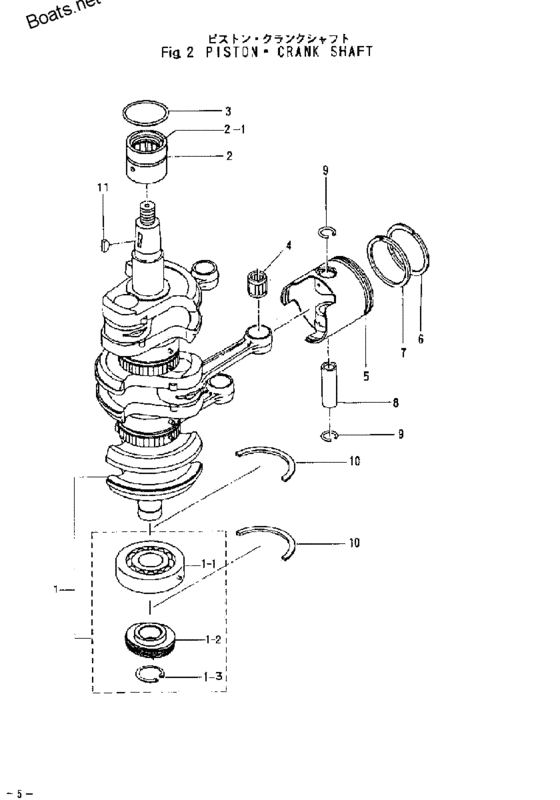

Piston & crank shaft Diagram Tohatsu M50D2
- Year
- 2002
- Model
- M50D2
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3C8-00030-0
Crank Shaft Ass'y (40D)
|
3C8-00030-0 |
— | ||
| replacement | |||||
|
1
|
1
3E5-00050-1 Crankshaft Assy W/gear |
3E5-00050-1 |
from US $1,119.60 |
||
|
1
|
1
3C8-00121-0 Oil Seal |
3C8-00121-0 |
from US $14.20 |
||
|
1-1
|
1-1
3J2-00114-0 Main Bearing |
3J2-00114-0 |
from US $33.87 |
||
|
1-2
|
1-2
3C8-09060-0 Oil Pump Drive Gear |
3C8-09060-0 |
from US $105.85 |
||
|
1-3
|
1-3
945107-2500 C-Ring |
945107-2500 |
US $1.45 |
||
|
2
|
2
3C8-00113-0 Main Bearing |
3C8-00113-0 |
from US $64.80 |
||
|
3
|
3
3C8-00108-0 O-Ring |
3C8-00108-0 |
from US $2.16 |
||
|
4
|
4
345-00042-0 Roller Bearing |
345-00042-0 |
from US $11.81 |
||
|
5
|
5
3C8-00001-3
Piston (Standard)
OPT |
3C8-00001-3 |
— | ||
| replacement | |||||
|
5
|
5
3C8-00001-4 Piston (STD)OPT |
3C8-00001-4 |
from US $50.40 |
||
|
5
|
5
3C8-00004-3
Piston (0.5Mm O/s)
|
3C8-00004-3 |
— | ||
| replacement | |||||
|
5
|
5
3C8-00004-4 Piston (0.5 O/s) |
3C8-00004-4 |
from US $53.28 |
||
|
6
|
6
356-00011-0 Piston RingOPT |
356-00011-0 |
from US $17.46 |
||
|
6
|
6
356-00014-0 Piston Ring (0.5 O/s) |
356-00014-0 |
from US $13.54 |
||
|
7
|
7
346-00011-0 Piston Ring |
346-00011-0 |
from US $8.44 |
||
|
7
|
7
346-00014-0 Piston Ring (0.5 O/s)OPT |
346-00014-0 |
from US $13.54 |
||
|
8
|
8
3C8-00021-0 Piston Pin |
3C8-00021-0 |
US $11.36 |
||
| replacement | |||||
|
8
|
8
3C8-00021-1 Piston Pin |
3C8-00021-1 |
from US $8.64 |
||
|
9
|
9
334-00024-1 Piston Pin Clip |
334-00024-1 |
from US $1.68 |
||
|
10
|
10
346-00115-0 Thrust Plate |
346-00115-0 |
from US $2.45 |
||
|
11
|
11
334-00131-0 Key |
334-00131-0 |
from US $2.45 |
||
