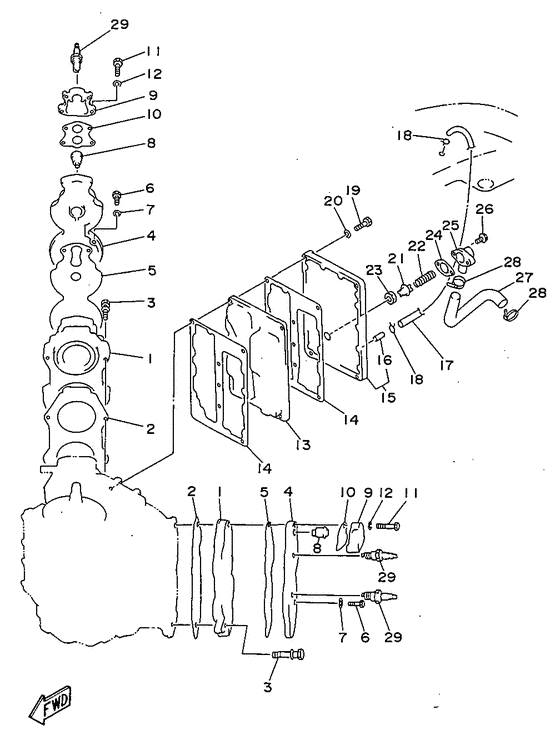

Cylinder. crankcase 2 Diagram Yamaha 100 ETOL
- Year
- 1998
- Model
- 100A
- Model code
- 64W
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 100
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6E5-11111-10-94 Head, Cylinder 1 |
6E5-11111-10-94 |
US $386.01 |
||
| replacement | |||||
|
01
|
01
6E5-11111-10-1S Head, Cylinder 1 |
6E5-11111-10-1S |
from US $269.53 |
||
|
02
|
02
6E5-11181-A0-00 Gasket, Cylinder Head 1 |
6E5-11181-A0-00 |
US $92.43 |
||
| replacement | |||||
|
02
|
02
6E5-11181-A2-00 Gasket, Cylinder Head 1 |
6E5-11181-A2-00 |
from US $47.80 |
||
|
03
|
03
90119-08M21-00 Bolt,with Washer |
90119-08M21-00 |
from US $3.08 |
||
| replacement | |||||
|
03
|
03
90119-08M07-00 Bolt, With Washer |
90119-08M07-00 |
from US $4.68 |
||
|
04
|
04
6E5-11191-01-9M Cover, Cylinder Head 1 |
6E5-11191-01-9M |
US $116.88 |
||
| replacement | |||||
|
04
|
04
6E5-11191-01-1S Cover, Cylinder Head 1 |
6E5-11191-01-1S |
from US $61.67 |
||
|
05
|
05
6E5-11193-A0-00 Gasket, Head Cover 1 |
6E5-11193-A0-00 |
from US $39.40 |
||
|
06
|
06
970-95060-30-00
Bolt
|
970-95060-30-00 |
— | ||
| replacement | |||||
|
06
|
06
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
07
|
07
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
08
|
08
6E5-12411-20-00 Thermostat |
6E5-12411-20-00 |
US $50.01 |
||
| replacement | |||||
|
08
|
08
6E5-12411-30-00 Thermostat |
6E5-12411-30-00 |
from US $40.10 |
||
|
09
|
09
6G5-12413-00-9M Cover, Thermostat |
6G5-12413-00-9M |
US $41.03 |
||
| replacement | |||||
|
09
|
09
6G5-12413-00-1S Cover, Thermostat |
6G5-12413-00-1S |
from US $23.60 |
||
|
10
|
10
688-12414-A1-00 Gasket, Cover |
688-12414-A1-00 |
from US $2.70 |
||
|
11
|
11
97095-06040-00 Bolt |
97095-06040-00 |
from US $1.28 |
||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
13
|
13
6E5-41111-00-9M Inner Cover, Exhaust |
6E5-41111-00-9M |
US $118.13 |
||
| replacement | |||||
|
13
|
13
6E5-41111-00-1S Inner Cover, Exhaust |
6E5-41111-00-1S |
from US $111.38 |
||
|
14
|
14
6E5-41112-A1-00 Gasket, Exhaust Inner Cover |
6E5-41112-A1-00 |
from US $26.49 |
||
|
15
|
15
6N7-41113-00-9M Outer Cover, Exhaust |
6N7-41113-00-9M |
US $122.55 |
||
| replacement | |||||
|
15
|
15
6N7-41113-00-1S Outer Cover, Exhaust |
6N7-41113-00-1S |
from US $116.03 |
||
|
16
|
16
652-24461-00-00 Pipe, Joint 4 |
652-24461-00-00 |
from US $3.97 |
||
|
17
|
17
6E5-24312-00-00 Pipe 2 |
6E5-24312-00-00 |
from US $9.21 |
||
|
18
|
18
90467-08004-00 Clip |
90467-08004-00 |
from US $1.70 |
||
|
19
|
19
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
20
|
20
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
21
|
21
6G5-12416-00-00 Valve, Pressure Cont |
6G5-12416-00-00 |
from US $15.16 |
||
| replacement | |||||
|
21
|
21
60H-12416-00-00 Valve, Pressure Control |
60H-12416-00-00 |
from US $9.44 |
||
|
22
|
22
90501-16M11-00 Spring, Compression |
90501-16M11-00 |
from US $2.36 |
||
|
23
|
23
904-8020M-05-00 Grommet |
904-8020M-05-00 |
from US $1.36 |
||
|
24
|
24
6G5-11382-A1-00 Gasket 2 |
6G5-11382-A1-00 |
from US $1.70 |
||
|
25
|
25
6G5-11372-00-5B Nipple, Hose (6G5-11372-00-9M) |
6G5-11372-00-5B |
US $20.54 |
||
| replacement | |||||
|
25
|
25
6G5-11372-00-1S Cover, Bypass 2 |
6G5-11372-00-1S |
from US $20.54 |
||
|
26
|
26
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
26
|
26
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
26
|
26
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
27
|
27
6E5-12576-00-00 Hose 1 |
6E5-12576-00-00 |
from US $14.59 |
||
|
28
|
28
90465-13M36-00 Clamp |
90465-13M36-00 |
US $1.98 |
||
| replacement | |||||
|
28
|
28
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.36 |
||
|
29
|
29
947-02002-47-00
Plug, Spark (Ngk Br8Hs-10)
|
947-02002-47-00 |
— | ||
| replacements | |||||
|
29
|
29
BR8-HS000-00-00 BR8HS NGK SCREW TOP PLUG 4PK (4-PACK) |
BR8-HS000-00-00 |
US $26.36 |
||
|
29
|
29
NGK-BR8HS-00-00 Br8Hs Ngk Screw Top |
NGK-BR8HS-00-00 |
US $23.40 |
||
