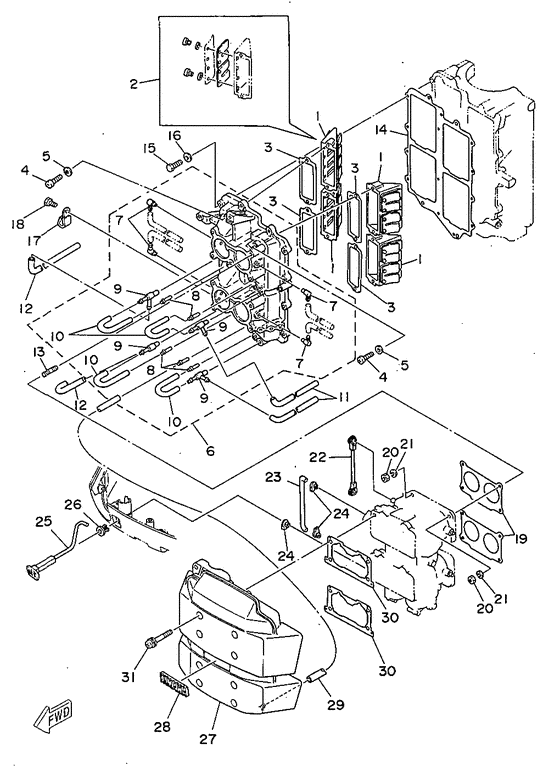

Intake Diagram Yamaha 100 ETOL
- Year
- 1998
- Model
- 100A
- Model code
- 64W
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 100
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6E5-13610-00-00 Reed Valve Assy |
6E5-13610-00-00 |
from US $85.30 |
||
|
02
|
02
6E5-W0004-00-00 Reed Set |
6E5-W0004-00-00 |
from US $52.78 |
||
|
03
|
03
6E5-13621-A1-00 Gasket, Valve Seat |
6E5-13621-A1-00 |
from US $2.66 |
||
|
04
|
04
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
05
|
05
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
06
|
06
6E5-13641-11-94 Manifold, Intake 1 |
6E5-13641-11-94 |
US $463.76 |
||
| replacement | |||||
|
06
|
06
6E5-13641-11-1S Manifold 1 |
6E5-13641-11-1S |
from US $463.76 |
||
|
07
|
07
6E5-13552-00-00 Nozzle |
6E5-13552-00-00 |
US $5.95 |
||
| replacement | |||||
|
07
|
07
6E5-13552-01-00 Nozzle |
6E5-13552-01-00 |
from US $2.98 |
||
|
08
|
08
624-14485-00-00 Pipe, Joint |
624-14485-00-00 |
from US $5.24 |
||
|
09
|
09
6E5-11370-00-00 Check Valve Assy |
6E5-11370-00-00 |
US $23.24 |
||
| replacement | |||||
|
09
|
09
6E5-11370-01-00 Check Valve Assy |
6E5-11370-01-00 |
from US $12.58 |
||
|
10
|
10
90445-07M28-00 Hose (L70) |
90445-07M28-00 |
US $3.83 |
||
| replacement | |||||
|
10
|
10
90445-07MA3-00 Hose (L200) |
90445-07MA3-00 |
from US $2.32 |
||
|
11
|
11
904-4507M-24-00
Hose (L240)
|
904-4507M-24-00 |
— | ||
| replacements | |||||
|
11
|
11
904-4507M-90-00 Hose (L390) |
904-4507M-90-00 |
from US $3.98 |
||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
904-4507M-46-00
Hose (L390)
|
904-4507M-46-00 |
— | ||
| replacement | |||||
|
12
|
12
904-4507M-90-00 Hose (L390) |
904-4507M-90-00 |
from US $3.98 |
||
|
13
|
13
90116-06M30-00 Bolt, Stud |
90116-06M30-00 |
from US $1.98 |
||
|
14
|
14
6E5-13645-A1-00 Gasket, Manifold 1 |
6E5-13645-A1-00 |
from US $15.88 |
||
|
15
|
15
97013-06025-00 Bolt |
97013-06025-00 |
from US $1.48 |
||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
17
|
17
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
18
|
18
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
18
|
18
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
19
|
19
6E5-14198-A2-00 Gasket |
6E5-14198-A2-00 |
from US $6.30 |
||
|
20
|
20
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
22
|
22
6E5-41217-01-00 Rod, Accel. Lever |
6E5-41217-01-00 |
from US $18.70 |
||
|
23
|
23
6E5-41256-01-00 Rod, Choke 1 |
6E5-41256-01-00 |
from US $5.67 |
||
|
24
|
24
661-41262-02-00 Joint, Choke Lever |
661-41262-02-00 |
from US $7.62 |
||
|
25
|
25
6N7-41271-00-00 Knob, Choke |
6N7-41271-00-00 |
US $22.24 |
||
| replacement | |||||
|
25
|
25
6N7-41271-01-00 Knob, Choke |
6N7-41271-01-00 |
from US $22.24 |
||
|
26
|
26
689-41273-00-00 Grommet |
689-41273-00-00 |
from US $2.98 |
||
|
27
|
27
6N7-14440-01-00 Silencer Assy, Intake |
6N7-14440-01-00 |
from US $221.06 |
||
|
28
|
28
6E5-1441K-00-00 Emblem |
6E5-1441K-00-00 |
from US $45.67 |
||
|
29
|
29
90445-07M08-00 Hose (L220) |
90445-07M08-00 |
US $4.25 |
||
| replacement | |||||
|
29
|
29
904-4507M-90-00 Hose (L390) |
904-4507M-90-00 |
from US $3.98 |
||
|
30
|
30
6K7-14483-00-00 Gasket |
6K7-14483-00-00 |
from US $1.66 |
||
|
31
|
31
90159-06M14-00 Screw, With Washer |
90159-06M14-00 |
from US $3.54 |
||
