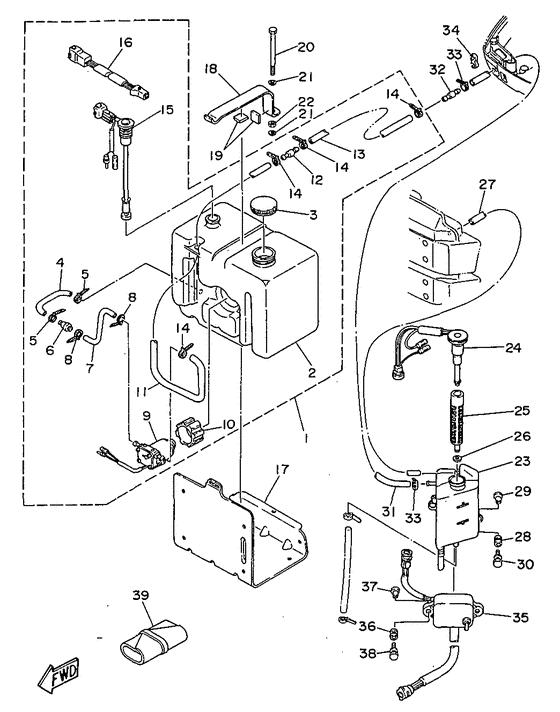

Rpservoir a huile Diagram Yamaha 100 ETOL
- Year
- 1998
- Model
- 100A
- Model code
- 64W
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 100
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6E5-21708-08-00 Oil Tank Sub-Assy |
6E5-21708-08-00 |
US $1,036.20 |
||
| replacements | |||||
|
01
|
01
6E5-21708-10-00 Sub Oil Tank Assy |
6E5-21708-10-00 |
US $1,036.20 |
||
|
01
|
01
6E5-21708-11-00 Sub Oil Tank Assy |
6E5-21708-11-00 |
US $915.13 |
||
|
02
|
02
6E5-21733-02-00 Sub Tank, Oil (10.5L) |
6E5-21733-02-00 |
US $126.42 |
||
| replacements | |||||
|
02
|
02
6E5-21733-20-00 Sub Tank, Oil (10.5L) |
6E5-21733-20-00 |
US $126.42 |
||
|
02
|
02
6E5-21733-21-00 Sub Tank, Oil (10.5L) |
6E5-21733-21-00 |
US $163.22 |
||
|
03
|
03
6E5-21770-03-00 Oil Tank Cap Assy |
6E5-21770-03-00 |
from US $33.15 |
||
|
04
|
04
6E5-24322-00-00 Pipe 11 |
6E5-24322-00-00 |
from US $5.24 |
||
|
05
|
05
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
05
|
05
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
05
|
05
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.35 |
||
|
06
|
06
646-24251-02-00 Strainer 1 |
646-24251-02-00 |
from US $14.45 |
||
|
07
|
07
6E5-24319-01-00 Pipe, Oil |
6E5-24319-01-00 |
from US $7.65 |
||
|
08
|
08
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
08
|
08
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
08
|
08
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.35 |
||
|
09
|
09
6E5-81900-01-00 Oil Feed Pump Assy |
6E5-81900-01-00 |
from US $292.90 |
||
|
10
|
10
6E5-81922-00-00 Grommet |
6E5-81922-00-00 |
US $10.20 |
||
|
11
|
11
6E5-24321-01-00 Pipe 10 |
6E5-24321-01-00 |
from US $14.59 |
||
|
12
|
12
6E5-24379-00-00 Pipe, Joint 4 |
6E5-24379-00-00 |
from US $4.53 |
||
|
13
|
13
90445-11M81-00 Hose (L3000) |
90445-11M81-00 |
from US $34.57 |
||
|
14
|
14
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
14
|
14
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
14
|
14
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.35 |
||
|
15
|
15
6E5-85720-04-00 Oil Level Gauge Assy |
6E5-85720-04-00 |
from US $126.77 |
||
| replacement | |||||
|
15
|
15
6E5-85720-06-00 Oil Level Gauge Assy |
6E5-85720-06-00 |
from US $134.25 |
||
|
16
|
16
6R3-85721-30-00 Wire, Lead (L=3M) |
6R3-85721-30-00 |
from US $79.86 |
||
|
17
|
17
6E5-21734-01-33 Holder, Oil Sub Tank |
6E5-21734-01-33 |
from US $118.96 |
||
|
18
|
18
6E5-21798-01-33 Bracket, Damper |
6E5-21798-01-33 |
from US $59.55 |
||
|
19
|
19
6E5-21746-00-00 Damper |
6E5-21746-00-00 |
from US $3.12 |
||
|
20
|
20
97080-06100-00 Bolt |
97080-06100-00 |
from US $7.51 |
||
|
21
|
21
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
22
|
22
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
23
|
23
6E5-21750-05-00 Oil Tank Assy |
6E5-21750-05-00 |
from US $119.18 |
||
|
24
|
24
6G7-85730-03-00 Oil Level Gauge Assy |
6G7-85730-03-00 |
US $178.23 |
||
| replacement | |||||
|
24
|
24
6G7-85730-05-00 Oil Level Gauge Assy |
6G7-85730-05-00 |
from US $169.60 |
||
|
25
|
25
6E5-13411-00-00 Strainer, Oil |
6E5-13411-00-00 |
from US $21.11 |
||
|
26
|
26
6E5-13414-00-00 Gasket, Strainer Cover |
6E5-13414-00-00 |
from US $2.41 |
||
|
27
|
27
90445-05M02-00 Hose (L380) |
90445-05M02-00 |
US $4.34 |
||
| replacement | |||||
|
27
|
27
904-4505M-07-00 Hose (L700) |
904-4505M-07-00 |
from US $4.34 |
||
|
28
|
28
6A0-82317-00-00 Damper, Ignition Coil |
6A0-82317-00-00 |
from US $4.53 |
||
| replacement | |||||
|
28
|
28
6A0-82317-01-00 DAMPER IGNITION COIL |
6A0-82317-01-00 |
from US $2.02 |
||
|
29
|
29
624-42542-00-00 Collar |
624-42542-00-00 |
US $6.23 |
||
| replacement | |||||
|
29
|
29
90387-06119-00 Collar |
90387-06119-00 |
from US $2.36 |
||
|
30
|
30
90119-06M65-00 Bolt,with Washer |
90119-06M65-00 |
US $3.83 |
||
| replacement | |||||
|
30
|
30
90119-06M95-00 Bolt, With Washer |
90119-06M95-00 |
US $3.83 |
||
|
31
|
31
6N7-24323-00-00
Pipe 12
|
6N7-24323-00-00 |
— | ||
|
32
|
32
6E5-24379-00-00 Pipe, Joint 4 |
6E5-24379-00-00 |
from US $4.53 |
||
|
33
|
33
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
33
|
33
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
33
|
33
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.35 |
||
|
34
|
34
90464-13M34-00 Clamp |
90464-13M34-00 |
from US $1.98 |
||
|
35
|
35
6E5-85740-02-00 Control Unit Assy |
6E5-85740-02-00 |
US $621.72 |
||
| replacement | |||||
|
35
|
35
6E5-WS857-00-00 Control Unit Kit |
6E5-WS857-00-00 |
from US $499.07 |
||
|
36
|
36
6A0-82317-00-00 Damper, Ignition Coil |
6A0-82317-00-00 |
from US $4.53 |
||
| replacement | |||||
|
36
|
36
6A0-82317-01-00 DAMPER IGNITION COIL |
6A0-82317-01-00 |
from US $2.02 |
||
|
37
|
37
624-42542-00-00 Collar |
624-42542-00-00 |
US $6.23 |
||
| replacement | |||||
|
37
|
37
90387-06119-00 Collar |
90387-06119-00 |
from US $2.36 |
||
|
38
|
38
90119-06M65-00 Bolt,with Washer |
90119-06M65-00 |
US $3.83 |
||
| replacement | |||||
|
38
|
38
90119-06M95-00 Bolt, With Washer |
90119-06M95-00 |
US $3.83 |
||
|
39
|
39
656-W2810-02-00 Tool Kit |
656-W2810-02-00 |
US $40.62 |
||
| replacements | |||||
|
39
|
39
656-W2810-03-00 Tool Kit |
656-W2810-03-00 |
from US $40.62 |
||
|
39
|
39
656-W2810-03-00 Tool Kit |
656-W2810-03-00 |
from US $40.62 |
||
