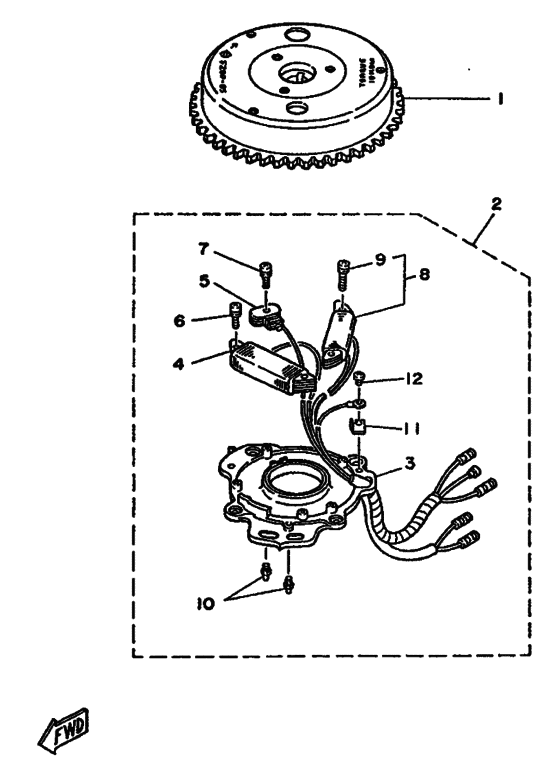

Magneto Diagram Yamaha 15 WHS/L
- Year
- 1987
- Model
- 15D
- Model code
- 6E8
- Year
- 1987
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6E7-85550-A0-00
Rotor Assy
|
6E7-85550-A0-00 |
— | ||
|
2
|
2
6E7-85560-A0-00
Base Assy
|
6E7-85560-A0-00 |
— | ||
|
3
|
3
6E7-85509-70-00 Base, Magneto |
6E7-85509-70-00 |
US $132.38 |
||
|
4
|
4
6E7-85520-70-00 Coil, Charge |
6E7-85520-70-00 |
from US $179.61 |
||
|
5
|
5
6E7-85580-70-00 Coil, Pulser |
6E7-85580-70-00 |
from US $76.38 |
||
|
6
|
6
90159-05039-00 Screw, W/washer |
90159-05039-00 |
from US $2.13 |
||
|
7
|
7
90159-05038-00
Screw, With Washer
|
90159-05038-00 |
— | ||
| replacement | |||||
|
7
|
7
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.07 |
||
|
8
|
8
6E7-81303-A0-00 Lighting Coil Assy |
6E7-81303-A0-00 |
from US $133.60 |
||
|
9
|
9
90159-05039-00 Screw, W/washer |
90159-05039-00 |
from US $2.13 |
||
|
10
|
10
663-85518-00-00 Joint, Ball |
663-85518-00-00 |
from US $8.64 |
||
|
11
|
11
6E7-81328-70-00
Clamp, Cord
|
6E7-81328-70-00 |
— | ||
|
12
|
12
97802-04006-00 Screw, Pan Head(9.9DE/15DE MODEL) |
97802-04006-00 |
US $1.56 |
||
| replacements | |||||
|
12
|
12
98517-04006-00 Screw, Pan Head(9.9DE/15DE MODEL) |
98517-04006-00 |
from US $1.28 |
||
|
12
|
12
999-99999-99-00
Not Available
(9.9DE/15DE MODEL) |
999-99999-99-00 |
— | ||
