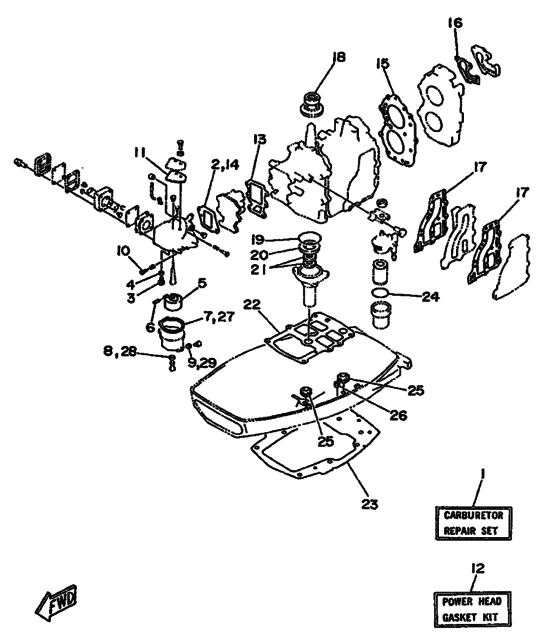

Repair kit 1 Diagram Yamaha 15 WHS/L
- Year
- 1987
- Model
- 15D
- Model code
- 6E8
- Year
- 1987
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
677-W0093-01-00 Carburetor Repair Kit |
677-W0093-01-00 |
US $106.11 |
||
| replacement | |||||
|
1
|
1
6E7-W0093-04-00 Carburetor Repair Set |
6E7-W0093-04-00 |
from US $45.97 |
||
|
2
|
2
677-14198-00-00 Gasket |
677-14198-00-00 |
US $3.26 |
||
| replacement | |||||
|
2
|
2
677-14198-A1-00 Gasket |
677-14198-A1-00 |
from US $3.26 |
||
|
3
|
3
6E7-14390-12-00 Needle Valve AssyValve seat assy |
6E7-14390-12-00 |
US $26.49 |
||
| replacement | |||||
|
3
|
3
6E8-14390-12-00 Needle Valve Assembly |
6E8-14390-12-00 |
from US $26.49 |
||
|
4
|
4
367-14195-00-00 Washer, Needle Valve |
367-14195-00-00 |
from US $3.40 |
||
|
5
|
5
6E7-14385-00-00 Float |
6E7-14385-00-00 |
from US $26.49 |
||
|
6
|
6
647-14386-00-00
Pin, Float
|
647-14386-00-00 |
— | ||
| replacement | |||||
|
6
|
6
647-14386-10-00 Pin, Float |
647-14386-10-00 |
from US $2.88 |
||
|
7
|
7
677-14384-01-00 Gasket, Float Chamber |
677-14384-01-00 |
US $7.51 |
||
|
8
|
8
1J2-14398-00-00 Gasket |
1J2-14398-00-00 |
from US $2.02 |
||
|
9
|
9
655-14398-00-00 Gasket |
655-14398-00-00 |
from US $3.24 |
||
|
10
|
10
648-14321-00-00
Screw, Pan Head
|
648-14321-00-00 |
— | ||
| replacement | |||||
|
10
|
10
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
11
|
11
6E7-14227-00-00 Gasket |
6E7-14227-00-00 |
US $8.08 |
||
|
12
|
12
682-W0001-03-00 Pwr Head Gsk Kit |
682-W0001-03-00 |
US $253.94 |
||
| replacement | |||||
|
12
|
12
682-W0001-A3-00 Gasket Kit |
682-W0001-A3-00 |
from US $197.14 |
||
|
13
|
13
682-13621-00-00 Gasket, Valve Seat (9.9 Model) |
682-13621-00-00 |
US $8.64 |
||
| replacement | |||||
|
13
|
13
682-13621-A0-00 Gasket, Valve Seat |
682-13621-A0-00 |
from US $7.70 |
||
|
14
|
14
677-14198-00-00 Gasket |
677-14198-00-00 |
US $3.26 |
||
| replacement | |||||
|
14
|
14
677-14198-A1-00 Gasket |
677-14198-A1-00 |
from US $3.26 |
||
|
15
|
15
682-11181-01-00 Gasket, Cylinder Head 1 |
682-11181-01-00 |
US $68.94 |
||
| replacement | |||||
|
15
|
15
6E7-11181-A2-00 Gasket, Cylinder Head 1 |
6E7-11181-A2-00 |
from US $42.53 |
||
|
16
|
16
682-12414-00-00 Gasket, Cover |
682-12414-00-00 |
US $3.83 |
||
| replacement | |||||
|
16
|
16
682-12414-A1-00 Gasket, Cover |
682-12414-A1-00 |
from US $2.70 |
||
|
17
|
17
682-41112-00-00 Gasket, Exhaust Inner Cover |
682-41112-00-00 |
US $13.60 |
||
| replacement | |||||
|
17
|
17
682-41112-A1-00 Gasket, Exhaust Inner Cover |
682-41112-A1-00 |
from US $10.69 |
||
|
18
|
18
93110-23M00-00 Oil Seal |
93110-23M00-00 |
from US $8.08 |
||
|
19
|
19
93210-50M08-00
O-Ring
|
93210-50M08-00 |
— | ||
|
20
|
20
93101-20M10-00 Oil Seal, S-Type |
93101-20M10-00 |
from US $14.58 |
||
|
21
|
21
93101-13M11-00 Oil Seal |
93101-13M11-00 |
from US $7.76 |
||
|
22
|
22
682-11351-02-00 Gasket, Cylinder |
682-11351-02-00 |
US $23.38 |
||
| replacement | |||||
|
22
|
22
682-11351-A0-00 Gasket, Cylinder |
682-11351-A0-00 |
from US $14.82 |
||
|
23
|
23
682-45113-02-00 Gasket, Upper Casing |
682-45113-02-00 |
US $19.13 |
||
| replacement | |||||
|
23
|
23
682-45113-A3-00 GASKET, UPPER CASING |
682-45113-A3-00 |
from US $18.74 |
||
|
24
|
24
93210-37M25-00 O-Ring |
93210-37M25-00 |
from US $4.68 |
||
|
25
|
25
682-44367-00-00 Damper, Water Seal 3 |
682-44367-00-00 |
from US $8.64 |
||
|
26
|
26
682-44366-00-00 Damper, Water Seal 2 |
682-44366-00-00 |
from US $8.08 |
||
|
28
|
28
1J2-14398-00-00 Gasket |
1J2-14398-00-00 |
from US $2.02 |
||
|
29
|
29
655-14398-00-00 Gasket |
655-14398-00-00 |
from US $3.24 |
||
|
57
|
57
677-14384-01-00 Gasket, Float Chamber |
677-14384-01-00 |
US $7.51 |
||
