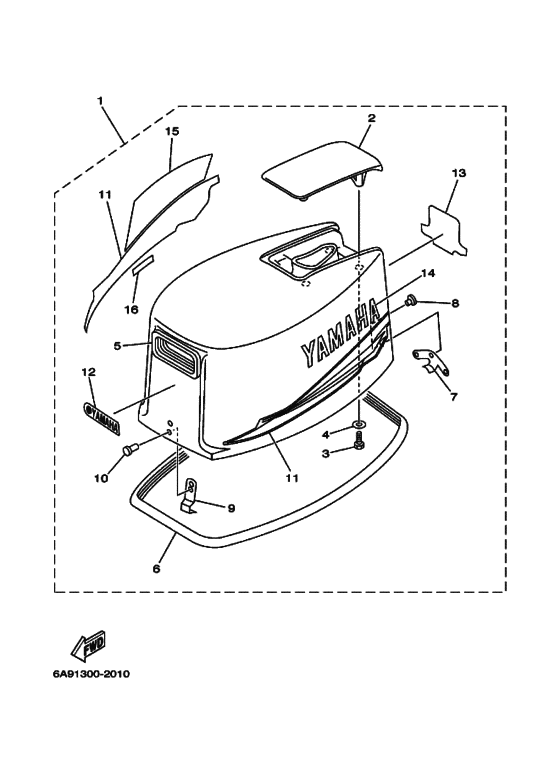

Top cowling Diagram Yamaha 20 MHS/L
- Year
- 2002
- Model
- 20C
- Model code
- 6A9
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (030)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6A9-42610-D0-4D
Top Cowling Assy
|
6A9-42610-D0-4D |
— | ||
| replacement | |||||
|
1
|
1
6A9-42610-D0-00
Top Cowling Assy
|
6A9-42610-D0-00 |
— | ||
|
2
|
2
689-42613-01-4D
Molding, Air Duct
|
689-42613-01-4D |
— | ||
|
3
|
3
97095-06012-00 Bolt |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
3
|
3
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
4
|
4
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
4
|
4
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
5
|
5
689-15761-00-00 Seal, Rubber 1 |
689-15761-00-00 |
from US $17 |
||
|
6
|
6
6G0-42615-00-00 Seal |
6G0-42615-00-00 |
US $50.29 |
||
|
7
|
7
689-42647-00-00 Holder, Clamp Band |
689-42647-00-00 |
from US $14.78 |
||
|
8
|
8
90266-04M01-00 Rivet |
90266-04M01-00 |
from US $2.83 |
||
|
9
|
9
6G0-42651-02-00 Hook |
6G0-42651-02-00 |
from US $9.21 |
||
|
10
|
10
90266-04M00-00 Rivet |
90266-04M00-00 |
from US $2.83 |
||
|
11
|
11
695-W0070-12-00 Graphic Set |
695-W0070-12-00 |
US $28.21 |
||
|
12
|
12
695-42677-C0-00 Graphic, Front |
695-42677-C0-00 |
US $19.27 |
||
|
13
|
13
6A9-42678-11-00 Graphic, Rear |
6A9-42678-11-00 |
US $6.94 |
||
|
14
|
14
695-42681-11-00 Mark, Cowling |
695-42681-11-00 |
US $14.17 |
||
|
15
|
15
695-42682-12-00 Mark, Cowling |
695-42682-12-00 |
US $14.17 |
||
|
16
|
16
6E0-44191-11-00 Indicator, Shift |
6E0-44191-11-00 |
US $4.68 |
||
| replacement | |||||
|
16
|
16
6X3-44191-00-00 Indicator, Shift |
6X3-44191-00-00 |
from US $4.68 |
||
