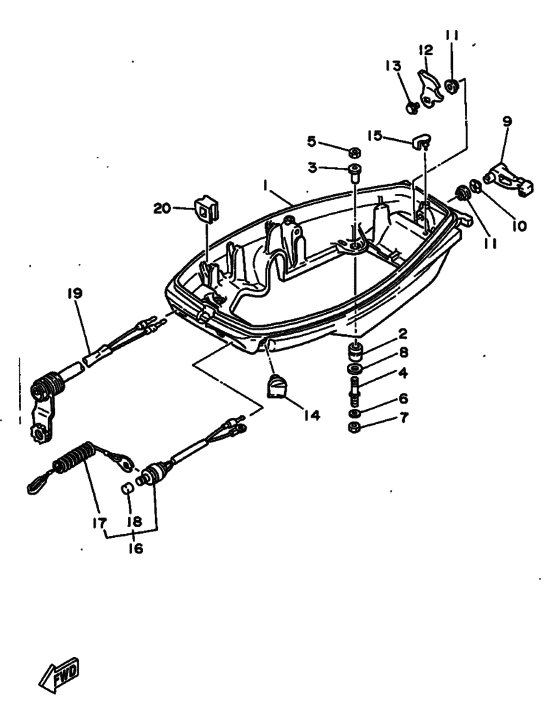

Bottom cowling Diagram Yamaha 20 MHS/L
- Year
- 1997
- Model
- 20C
- Model code
- 6A9
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
689-42711-03-4D Cowling, Bottom 1 |
689-42711-03-4D |
US $473.31 |
||
| replacement | |||||
|
1
|
1
689-42711-05-8D COWLING, BOTTOM 1 |
689-42711-05-8D |
from US $283.91 |
||
|
2
|
2
90480-15M06-00 Grommet |
90480-15M06-00 |
from US $2 |
||
|
3
|
3
90387-08M25-00 Collar |
90387-08M25-00 |
from US $6.38 |
||
|
4
|
4
6G0-42796-00-00 Bolt 1 |
6G0-42796-00-00 |
from US $9.07 |
||
|
5
|
5
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
6
|
6
92990-08960-00
Washer
|
92990-08960-00 |
— | ||
|
7
|
7
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
8
|
8
90201-08M87-00 Washer, Plate |
90201-08M87-00 |
from US $4.96 |
||
|
9
|
9
689-42815-00-00 Lever, Clamp |
689-42815-00-00 |
from US $21.54 |
||
|
10
|
10
902-06120-52-00 Washer, Wave |
902-06120-52-00 |
from US $2.32 |
||
|
11
|
11
90386-12069-00 Bush |
90386-12069-00 |
from US $1.84 |
||
|
12
|
12
689-42816-00-00 Lever, Clamp |
689-42816-00-00 |
from US $17.14 |
||
|
13
|
13
90119-06M73-00 Bolt, With Washer |
90119-06M73-00 |
from US $4.12 |
||
| replacements | |||||
|
13
|
13
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
13
|
13
90119-06273-00 |
90119-06273-00 |
from US $3.40 |
||
|
14
|
14
689-42725-01-00 Grommet |
689-42725-01-00 |
US $10.20 |
||
| replacement | |||||
|
14
|
14
689-42725-02-00 Grommet |
689-42725-02-00 |
from US $9.59 |
||
|
15
|
15
647-42523-00-00 Spacer, Friction |
647-42523-00-00 |
from US $4.53 |
||
|
16
|
16
689-82575-04-00
Engine Stop Switch Assy
|
689-82575-04-00 |
— | ||
| replacement | |||||
|
16
|
16
6E9-82575-02-00 Engine Stop Switch Assy |
6E9-82575-02-00 |
from US $50.98 |
||
|
17
|
17
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
18
|
18
689-8257Y-00-00 Cap |
689-8257Y-00-00 |
from US $4.82 |
||
|
19
|
19
682-84381-00-00 2P Concent |
682-84381-00-00 |
from US $45.77 |
||
|
20
|
20
90480-17M08-00 Grommet |
90480-17M08-00 |
from US $7.37 |
||
