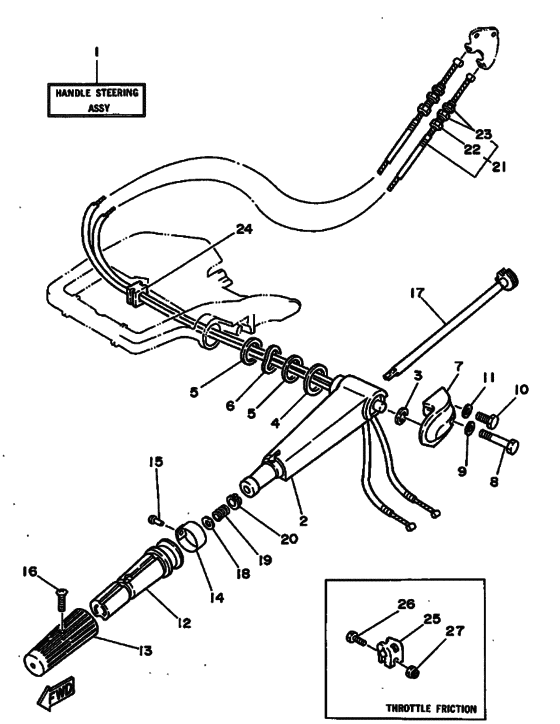

Steering Diagram Yamaha 20 MHS/L
- Year
- 1997
- Model
- 20C
- Model code
- 6A9
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6A9-W0084-11-4D
Handle Steering Assy
|
6A9-W0084-11-4D |
— | ||
| replacement | |||||
|
1
|
1
6A9-W0084-10-4D
Handle Steering Assy
|
6A9-W0084-10-4D |
— | ||
|
2
|
2
689-42111-01-4D Handle, Steering |
689-42111-01-4D |
US $79.72 |
||
| replacement | |||||
|
2
|
2
689-42111-01-8D HANDLE, STEERING |
689-42111-01-8D |
from US $76.84 |
||
|
3
|
3
90560-14076-00 Entretoise |
90560-14076-00 |
US $5.14 |
||
|
4
|
4
90202-34043-00 Rondelle, Plate |
90202-34043-00 |
US $4.04 |
||
|
5
|
5
90201-28M00-00
Rondelle, Plate
|
90201-28M00-00 |
— | ||
|
6
|
6
90206-28M07-00 Rondelle, Ondulee |
90206-28M07-00 |
US $4.56 |
||
|
7
|
7
689-42112-01-4D Poignee |
689-42112-01-4D |
US $94.36 |
||
| replacement | |||||
|
7
|
7
99999-03925-00 Handle, Steering |
99999-03925-00 |
from US $52.96 |
||
|
8
|
8
97095-06050-00 Bolt |
97095-06050-00 |
US $1.28 |
||
| replacement | |||||
|
8
|
8
970-80060-50-00 Bolt |
970-80060-50-00 |
from US $2.98 |
||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
10
|
10
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
10
|
10
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
12
|
12
664-42119-00-00 Grip, Steering Handle |
664-42119-00-00 |
from US $20.18 |
||
|
13
|
13
6G1-42177-00-00
Rubber, Handle
|
6G1-42177-00-00 |
— | ||
| replacement | |||||
|
13
|
13
6G1-42177-01-00 RUBBER, HANDLE |
6G1-42177-01-00 |
from US $11.76 |
||
|
14
|
14
6A9-42137-01-00 Indicator, Throttle |
6A9-42137-01-00 |
US $8.66 |
||
|
15
|
15
90269-02M09-00 Rivet |
90269-02M09-00 |
from US $1.98 |
||
|
16
|
16
901-4905M-13-00
Screw
|
901-4905M-13-00 |
— | ||
| replacement | |||||
|
16
|
16
901-52050-11-00 Screw, Countersunk |
901-52050-11-00 |
from US $1.34 |
||
|
17
|
17
689-42138-00-00 Lever, Throttle |
689-42138-00-00 |
from US $14.22 |
||
|
18
|
18
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
19
|
19
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
20
|
20
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
21
|
21
689-26311-03-00 Cable, Throttle 1 |
689-26311-03-00 |
US $34 |
||
| replacement | |||||
|
21
|
21
6J0-26311-02-00 Cable, Throttle 1 |
6J0-26311-02-00 |
from US $34 |
||
|
22
|
22
90123-06M00-00 Bolt(6A9) |
90123-06M00-00 |
from US $2.50 |
||
|
23
|
23
90170-06183-00 Ecrou |
90170-06183-00 |
from US $2.98 |
||
|
24
|
24
90480-12156-00 Grommet |
90480-12156-00 |
US $3.44 |
||
|
25
|
25
656-42126-01-00 Friction, Steering Handle Grip |
656-42126-01-00 |
from US $12.33 |
||
|
26
|
26
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
26
|
26
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
27
|
27
90185-06062-00 Nut, Self-Locking |
90185-06062-00 |
from US $2.69 |
||
