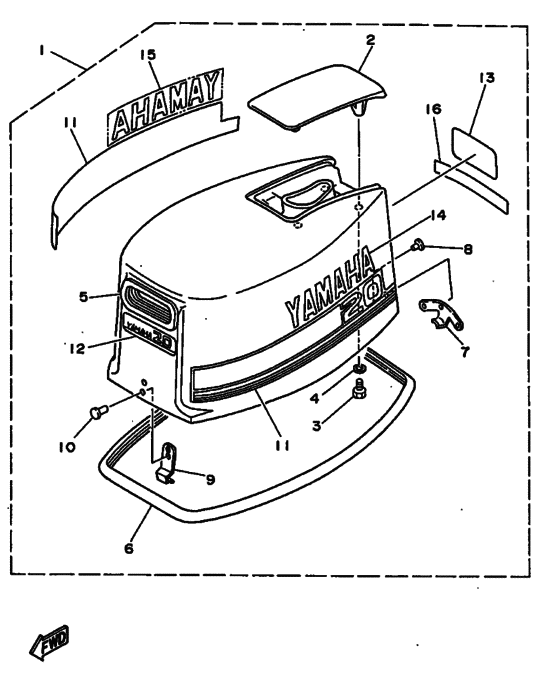

Top cowling Diagram Yamaha 20 MHS/L
- Year
- 1997
- Model
- 20C
- Model code
- 6A9
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6A9-42610-14-4D
Top Cowling Assy
|
6A9-42610-14-4D |
— | ||
| replacement | |||||
|
1
|
1
6A9-42610-D0-00
Top Cowling Assy
|
6A9-42610-D0-00 |
— | ||
|
2
|
2
689-42613-01-4D
Molding, Air Duct
|
689-42613-01-4D |
— | ||
|
3
|
3
97095-06012-00 Bolt |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
3
|
3
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
4
|
4
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
5
|
5
689-15761-00-00 Seal, Rubber 1 |
689-15761-00-00 |
from US $17 |
||
|
6
|
6
6G0-42615-00-00 Seal |
6G0-42615-00-00 |
US $50.29 |
||
|
7
|
7
689-42647-00-00 Holder, Clamp Band |
689-42647-00-00 |
from US $14.78 |
||
|
8
|
8
90266-04M01-00 Rivet |
90266-04M01-00 |
from US $2.83 |
||
|
9
|
9
6G0-42651-02-00 Hook |
6G0-42651-02-00 |
from US $9.21 |
||
|
10
|
10
90266-04M00-00 Rivet |
90266-04M00-00 |
from US $2.83 |
||
|
11
|
11
6A9-W0070-10-00
Graphic Set
|
6A9-W0070-10-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
6A9-42677-20-00
Graphic, Front
|
6A9-42677-20-00 |
— | ||
|
13
|
13
6A9-42678-21-00
Graphic, Rear
|
6A9-42678-21-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
695-42681-10-00
Mark, Cowling (Yamaha)
|
695-42681-10-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
695-42682-11-00
Mark, Cowling (Yamaha)
|
695-42682-11-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
695-4267A-10-00
Graphic, Rear 2
|
695-4267A-10-00 |
— | ||
