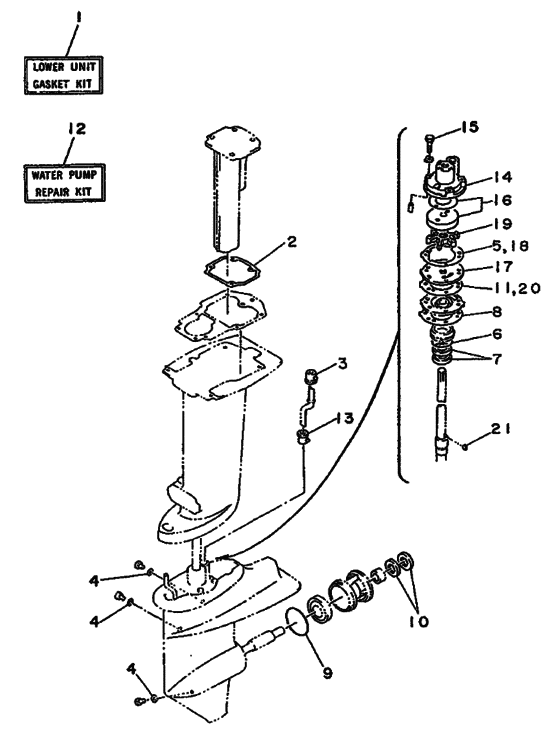

Repair kit 2 Diagram Yamaha 20 MHS/L
- Year
- 1996
- Model
- 20C
- Model code
- 6A9
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
689-W0001-22-00 Gasket Kit |
689-W0001-22-00 |
US $86.56 |
||
| replacement | |||||
|
1
|
1
689-W0001-C2-00 Gasket Kit, Lower Unit |
689-W0001-C2-00 |
from US $74.52 |
||
|
2
|
2
664-41134-00-00 Gasket, Exh.mani.2 |
664-41134-00-00 |
US $19.13 |
||
| replacement | |||||
|
2
|
2
664-41134-A0-00 Gasket, Exhaust Manifold |
664-41134-A0-00 |
from US $10.22 |
||
|
3
|
3
689-44366-00-00 Damper, Water Seal 2 |
689-44366-00-00 |
US $1.35 |
||
|
4
|
4
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.28 |
||
| replacement | |||||
|
4
|
4
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.28 |
||
|
5
|
5
689-44324-01-00 Gasket, Cartridge |
689-44324-01-00 |
US $8.08 |
||
| replacement | |||||
|
5
|
5
689-44324-A0-00 Gasket, Cartridge |
689-44324-A0-00 |
from US $8.08 |
||
|
6
|
6
93210-40M10-00 O-Ring |
93210-40M10-00 |
from US $3.40 |
||
|
7
|
7
931-01220-67-00 Oil Seal |
931-01220-67-00 |
from US $7.51 |
||
|
8
|
8
689-44315-01-00 Gasket, Water Pump |
689-44315-01-00 |
US $9.63 |
||
| replacement | |||||
|
8
|
8
689-44315-A0-00 Gasket, Water Pump |
689-44315-A0-00 |
from US $8.69 |
||
|
9
|
9
93210-60M17-00 O-Ring |
93210-60M17-00 |
US $6.09 |
||
| replacement | |||||
|
9
|
9
93210-60MA3-00 O-Ring |
93210-60MA3-00 |
from US $6.09 |
||
|
10
|
10
931-0120M-07-00 Oil Seal |
931-0120M-07-00 |
from US $4.64 |
||
|
11
|
11
689-44316-00-00 Gasket, Water Pump Pump |
689-44316-00-00 |
US $6.94 |
||
| replacement | |||||
|
11
|
11
689-44316-A0-00 Gasket, Water Pump |
689-44316-A0-00 |
from US $6.94 |
||
|
12
|
12
689-W0078-05-00
Water Pump Repair Kit
|
689-W0078-05-00 |
— | ||
| replacement | |||||
|
12
|
12
689-W0078-A6-00 Water Pump Repair Kit |
689-W0078-A6-00 |
from US $65.30 |
||
|
13
|
13
626-44365-01-00 Damper, Water Seal 1 |
626-44365-01-00 |
US $3.54 |
||
|
14
|
14
689-44311-03-00 Housing, Water Pump |
689-44311-03-00 |
from US $47.99 |
||
|
15
|
15
90101-06M56-00 Bolt |
90101-06M56-00 |
from US $2.83 |
||
| replacement | |||||
|
15
|
15
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
16
|
16
689-W4432-02-00 Insert Cartridge Comp |
689-W4432-02-00 |
from US $35.33 |
||
|
17
|
17
689-44323-03-00 Outer Plate, Cartridge |
689-44323-03-00 |
from US $15.19 |
||
|
18
|
18
689-44324-01-00 Gasket, Cartridge |
689-44324-01-00 |
US $8.08 |
||
| replacement | |||||
|
18
|
18
689-44324-A0-00 Gasket, Cartridge |
689-44324-A0-00 |
from US $8.08 |
||
|
19
|
19
689-44352-00-00 Impeller |
689-44352-00-00 |
US $24.23 |
||
| replacement | |||||
|
19
|
19
689-44352-02-00 Impeller |
689-44352-02-00 |
from US $24.23 |
||
|
20
|
20
689-44316-00-00 Gasket, Water Pump Pump |
689-44316-00-00 |
US $6.94 |
||
| replacement | |||||
|
20
|
20
689-44316-A0-00 Gasket, Water Pump |
689-44316-A0-00 |
from US $6.94 |
||
|
21
|
21
664-44338-00-00 Key, Woodruff |
664-44338-00-00 |
from US $6.23 |
||
