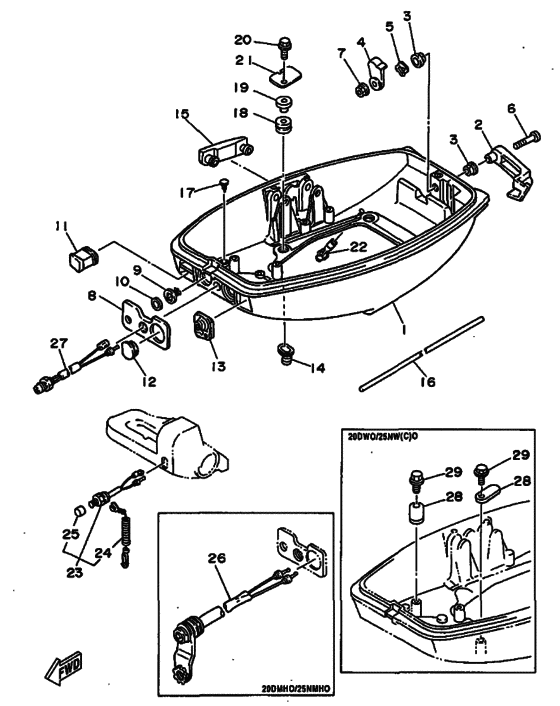

Bottom cowling Diagram Yamaha 20 MHOS/L
- Year
- 1998
- Model
- 20D
- Model code
- 6L3
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (10C)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6L2-42711-03-4D Cowling, Bottom 1 |
6L2-42711-03-4D |
US $613.80 |
||
| replacement | |||||
|
1
|
1
6L2-42711-03-8D COWLING, BOTTOM 1 |
6L2-42711-03-8D |
from US $399.83 |
||
|
2
|
2
6L2-42815-01-4D Lever, Clamp |
6L2-42815-01-4D |
US $19.13 |
||
| replacement | |||||
|
2
|
2
6L2-42815-01-8D LEVER, CLAMP |
6L2-42815-01-8D |
from US $16.70 |
||
|
3
|
3
903-8612M-45-00 Bush |
903-8612M-45-00 |
from US $9.92 |
||
|
4
|
4
6L2-42816-00-00 Lever, Clamp |
6L2-42816-00-00 |
from US $11.14 |
||
|
5
|
5
902-06120-52-00 Washer, Wave |
902-06120-52-00 |
from US $2.36 |
||
|
6
|
6
97885-06035-00 Screw, Pan Head |
97885-06035-00 |
from US $2.13 |
||
|
7
|
7
95780-06300-00 P58 Nut, Nylon |
95780-06300-00 |
from US $4.11 |
||
|
8
|
8
6L2-42719-A0-00 Panel, Front Lower |
6L2-42719-A0-00 |
from US $29.04 |
||
|
9
|
9
689-41273-00-00 Grommet |
689-41273-00-00 |
from US $3.04 |
||
|
10
|
10
6J8-41274-00-00 Grommet 2 |
6J8-41274-00-00 |
from US $1.36 |
||
|
11
|
11
6L2-42725-00-00 Grommet |
6L2-42725-00-00 |
from US $5.53 |
||
|
12
|
12
6G1-42724-00-00 Grommet |
6G1-42724-00-00 |
US $5.67 |
||
| replacement | |||||
|
12
|
12
6G1-42724-01-00 Grommet |
6G1-42724-01-00 |
US $15.50 |
||
|
13
|
13
6L2-42726-01-00 Grommet |
6L2-42726-01-00 |
US $8.22 |
||
| replacement | |||||
|
13
|
13
6L2-42726-02-00 Grommet |
6L2-42726-02-00 |
US $11.14 |
||
|
13
|
13
6L2-42726-10-00 GrommetUR 20DW0/25NW0 |
6L2-42726-10-00 |
US $4.84 |
||
|
14
|
14
6G1-42727-00-00 Grommet 4 |
6G1-42727-00-00 |
US $7.51 |
||
|
15
|
15
6L2-42748-01-00 Grommet |
6L2-42748-01-00 |
US $8.93 |
||
| replacement | |||||
|
15
|
15
6L2-42748-02-00 Grommet |
6L2-42748-02-00 |
from US $8.57 |
||
|
16
|
16
6L2-42716-00-00 Rubber, Seal 1EN CAOUTCHOUC 1 |
6L2-42716-00-00 |
US $9.35 |
||
|
17
|
17
90338-05M03-00 Plug |
90338-05M03-00 |
from US $1.84 |
||
|
18
|
18
90480-15M31-00 Grommet |
90480-15M31-00 |
from US $3.54 |
||
|
19
|
19
90387-06M52-00 Collar |
90387-06M52-00 |
from US $5.38 |
||
|
20
|
20
95895-06020-00 Bolt, Flange |
95895-06020-00 |
US $1.42 |
||
| replacements | |||||
|
20
|
20
95880-06020-00 Bolt, Flange(Jk3) |
95880-06020-00 |
from US $1.56 |
||
|
20
|
20
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
20
|
20
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
21
|
21
6L2-42738-01-00 Plate, Fitting |
6L2-42738-01-00 |
from US $2.55 |
||
|
22
|
22
6H3-44391-01-00
Nipple, Hose
|
6H3-44391-01-00 |
— | ||
| replacement | |||||
|
22
|
22
6BL-44391-00-00 Nipple, Hose |
6BL-44391-00-00 |
from US $0.93 |
||
|
23
|
23
689-82575-04-00
Engine Stop Switch Assy
|
689-82575-04-00 |
— | ||
| replacement | |||||
|
23
|
23
6E9-82575-02-00 Engine Stop Switch Assy |
6E9-82575-02-00 |
from US $50.98 |
||
|
23
|
23
6G1-42725-00-00 Passe-FilUR 25NWC0 |
6G1-42725-00-00 |
US $5.24 |
||
|
24
|
24
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
25
|
25
689-8257Y-00-00 Cap |
689-8257Y-00-00 |
from US $4.82 |
||
|
26
|
26
682-84381-00-00 2P ConcentFILS |
682-84381-00-00 |
from US $45.77 |
||
|
27
|
27
6J8-85410-00-00 Emergency Signal Light AssyDE DETRESSE |
6J8-85410-00-00 |
from US $37.86 |
||
|
28
|
28
6E5-82588-00-00 Plate |
6E5-82588-00-00 |
from US $5.67 |
||
|
29
|
29
95895-06016-00 Bolt, Flange |
95895-06016-00 |
US $1.07 |
||
| replacements | |||||
|
29
|
29
958-80060-16-00
Bolt, Flange
|
958-80060-16-00 |
— | ||
|
29
|
29
95D95-06016-00 Bolt, Flange Deep Re |
95D95-06016-00 |
from US $1.07 |
||
|
29
|
29
95814-06016-00 Bolt, Flange |
95814-06016-00 |
from US $1.35 |
||
