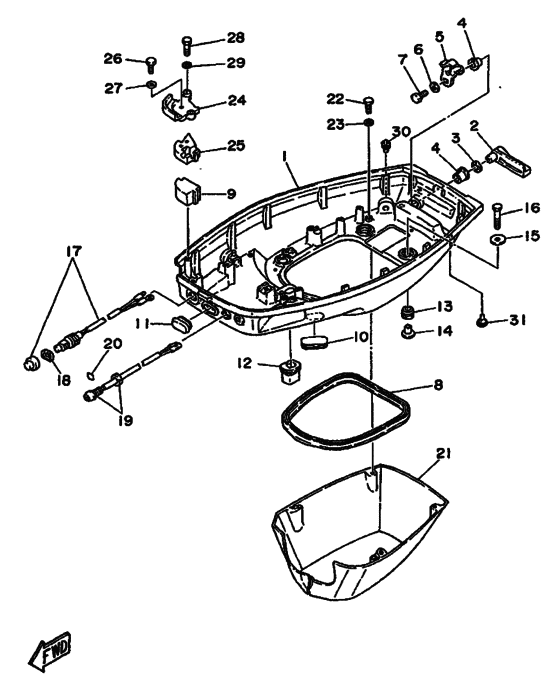

Bottom cowling Diagram Yamaha 40 M(E/O)S/L
- Year
- 1986
- Model
- 40H
- Model code
- 6H4
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H4-42711-01-EJ
Cowling, Bottom
|
6H4-42711-01-EJ |
— | ||
| replacements | |||||
|
1
|
1
6H4-W4271-01-EJ
Cowling, Bottom
|
6H4-W4271-01-EJ |
— | ||
|
1
|
1
6H4-W4271-00-EJ
Bott0M, Cowling
|
6H4-W4271-00-EJ |
— | ||
|
2
|
2
6H4-42815-00-00 Lever, Clamp |
6H4-42815-00-00 |
from US $17.01 |
||
|
3
|
3
902-06120-52-00 Washer, Wave |
902-06120-52-00 |
from US $2.36 |
||
|
4
|
4
90386-12069-00 Bush |
90386-12069-00 |
from US $1.84 |
||
|
5
|
5
6H4-42816-00-00 Lever, Clamp |
6H4-42816-00-00 |
from US $8.08 |
||
|
6
|
6
90201-06068-00 Washer, Plate |
90201-06068-00 |
US $2.98 |
||
| replacement | |||||
|
6
|
6
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
7
|
7
97313-06010-00 Bolt, Hexagon |
97313-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
7
|
7
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
8
|
8
6H4-42716-00-00 Rubber, Seal 1 |
6H4-42716-00-00 |
US $12.33 |
||
|
9
|
9
6H4-42724-00-00 Grommet |
6H4-42724-00-00 |
from US $9.78 |
||
| replacement | |||||
|
9
|
9
6H4-42724-01-00 Grommet |
6H4-42724-01-00 |
from US $9.78 |
||
|
10
|
10
6H4-42726-00-00 Grommet |
6H4-42726-00-00 |
US $3.68 |
||
|
11
|
11
6M3-42727-00-00
Grommet
|
6M3-42727-00-00 |
— | ||
|
12
|
12
682-42727-00-00 Grommet |
682-42727-00-00 |
US $6.80 |
||
|
13
|
13
90480-09M21-00 Grommet |
90480-09M21-00 |
from US $2.70 |
||
|
14
|
14
90387-06M41-00 Collar |
90387-06M41-00 |
from US $3.72 |
||
|
15
|
15
90201-06416-00 Washer, Plate |
90201-06416-00 |
from US $2.69 |
||
|
16
|
16
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
16
|
16
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
17
|
17
689-82550-01-00 Engine Stop Switch Assy |
689-82550-01-00 |
US $28.62 |
||
| replacement | |||||
|
17
|
17
6A0-82550-01-00 Engine Stop Switch Assembly |
6A0-82550-01-00 |
from US $17.18 |
||
|
18
|
18
6H4-82537-00-00
Attachment, Stop Switch
|
6H4-82537-00-00 |
— | ||
|
19
|
19
6H4-85411-00-00 Bracket, Signal Light |
6H4-85411-00-00 |
from US $49.21 |
||
|
20
|
20
6H4-85415-00-00
Mark, Signal Lamp
|
6H4-85415-00-00 |
— | ||
|
21
|
21
6H4-42741-20-00
Apron
|
6H4-42741-20-00 |
— | ||
|
22
|
22
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
22
|
22
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
22
|
22
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
23
|
23
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
24
|
24
6H4-48531-00-94 Bracket, Remote Control 1 |
6H4-48531-00-94 |
US $30.40 |
||
|
25
|
25
6H4-48532-00-94
Bracket, Remote Control 2
|
6H4-48532-00-94 |
— | ||
|
26
|
26
973-13050-16-00
Bolt, Hexagon
|
973-13050-16-00 |
— | ||
|
27
|
27
929-03056-00-00
Washer, Plate
|
929-03056-00-00 |
— | ||
| replacement | |||||
|
27
|
27
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
28
|
28
97313-06020-00 Bolt, Hexagon |
97313-06020-00 |
US $1.56 |
||
| replacement | |||||
|
28
|
28
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
29
|
29
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
29
|
29
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
30
|
30
6E5-44391-00-00 Nipple, Hose |
6E5-44391-00-00 |
from US $5.10 |
||
|
31
|
31
6H4-42748-00-00 Grommet |
6H4-42748-00-00 |
US $1.98 |
||
